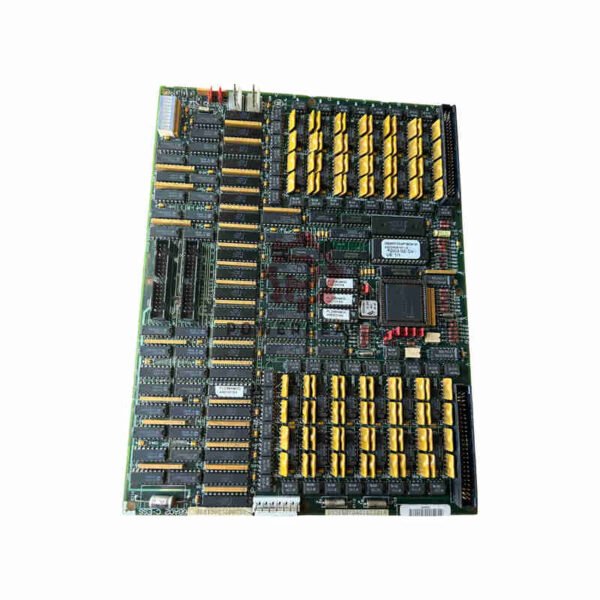

Digital I/O Board for Turbine Control Systems
The DS200TCDAG1BDB by General Electric delivers reliable digital input/output control for Mark V Speedtronic systems. This advanced board manages contact inputs and relay outputs with precision. It supports triple modular redundant configurations for maximum reliability.
Technical Specifications
- Manufacturer: General Electric (GE)
- Model: DS200TCDAG1BDB
- Series: Mark V Speedtronic
- Board Type: Digital I/O Board
- Power Supply: +5V DC, 6A
- Relay Channels: 12 independent channels
- Operating Voltage: 28V DC
- Temperature Range: -30°C to +65°C
- Dimensions: 15.9 cm x 17.8 cm
- Mounting: DIN-rail compatible
- Technology: Surface mount design
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL
Hardware Configuration
- J1-J8 Jumpers: Hardware configuration options
- J4-J6: IONET addressing (factory settings)
- J7: Stall timer enable
- J8: Test mode activation
- LED Panel: Status indication
- Multiple Connectors: JP, JQ, JR, JO1, JO2, JX1, JX2
Application Areas
- Industrial gas turbine control
- Steam turbine management
- Triple modular redundant systems
- Mark V Speedtronic installations
- Digital contact input/output processing
Connector Functions
- JP: Power distribution from TCPS board
- JQ: DTBA board contact input signals
- JR: DTBB board contact input signals
- JO1/JO2: Relay/solenoid output signals
- JX1/JX2: IONET communication signals
Installation Guide
- Mount on DIN-rail in designated core
- Connect power supply cables properly
- Configure jumpers according to requirements
- Verify all connector connections
- Test input/output functionality
- Refer to GEI-100182B manual for details
Frequently Asked Questions
- What is the primary function of the DS200TCDAG1BDB board?
- It serves as a digital I/O interface for contact inputs and relay outputs in Mark V systems.
- How many relay channels does this board support?
- The board provides 12 relay channels for comprehensive control applications.
- What is the purpose of the IONET jumpers?
- Jumpers J4-J6 configure IONET addressing and should remain at factory settings.
- Can this board work in redundant systems?
- Yes, it supports triple modular redundant configurations for critical applications.
- What power supply does the board require?
- It operates on +5V DC with 6A current capacity.
