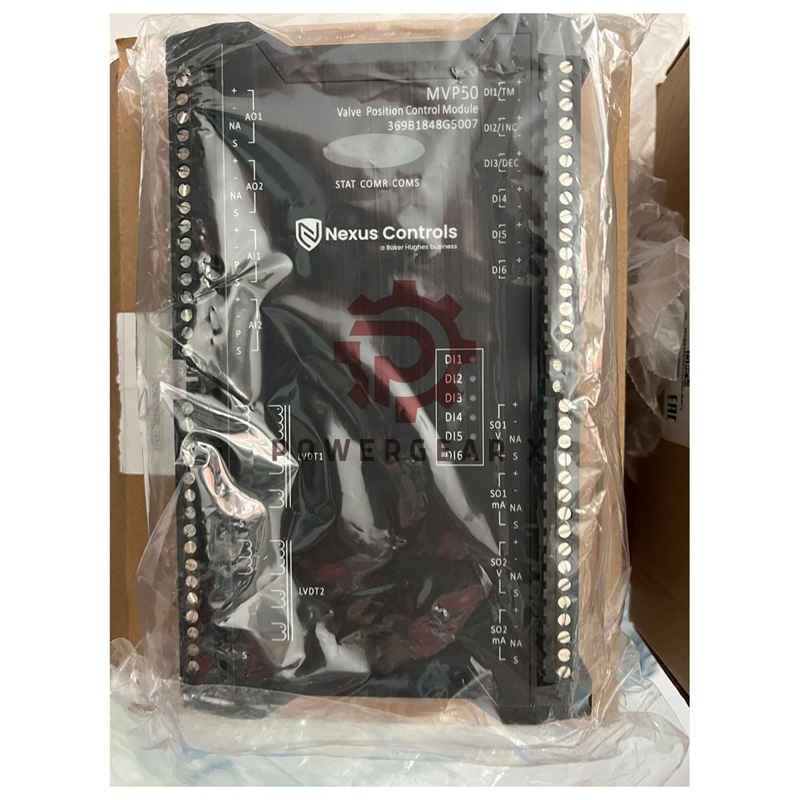

369B1848G5007 GE Nexus Valve Position Control Module MVP50
Advanced valve control module with dual LVDT inputs and servo outputs for precise industrial automation.
Core Specifications
| LVDT Channels | 2 channels (3/6-wire) |
| Analog Inputs | 2 channels (0-20mA, 0-5V, ±10V) |
| Servo Outputs | 2 channels (±40mA, ±10V) |
| Analog Outputs | 2 channels (0-5V) |
| Digital Inputs | 6 channels |
| Filter Settings | 3-50ms adjustable |
| Isolation Rating | 500VAC channel to ground |
| Power Consumption | 3.7W typical, 10.7W max |
System Performance
- Intel 1.66 GHz 64-bit processor
- 1GB DDR2 memory, 2GB flash storage
- 1Gbps redundant Ethernet networks
- 40ms fast scan cycle
- 48 module maximum capacity
- 0-60°C operating temperature
- Dual 24VDC power inputs
- QNX real-time operating system
Key Benefits
- Precise valve position control
- Wire break detection for LVDTs
- Adjustable excitation frequency
- Channel fault monitoring
- Redundant network connections
- LED status indicators
- CE certification included
Service Information
- 12 Month Warranty Coverage
- Express Shipping: FedEx, UPS, DHL
- Technical Support Included
- Global Delivery Available
Contact Our Team
Phone: +86 18030005825
Email: sales@powergearx.com
Technical Questions
- What types of valves work with this module?
- Compatible with control valves using LVDT position feedback and requiring servo control signals.
- How is the LVDT excitation adjusted?
- Frequency and amplitude settings are configured through software parameters during setup.
- Can both servo output types be used simultaneously?
- Each channel supports either current or voltage mode, selectable per application requirements.
- What causes servo output fault detection?
- Typically wiring issues, overload conditions, or feedback signal problems trigger fault detection.
- How many control pages can be configured?
- Maximum 999 configuration pages available for complex valve control strategies.
