Product details
Overview

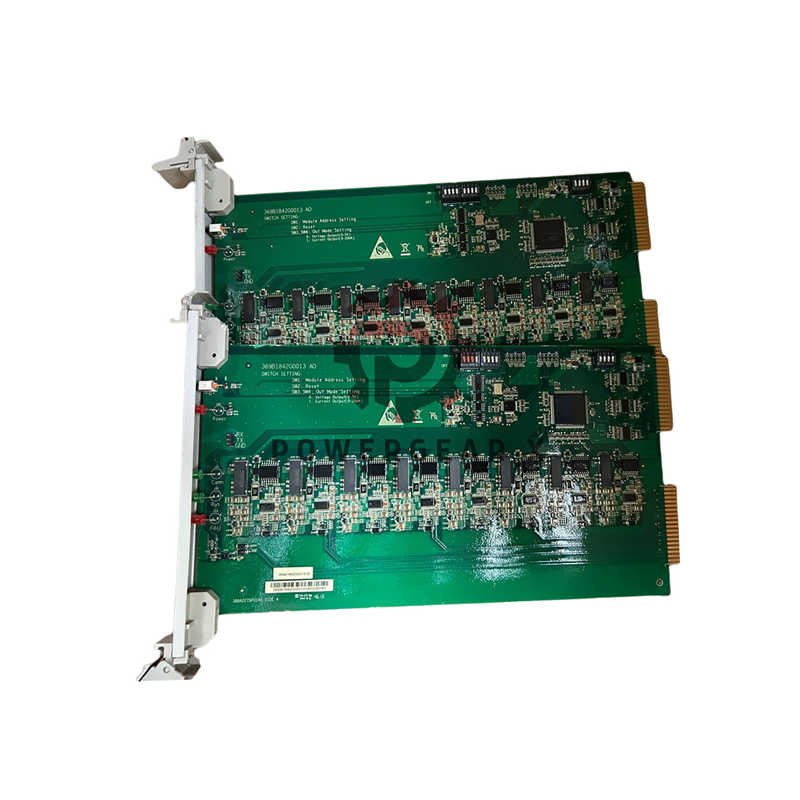

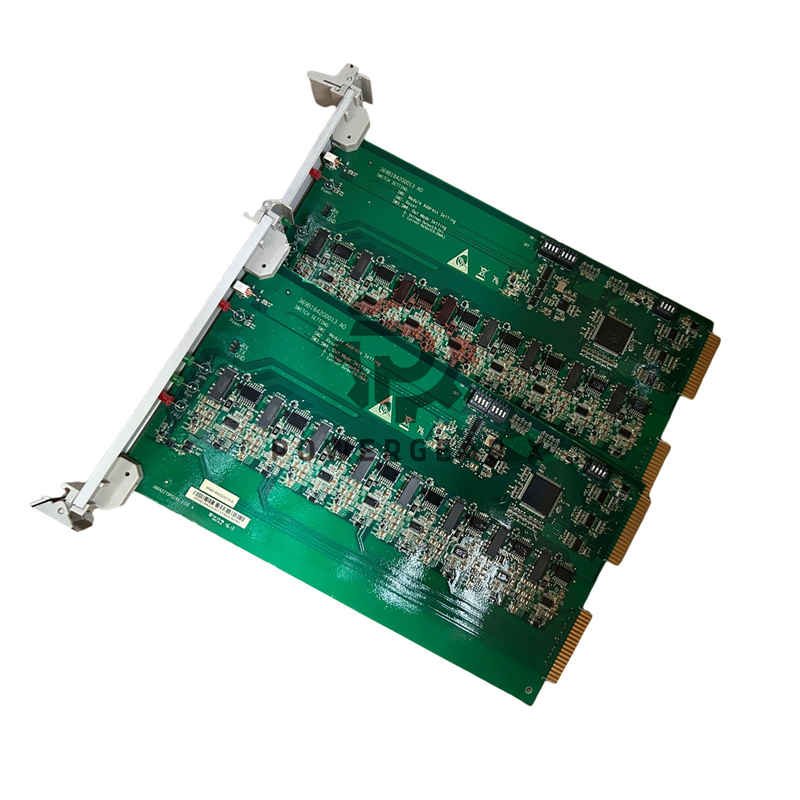

The GE Nexus 369B1842G0013 delivers stable analog signals for industrial systems.
Key Features
- Protected 24VDC (±25%) input supports reliable operation.
- Durable aluminum housing with IP20 protection improves heat handling.
- Built‑in RTC (RTC146818 type) ensures accurate timing.
- Status LEDs show temperature and key system states.
Technical Specifications
- Brand: GE; Series: Nexus; Model: 369B1842G0013.
- Power input: 24VDC ±25% with protection.
- Temp sensor range: ‑15°C to +105°C.
- Size: 192 × 116 × 79 mm.
- High‑precision timer and multi‑IO hub support.
Performance
- Stable output accuracy under strong EMI conditions.
- Consistent response and resolution for automation needs.
- Good linearity across the full temperature range.
- Strong mechanical durability for harsh sites.
Installation Guide
- Confirm power and wiring before placing the module.
- Mount the card firmly to avoid vibration faults.
- Use proper grounding to reduce interference.
- Route cables cleanly to avoid signal noise.
- Check LED status after applying 24VDC.
Packing List
- One GE Nexus 369B1842G0013 output card.
- Quick start guide.
- Terminal labels.
- Anti‑static packaging.
- Mounting accessories.
Shipping
- Fast delivery via FedEx, UPS, or DHL.
- Shock‑protected packaging for safe transport.
- Express options available for urgent needs.
FAQ
- Q: How do I confirm power readiness?
A: Measure supply voltage and match the 24VDC range. - Q: What temperature range works best?
A: Keep the environment within rated limits for stable output. - Q: How can I reduce wiring noise?
A: Use shielded cables and ground at one end. - Q: Should I replace the card with power on?
A: Power down before replacing to avoid faults. - Q: What checks help during startup?
A: Review wiring, LEDs, and output readings.
