Product details
Product Highlights
- Brand: General Electric (GE)

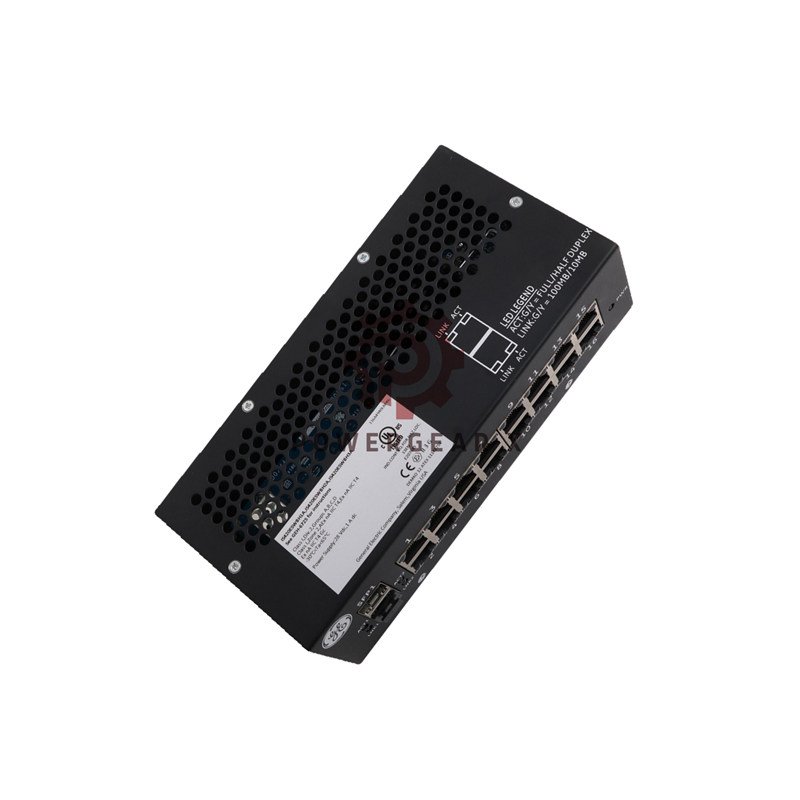

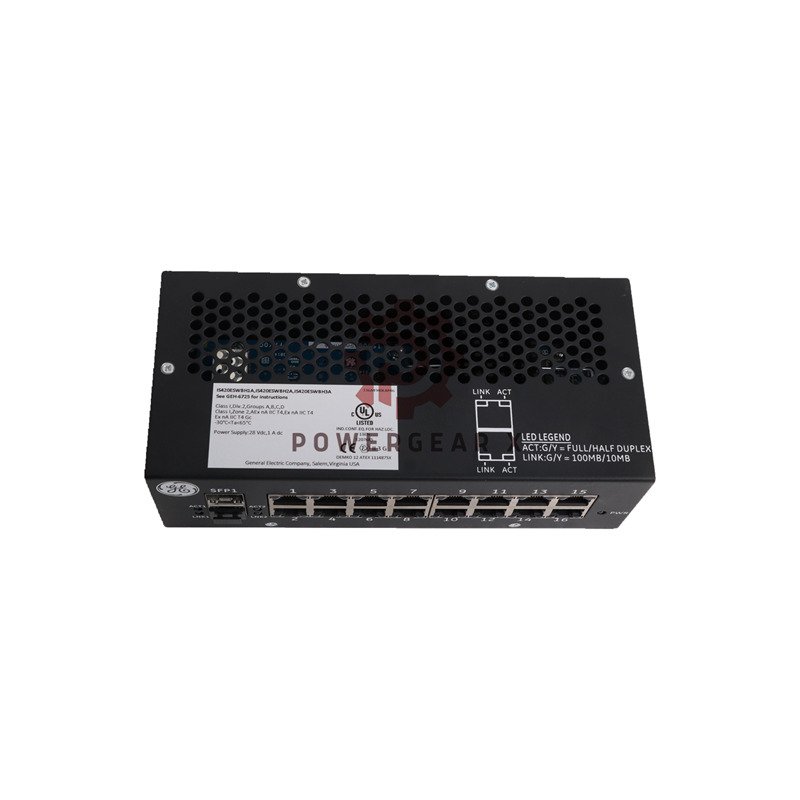

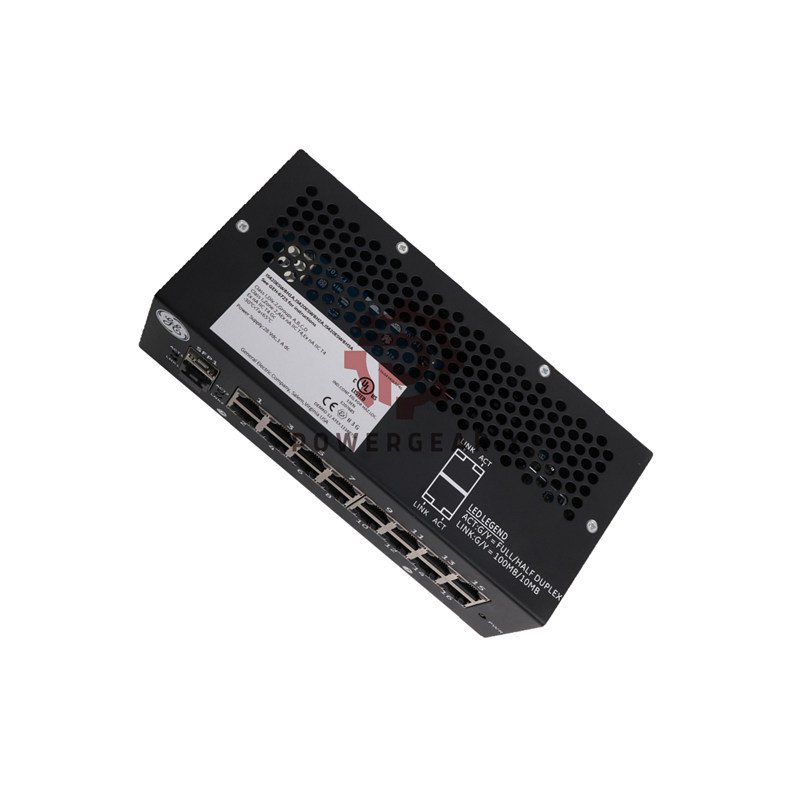

- Model: IS420ESWBH3A
- Series: Mark VIe / Mark VIeS Control Systems
- Condition: New & Original with Factory Packing
- Warranty: 12 Months
- Fast Shipping via FedEx, UPS, or DHL
- Author: Powergear X Automation
Technical Specifications
- Part Number: IS420ESWBH3A
- Ethernet Ports: 16 × 10/100Base-TX copper RJ-45 ports
- Fiber Ports: None
- Power Input: +18 to +32 VDC (dual redundant)
- Memory: 256 MB DDR SDRAM
- Buffer: 256 KB minimum, 4K MAC address capacity
- OS: QNX Neutrino real-time operating system
- Dimensions: 138 × 86 × 56 mm
- Weight: 2 lb (0.9 kg)
- Operating Temp: -40°C to +70°C
- Humidity: 5%–95% non-condensing
- Cable Type: Cat 5e UTP with RJ-45 connectors
- Cooling: Convection
- Mounting: DIN-rail or panel
Performance and Compatibility
- Supports IEEE 802.3, 802.3u, and 802.3x standards.
- Auto-negotiation for full or half duplex modes.
- HP-MDIX auto-sensing simplifies cable setup.
- LED indicators show link, activity, speed, and power.
- High reliability for GE Mark VIe and Mark VIeS turbine systems.
Product Advantages
- Fast network switching with low packet delay.
- DIN-rail mount allows easy integration in control cabinets.
- Redundant DC input ensures continuous uptime.
- Compact and lightweight for tight control panels.
- Designed for industrial turbines — gas, steam, and wind systems.
Function and Design
- Industrial-grade Ethernet switch for GE turbine automation.
- Acts as a Level 1 switch, buffering multicast and broadcast packets.
- Built to handle one packet per port with reliable buffering.
- Fully compatible with ControlST V04.03.18C software.
Installation and Operation
- Mount using DIN-rail clips 259B2451BVP1 or 259B2451BVP4.
- Panel mount is also supported for flexible layout.
- Ensure enough space for airflow during installation.
- Power LED and link indicators show real-time network status.
Additional Technical Data
- Uplink Port: 100 Mbps FX uplink
- Switch Capacity: 3.2 Gbps non-blocking
- Forwarding Rate: 2.4 Mpps (64-byte packets)
- MTBF: > 250,000 hours
- EMC Compliance: EN55022 / IEC 61000-6-2
- Vibration Resistance: IEC 60068-2-6 standard
FAQ
- Q: What is the main purpose of the IS420ESWBH3A?
A: It connects control modules and turbine systems through industrial Ethernet networking. - Q: Can I use fiber connections with this model?
A: No, it supports only copper RJ-45 ports with no fiber capability. - Q: How do I mount this switch?
A: You can use DIN-rail clips or panel mounts for flexible installation. - Q: What type of cables are required?
A: Use Cat 5e UTP cables with RJ-45 connectors for all ports. - Q: What does the LED color mean?
A: Yellow = 10 Mbps link, Green = 100 Mbps link, No light = no link.
