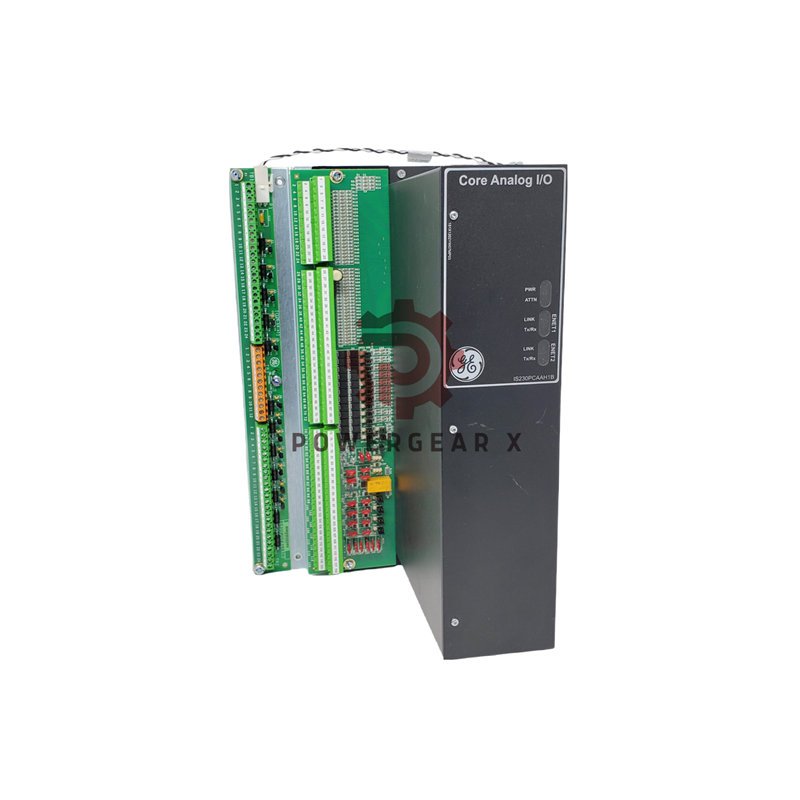

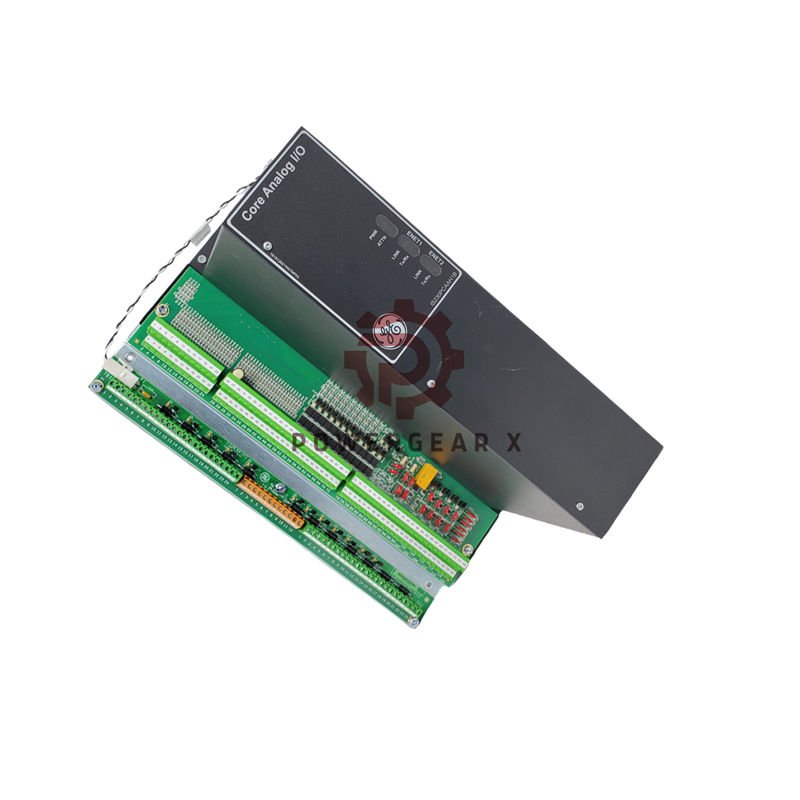

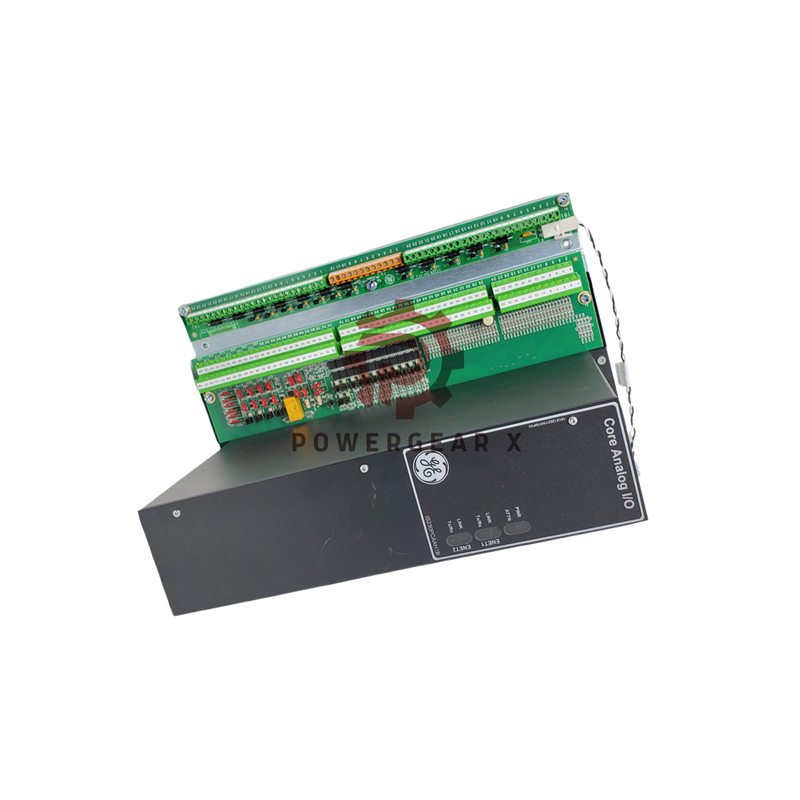

General Electric IS230PCAAH1B Mark VIe Core Analog I/O Module
The IS230PCAAH1B Core Analog I/O module provides accurate analog signal processing for turbine control systems. Designed by General Electric as part of the Mark VIe Series, this I/O module ensures precise measurement, reliable excitation, and stable servo control in demanding industrial environments.
Technical Specifications (Key Parameters)
- Brand: General Electric (GE)
- Model: IS230PCAAH1B
- Series: Mark VIe
- Product Type: Core Analog I/O Module
- Number of Inputs: 25
- Number of Outputs: 4–20 mA
- Analog Input Accuracy: ±0.50% (0–10 V DC)
- LVDT Excitation Monitor: ±1.00%
- Servo Driver Output: ±3.50%
- Power Supply Input Voltage: 28Vdc ±5%
- Dimensions: 33.02 cm (H) × 17.8 cm (W)
- Technology: Surface-Mount
- Operating Temperature: -30°C to 65°C
- Origin: U.S.A
- Manual: GEH-6721L
- Availability: In Stock
Functional Overview
- The IS230PCAAH1B supports thermocouple, 4–20 mA, seismic, and LVDT inputs for turbine control.
- Includes pulse rate and servo coil outputs for actuator control and feedback loops.
- Compatible with simplex, dual, and TMR system architectures within the Mark VIe network.
- Dual RJ45 Ethernet ports support 10/100 Mbps connectivity for flexible IONet integration.
- Operates at 40 ms and 10 ms frame rates for precise data acquisition and deterministic control.
Installation Instructions
- Securely mount the PCAA module within the control cabinet.
- Connect the P4 port to the JGPA power connector for 24 V field power.
- Attach two 68-pin cables to P1 and P2 for connection with the TCAT terminal board.
- Finger-tighten screws to ensure proper cable grounding and signal integrity.
- For dual network connections, connect ENET1 to the R controller’s network.
- Verify power (P5) and Ethernet indicator LEDs after applying 28Vdc input.
- Ensure all JGPA shield terminals are properly grounded to maintain EMC compliance.
Module Composition
- Contains two I/O boards, one terminal board, and one shared processor board.
- 120 Euro-style terminals provide easy wiring and maintenance access.
- Includes watchdog timer, local power sequencing, and temperature sensors.
- Each PCAA module is treated as a complete replaceable unit for simplicity.
Packing List
- 1 × GE IS230PCAAH1B Core Analog I/O Module
- 2 × 68-pin signal cables (if TCAT board used)
- 1 × JGPA Power Board with grounding terminals
- 1 × Printed Installation Manual GEH-6721L
- 1 × Protective Industrial Packaging
Shipping & Delivery
- Ships worldwide via FedEx, UPS, or DHL.
- All orders include tracking and delivery confirmation.
- Expedited service options available for time-critical projects.
FAQ
- Q: What does the IS230PCAAH1B control?
A: It manages analog signal processing, LVDT, servo, and current loop control for gas turbines. - Q: Can this module operate in TMR systems?
A: Yes, it supports simplex, dual, and TMR configurations with network redundancy. - Q: How do I ensure correct grounding?
A: Connect JGPA shield terminals to chassis ground or dedicated shield ground per installation manual.
