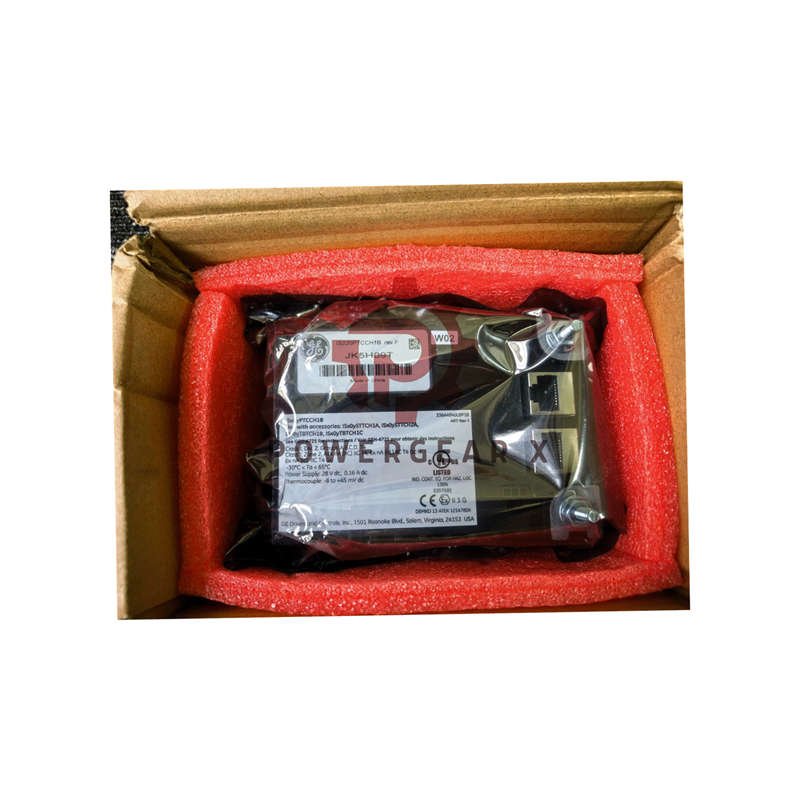

GE Mark VIe IS220PTCCH1B Thermocouple Input Module
The IS220PTCCH1B provides precise temperature monitoring for gas turbine control systems. This advanced I/O pack handles multiple thermocouple types with reliable performance. It ensures accurate temperature readings in critical industrial applications.
Technical Specifications
- Manufacturer: General Electric
- Model Number: IS220PTCCH1B
- Product Series: Mark VIe Speedtronic
- Module Type: Thermocouple Input I/O Pack
- Input Channels: 12 combustion-optimized inputs
- Cold Junctions: 1 integrated reference junction
- Input Range: -8 mV to +45 mV
- Power Supply: 28 VDC, 0.16 Amps
- Max Cable Resistance: 450 ohms
- Max Distance: 984 feet (300 meters)
- Thermocouple Types: E, J, K, S, T (grounded/ungrounded)
- Redundancy Support: Simplex, Duplex, Triple Modular
- Application: Gas Turbine Control Systems
- Warranty: 12 Months Quality Assurance
- Shipping: FedEx, UPS, DHL Express Available
Supported Thermocouple Types
- Type E (Nickel-Chromium/Constantan)
- Type J (Iron/Constantan)
- Type K (Nickel-Chromium/Nickel-Aluminium)
- Type S (Platinum/Rhodium-10%)
- Type T (Copper/Constantan)
- Millivolt inputs (-8mV to +45mV)
Installation Advantages
- Easy integration with Mark VIe control systems
- Flexible mounting in standard I/O panels
- Simple wiring with clear terminal identification
- Low power consumption for energy efficiency
- Compact design saves panel space
Technical Support Questions
- What types of thermocouples does this module support?
- The IS220PTCCH1B supports types E, J, K, S, and T thermocouples, plus mV inputs from -8 to 45 mV.
- How many temperature inputs can it handle?
- This module provides 12 dedicated thermocouple input channels plus one cold junction reference.
- What is the maximum cable length supported?
- Thermocouples can be located up to 984 feet from the turbine I/O panel with proper cable.
- Can I use both grounded and ungrounded thermocouples?
- Yes, the module accepts both grounded and ungrounded thermocouple configurations.
- What power supply does this module require?
- It operates on 28 VDC with a current draw of approximately 0.16 Amps.
