GE IS215VPROH2BC Turbine Protection Board | Mark VI Emergency Trip System

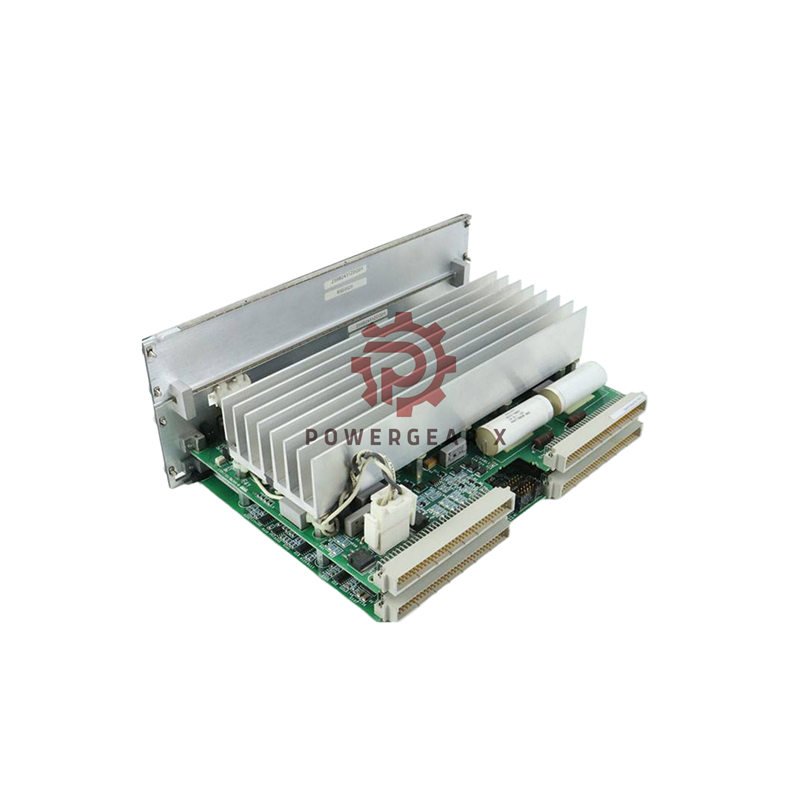

GE IS215VPROH2BC Turbine Protection Board – Mark VI Series

Inquiries:
📧 sales@powergearx.com
📱 WhatsApp +86 18030005825

Key Technical Data

• Part Number: IS215VPROH2BC
• Product Type: Turbine Protection / Emergency Trip Board
• Manufacturer: General Electric (USA)
• Series: Mark VI
• Power Supply Input: 125 VDC
• Internal Voltages: 5 VDC, 28 VDC
• Operating Temperature: 0°C to 60°C
• Frame Rate: Up to 100 Hz
• MPU Pulse Range: 2 Hz to 20 kHz
• Response Time: 0.1 sec (solenoids)
• Trip Solenoids: Six per VPRO (three per TREG)
• MPU Sensitivity: 27 mV peak at 2 Hz
• Redundancy: Simplex / TMR (X, Y, Z sections)
• Protection Level: NEMA Class E
• Fuse Rating: Max 15 A

Main Functional Highlights

• Triple Redundant Protection: Independent X, Y, Z processors maintain system safety.
• Fast Emergency Response: Solenoid activation within 0.1 seconds.
• Independent Power Design: Each board includes 5 VDC & 28 VDC outputs for stability.
• Ethernet IONet Communication: Real-time data exchange with control modules.
• Secure Overspeed & E-Stop: Dedicated trip response for critical turbine events.
• High Reliability Relays: 12 relay groups with voting logic enhance redundancy.
• Simplified Architecture: Direct link between VPRO, TREG, and TSVO boards.

Unique Selling Points

• ✅ Designed for critical turbine protection
• ✅ Supports Simplex and TMR redundancy
• ✅ Rapid response time for emergency trip
• ✅ Compatible with GE Mark VI systems
• ✅ Integrated Ethernet-based IONet link
• ✅ Dual power output for improved reliability
• ✅ Backed by a 12-Month Warranty

Package & Shipping

• Package Includes: IS215VPROH2BC Turbine Protection Board + Test Report + Warranty Certificate
• Shipping Methods: FedEx, UPS, DHL
• Availability: In Stock – Ready to Ship Worldwide

Warranty & Support

• Warranty Period: 12 months
• Technical Support: sales@powergearx.com
• Fast Replacement Policy: Replacement available within warranty period

Comparable Models

• GE IS210BAPAH1A Analog Processor Module
• GE IS200LSGIH1A Gating Interface Module

Professional FAQ

• Q1: What does the IS215VPROH2BC board do in the Mark VI system?
  It manages turbine emergency trip and overspeed protection while communicating with TREG and TPRO boards.
• Q2: Can this board be used in both gas and steam turbines?
  Yes, it supports gas, steam, and wind turbine applications.
• Q3: What is the difference between TREG and TPRO?
  TREG handles emergency trip functions, while TPRO focuses on overspeed protection.
• Q4: How is redundancy managed in IS215VPROH2BC?
  It uses three independent sections (X, Y, Z) to ensure uninterrupted protection even if one fails.
• Q5: What communication protocol does this board support?
  It supports Ethernet-based IONet communication for synchronization and data exchange.
