GE IS215ACLEH1B Application Control Layer Module – Mark VI Systems

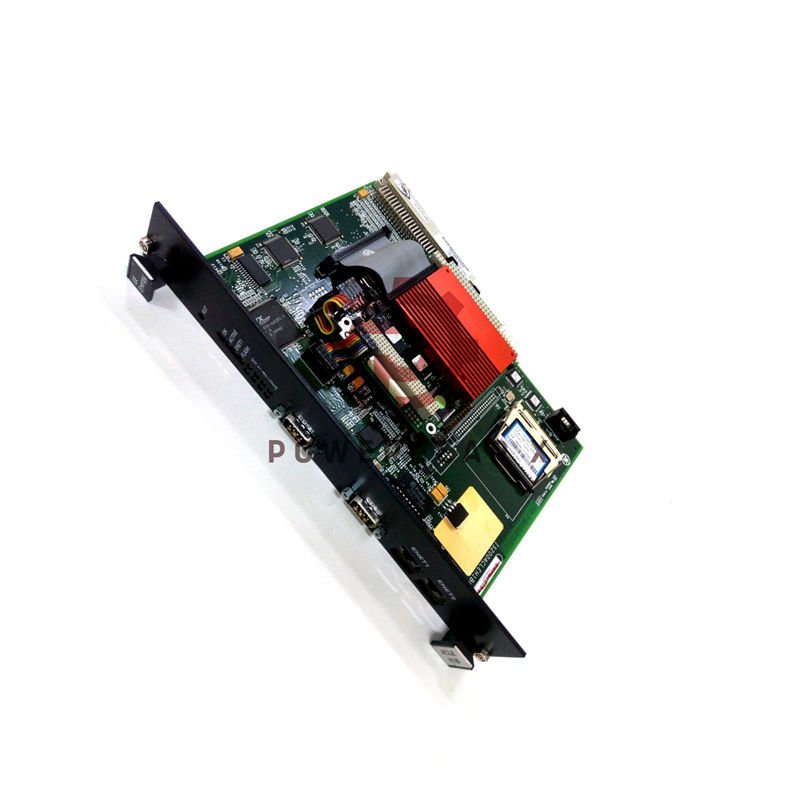

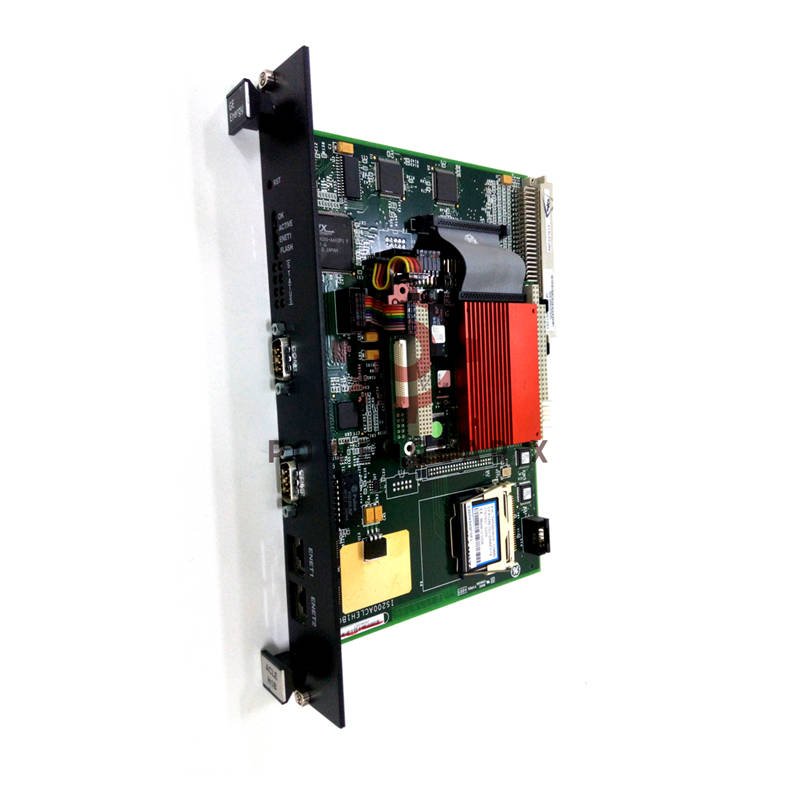

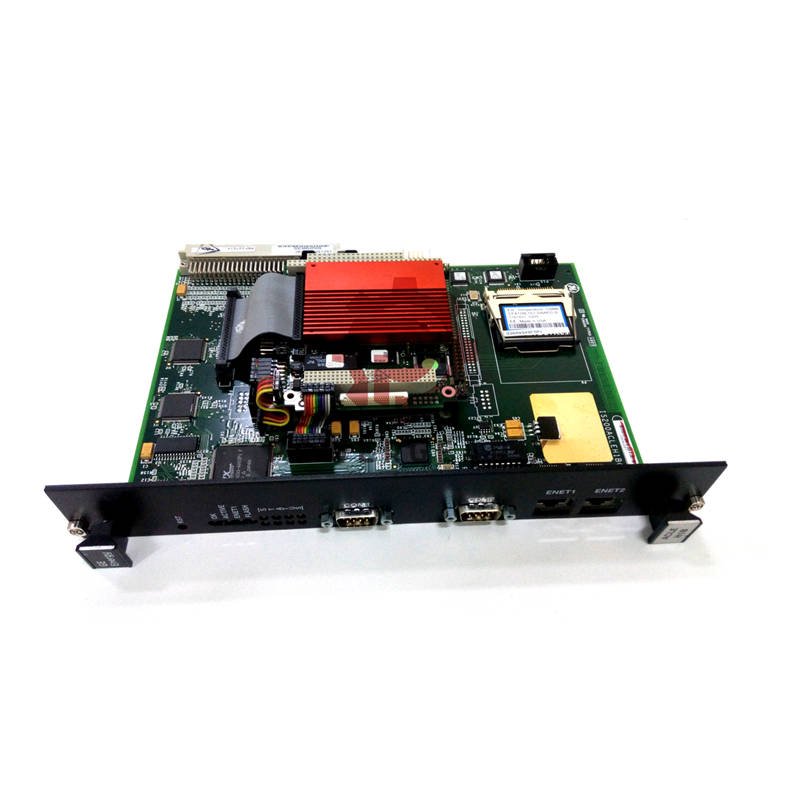

GE IS215ACLEH1B Application Control Layer Module

The IS215ACLEH1B from General Electric serves as the intelligent core for Mark VI turbine control systems. This advanced safety I/O pack delivers reliable performance for critical industrial applications.

Technical Specifications

• Model: IS215ACLEH1B (Revision H1B)
• Manufacturer: General Electric
• System Series: Mark VI Speedtronic
• Input Voltage: 125 V DC
• Output Voltage: 24 V DC
• Operating Temperature: -30°C to +65°C
• Cache Memory: 128 KB Level 2 cache
• Communication: Ethernet 10baseT (RJ45)
• Mounting: DIN-rail installation
• Board Dimensions: 23.495 cm × 10.795 cm
• Weight: 1 lb 4 oz (0.57 kg)
• Processor: Microprocessor-based with PCI controller

Advanced Features

• Non-volatile flash memory for data retention
• Online application configuration loading capability
• I/O points and internal Booleans forcing functionality
• Integration with SCADA systems for comprehensive monitoring
• Cybersecurity measures for system protection

System Integration

• Occupies two half-slots in EX2100 exciter board racks
• Ethernet connection using IRQ 5 initialized by BIOS
• PCI controller manages inputs, outputs, and memory functions
• Compatible with ISBus and Ethernet communication networks
• Remote monitoring and control capabilities

Package Contents

• IS215ACLEH1B control layer module
• DIN-rail mounting hardware
• Technical documentation
• 12-month product warranty
• Express shipping via FedEx, UPS, DHL

Technical Questions

• What communication protocols does it support?

• It supports Ethernet 10baseT and ISBus communication networks.

• How much cache memory is available?

• The module features 128 KB Level 2 cache memory.

• What software features are included?

• Includes non-volatile flash memory and online configuration loading.

• Can it handle remote monitoring?

• Yes, it facilitates remote monitoring and control capabilities.

• What safety features are implemented?

• Emergency shutdowns, fault detection, and cybersecurity measures.

For technical support on the IS215ACLEH1B, contact sales@powergearx.com or +86 18030005825.
