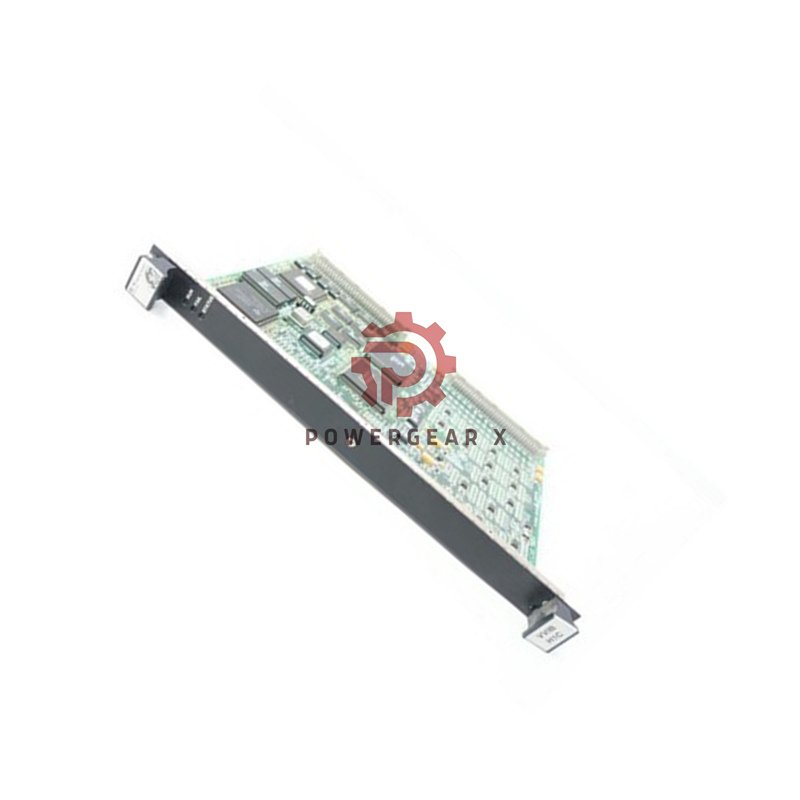

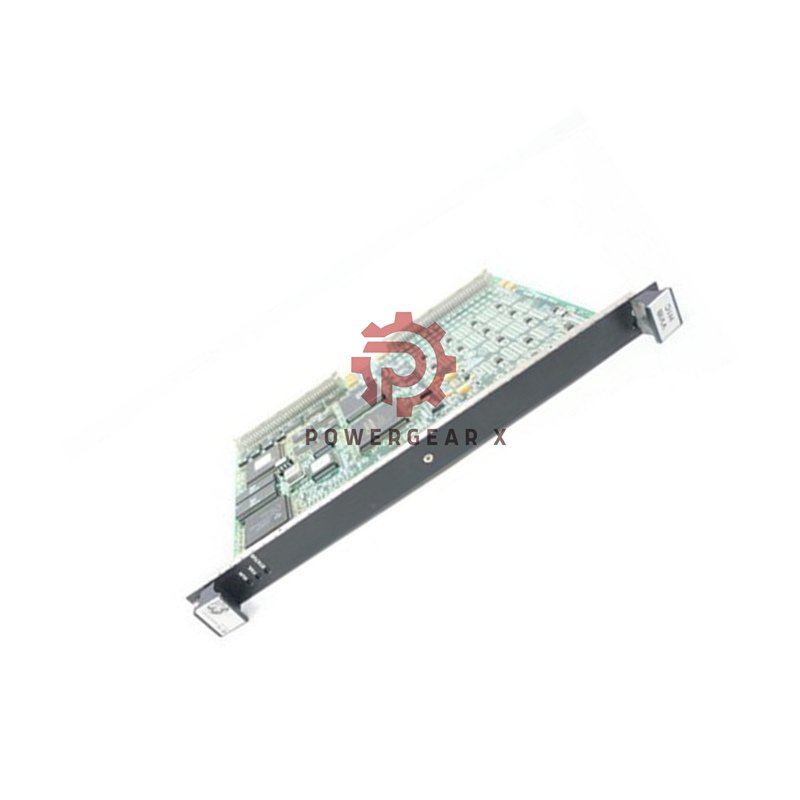

GE IS200VVIBH1CAB VME Vibration Board – Mark VI Control System
Part No.: IS200VVIBH1CAB
Manufacturer: General Electric (GE)
Series: Mark VI Speedtronic
Function: VME Vibration Processing Board
Country of Origin: United States (USA)
Dimensions: 33.0 cm (H) × 17.8 cm (W)
Channels: 26 channels total
Coating: Conformal PCB Protection
Warranty: 12 Months
Shipping: FedEx, UPS, DHL Worldwide
Availability: In Stock
🌐 Product Overview
The GE IS200VVIBH1CAB is a high-performance vibration monitor board used in GE Mark VI turbine systems. It processes vibration and position data from multiple probes, ensuring accurate, real-time turbine protection and performance analysis. The board connects directly with TVIB or DVIB terminal boards and supports integration with Bently Nevada 3500 systems.
🔧 Key Features
- Processes up to 14 vibration probe signals
- Compatible with Bently Nevada Proximity, Velocity, Acceleration, and Seismic probes
- 16-bit A/D converter with 14-bit effective resolution
- Buffered output with ±0.1% amplitude accuracy
- Sampling rate: 4,600 samples/sec (high-speed), 2,586 samples/sec (low-speed)
- Supports real-time data transmission over VME bus
- Probe supply voltage: -24 V DC (from -28 V DC bus)
- Transducer load current: 12 mA each
- Triple Modular Redundant (TMR) system compatible
- LED indicators for signal and system status
🌡 Probe Compatibility
- Proximity Probes: Detect shaft radial displacement and eccentricity
- Velocity Probes: Measure shaft motion speed and direction
- Acceleration Probes: Monitor sudden acceleration and impact
- Seismic Probes: Record ground or structural vibration
- Phase Probes: Measure vibration phase angle differences
⚙️ Technical Parameters
- Power Supply: -28 V DC stepped to -24 V DC
- Input Signal Type: Differential analog signals
- Signal Range: ±10 V input
- Input Impedance: 10 kΩ
- Sampling Window: 160 ms synchronized acquisition
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +85°C
- Humidity Tolerance: 5% – 95% non-condensing
- Shock Resistance: 30 g peak, 11 ms duration
- Vibration Endurance: 1.5 g, 10–500 Hz
🧩 Rated RPM Configuration
- Above 4,000 RPM: 8 vibration channels + position monitoring
- Below 4,000 RPM: 16 vibration channels + additional probe inputs
🌍 Compatible Models (for Comparison)
🌳 Suffix Structure
- H1: Hardware Revision 1
- C: Primary Functional Revision C
- A: Secondary Functional Revision A
- B: Artwork Revision B
💡 Product Advantages
- ✅ High sampling accuracy for turbine vibration diagnostics
- ✅ Conformal coating ensures long-term protection
- ✅ Real-time vibration data via VME bus for Mark VI controllers
- ✅ Seamless integration with GE and Bently Nevada monitoring systems
- ✅ 12-month warranty with full technical support
📦 Package & Shipping
- Each board is ESD-protected and packed in anti-static wrapping
- Shipped via FedEx, UPS, or DHL with tracking
- Delivery time: 5–7 business days worldwide
📞 Contact Information
For inquiries, email: sales@powergearx.com
WhatsApp: +86 18030005825
❓ Frequently Asked Questions (FAQ)
- Q1: What is the IS200VVIBH1CAB used for?
- A: It processes turbine vibration data for Mark VI systems, ensuring accurate monitoring and protection.
- Q2: Which probe types are supported?
- A: It supports proximity, acceleration, seismic, and phase probes, including Bently Nevada models.
- Q3: Can it work with the Mark VIe system?
- A: Yes, with configuration adjustments, it can integrate via VME communication for extended data processing.
- Q4: What sampling rates does it use?
- A: 4,600 samples/sec for high-speed turbines and 2,586 samples/sec for lower-speed or multi-probe setups.
- Q5: How long is the product warranty?
- A: Powergear X Automation provides a full 12-month warranty covering parts and service.
