Product details
Overview

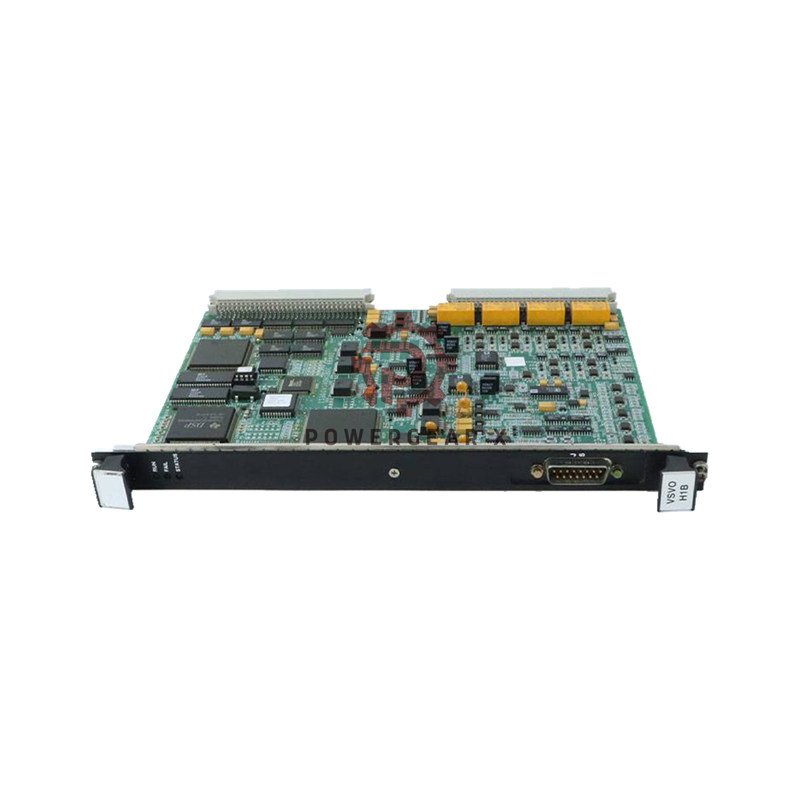

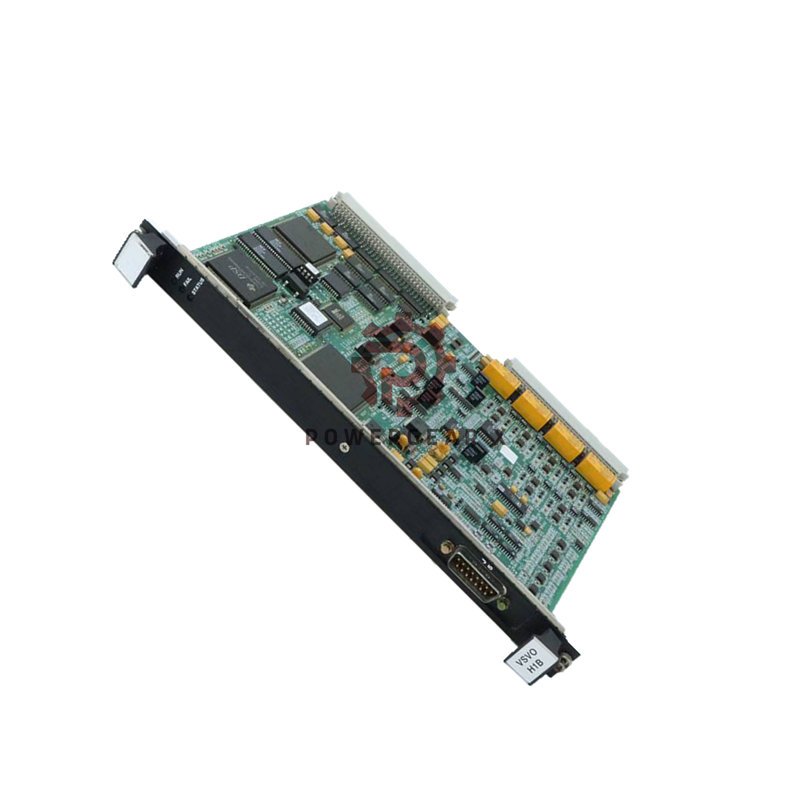

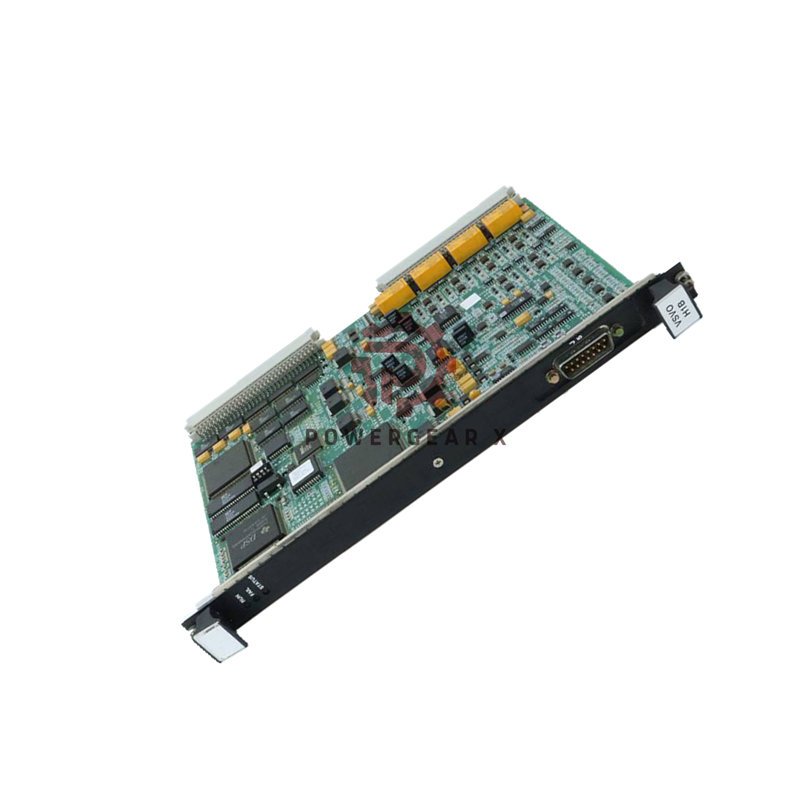

The GE IS200VSVOH1BDC is a servo control board used in the Mark VI Turbine Control System. It ensures accurate motion control for electrohydraulic servo valves that regulate steam and fuel flow in turbines. This unit provides reliable feedback, fast response, and high-precision control for industrial applications.
GE IS200VSVOH1BDC Servo Control Board – Precision and Reliability for Mark VI Turbine Systems
- Part Number: IS200VSVOH1BDC
- Manufacturer: General Electric (GE)
- Country of Origin: USA
- Series: Mark VI
- Product Type: Servo Control Board
- Temperature Range: 0 to 60 °C
- Processor: Texas Instruments TMS320C32
- Warranty: 12 Months
- Availability: In Stock and Ready to Ship via FedEx, UPS, or DHL
Contact Information:
sales@powergearx.com |
+86 18030005825
Key Features
- Supports four electrohydraulic servo valves for precision turbine control.
- Integrated LVDT feedback system for accurate valve positioning.
- Runs loop control algorithms internally for faster processing.
- Compatible with active and passive speed sensors.
- Three diagnostic LEDs for Run, Fail, and Status indication.
- Operates reliably in industrial temperature ranges up to 60°C.
- Suitable for both steam and gas turbine applications.
Technical Parameters
- Functional Part Number: IS200VSVOH1BDC
- Revisions: BDC (B-functional, D-secondary, C-artwork)
- Frequency Range: 2–14 kHz (Pulse Input)
- Servo Channels: 4 independent channels
- Servo Coil Support: 2 or 3 coils (TMR applications)
- Speed Sensor Range: 2 Hz sensitivity minimum
- Feedback Sensors: Up to 3 LVDTs/LVDRs per channel
- Excitation Source: AC excitation for LVDTs
- Communication Interface: VME rack compatible
- Mounting Type: Plug-in board with edge connectors
Installation Guide
- Power off the VME rack before installation.
- Slide the board into the designated slot carefully.
- Ensure connectors are securely seated using the top and bottom levers.
- Tighten all captive screws to prevent vibration damage.
- After installation, power up and verify diagnostic LEDs status.
Product Highlights
- Designed for long service life and high-speed control loops.
- Reduces downtime through modular plug-in design.
- Ensures consistent turbine output performance.
- Backed by GE Speedtronic legacy reliability.
FAQs
- Q1: What type of turbines can use IS200VSVOH1BDC?
- A1: It supports both gas and steam turbines for industrial power systems.
- Q2: Does this board include built-in fault detection?
- A2: Yes, it features LEDs for Run, Fail, and Status to identify issues quickly.
- Q3: How is feedback accuracy ensured?
- A3: It uses triple-redundant LVDTs per channel to maintain precise position sensing.
- Q4: Can it work with passive speed sensors?
- A4: Yes, the board is compatible with both active and passive sensor types.
- Q5: What shipping options are available?
- A5: We ship globally via FedEx, UPS, and DHL with full tracking support.
