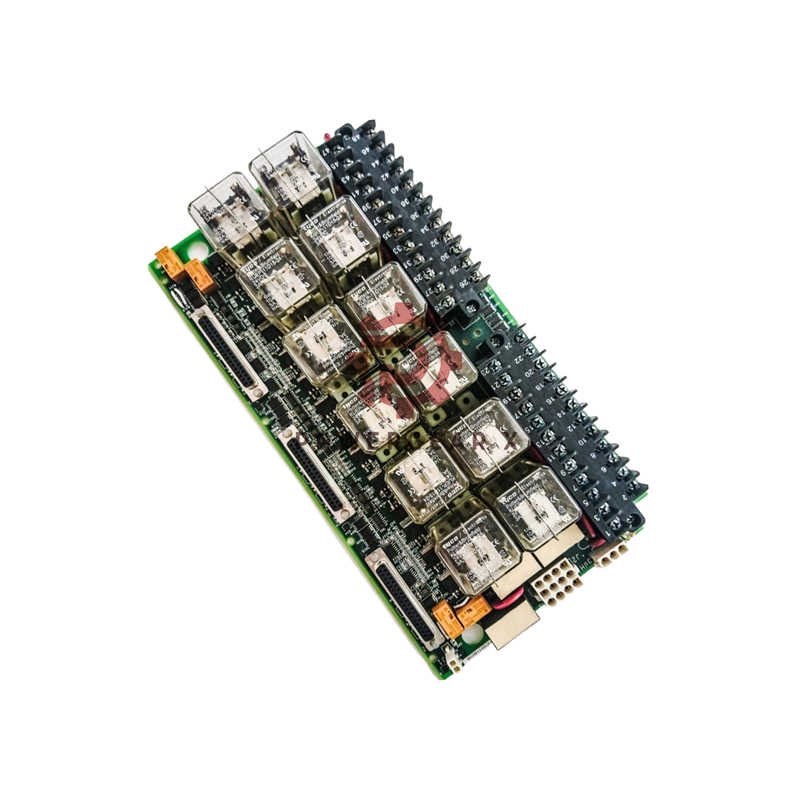

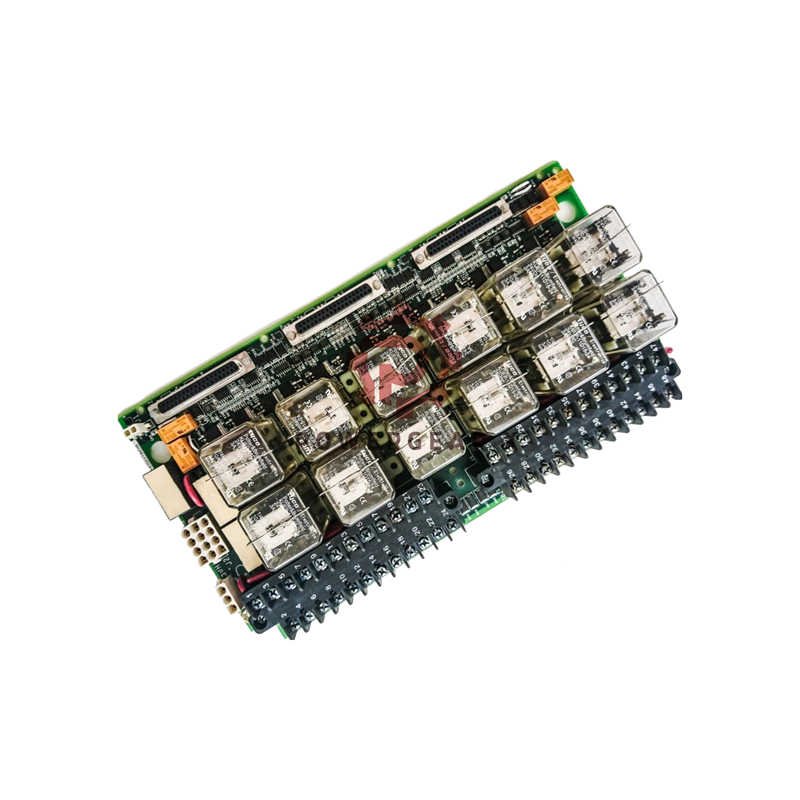

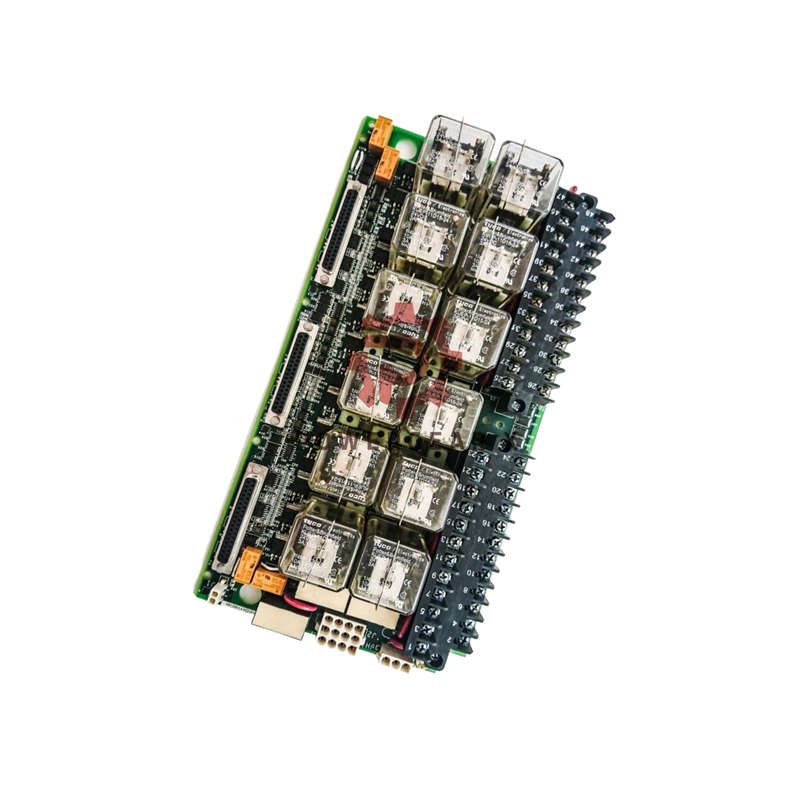

GE IS200TREGH1BDB Turbine Emergency Trip Board – Mark VI

GE IS200TREGH1BDB Turbine Emergency Trip Terminal Board

The IS200TREGH1BDB from General Electric provides critical safety control for Mark VI turbine systems. This emergency trip board ensures reliable shutdown protection during emergency conditions.

Technical Specifications

• Model: IS200TREGH1BDB (Revision BDB)
• Manufacturer: General Electric
• System Series: Mark VI Speedtronic
• Operating Temperature: 0°C to 60°C
• Response Time: 4ms trip interlock filter
• Board Dimensions: 7.0″ x 13.0″ (17.8cm x 33cm)
• Relay Configuration: 12 relays (3 sets of 3 for voting)
• Terminal Blocks: 2 blocks with 48 terminals total
• Weight: 2 lbs (0.9 kg)
• Compatibility: Backwards compatible with first two revisions

System Integration

• Works with TREG board for complete power distribution
• Supports simplex system configuration with TSVO connection
• Enables servo valve clamp function after turbine trip
• Coordinates with I/O controller for automated testing
• Provides contact feedback for trip confirmation

Package & Support

• GE IS200TREGH1BDB terminal board
• Installation documentation and guidelines
• 12-month comprehensive warranty
• Technical support and application assistance
• Express shipping via FedEx, UPS, or DHL

Professional FAQ

• How many trip solenoids can this board control?

• The board manages up to three emergency trip solenoids simultaneously.

• What is the operating temperature range?

• It functions reliably in temperatures from 0°C to 60°C.

• Does it support redundant safety systems?

• Yes, with twelve relays arranged in redundant voting groups.

• What is the trip response time?

• The hardware filter ensures 4ms response for emergency trips.

• Is backward compatibility available?

• It maintains compatibility with the first two revision versions.

For technical specifications or to order the IS200TREGH1BDB, contact sales@powergearx.com or +86 18030005825.
