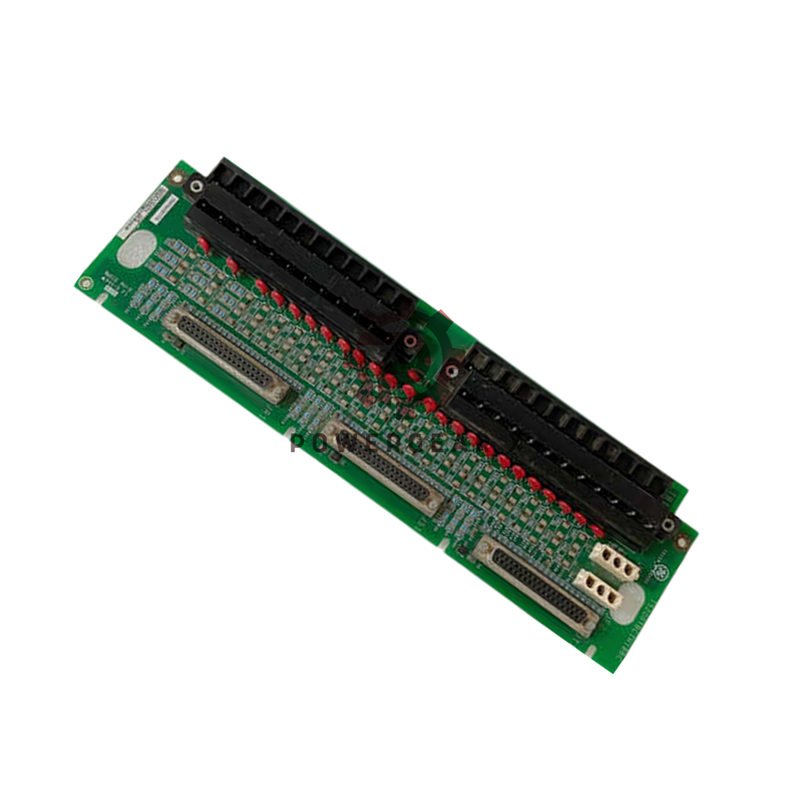

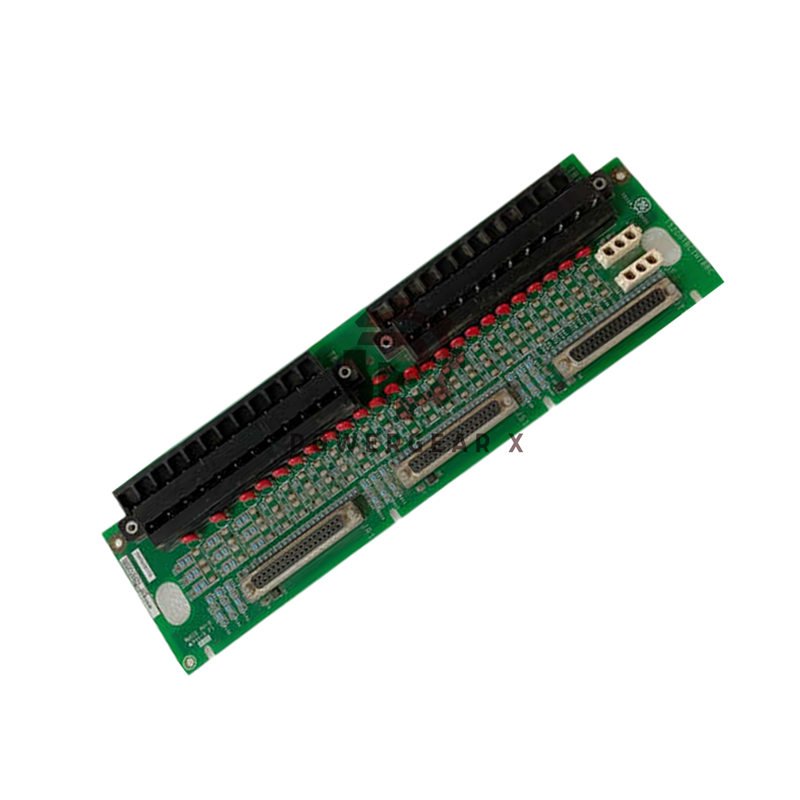

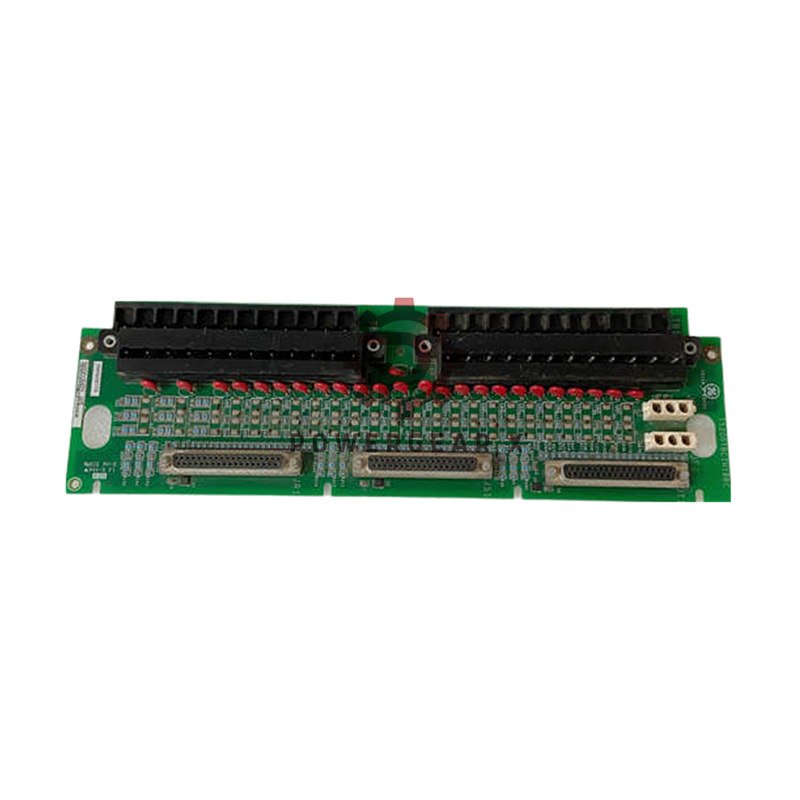

General Electric IS200TBCIH1BBC Contact Input Terminal Board
Powergear X Automation presents the GE IS200TBCIH1BBC, a compact and reliable contact input terminal board from the Mark VI Series. It is built to deliver accurate input signal processing and solid electrical performance for gas and steam turbine systems.
Product Highlights
- High capacity: Supports 24 dry contact inputs through two 48-point terminal blocks.
- Signal clarity: Features surge and noise suppression for clean signal input.
- Flexible configuration: Works in both Simplex and TMR systems.
- Easy integration: Directly connects to VCCC or VCRC boards via molded cables.
- Durable design: Withstands -30°C to +65°C for long-term industrial reliability.
Technical Specifications
- Brand: General Electric (GE)
- Model: IS200TBCIH1BBC
- Series: Mark VI
- Product Type: Contact Input Terminal Board
- Country of Manufacture: USA
- Dimensions: 33.02 cm (H) × 10.16 cm (W)
- Operating Temperature: -30°C to +65°C
- Input Channels: 24 dry contact inputs
- Terminal Blocks: Two barrier-type, 48 terminals total
- Excitation Voltage: 24 VDC typical, via JE1 and JE2 connectors
- Connectors: JR1 (Simplex), JR2/JR3 (TMR redundancy)
- Noise Suppression: Built-in surge protection circuitry
- Mounting: Surface-mount with side bracket
- Power Draw: Less than 3 W typical
- Insulation Resistance: 100 MΩ minimum at 500 VDC
- Warranty: 12 months full coverage
- Shipping: FedEx, UPS, or DHL worldwide
- Availability: In Stock
Functional Overview
- The board transfers turbine contact signals to the processor boards within the VME rack.
- Each input is isolated and protected by suppression components for reliability.
- Dual connectors provide excitation voltage through JE1 and JE2 ports.
- Compact design allows simple side-mounting next to I/O packs in Mark VI and Mark VIe systems.
Integration & Connectivity
- Connects directly to VCCC or VCRC processor boards for full data routing.
- Supports single or triple redundant operation modes.
- Ethernet-ready interface ensures fast and stable data communication.
- Easy to configure using pre-molded cable connectors.
Performance Advantages
- Fast response: Input update cycle within 5 ms.
- Strong isolation: 2500 V RMS channel-to-channel protection.
- Compact build: Lightweight 0.7 kg for easier rack installation.
- Extended life: PCB with anti-corrosion coating for harsh conditions.
- Simple maintenance: Modular parts simplify field replacement.
FAQ
- Q: What is the excitation voltage of the IS200TBCIH1BBC?
A: It uses a 24 VDC excitation supply routed through JE1 and JE2 plugs. - Q: Can this board be used in Mark VIe systems?
A: Yes, it connects through I/O packs compatible with both Mark VI and Mark VIe setups. - Q: How many input channels are available?
A: There are 24 dry contact input channels arranged across two terminal blocks. - Q: Does it support redundancy?
A: Yes, it supports both Simplex and TMR (Triple Modular Redundant) systems. - Q: What is the warranty and shipping policy?
A: All units include a 12-month warranty and ship via FedEx, UPS, or DHL.
