Exciter Selector Board for Precision Control

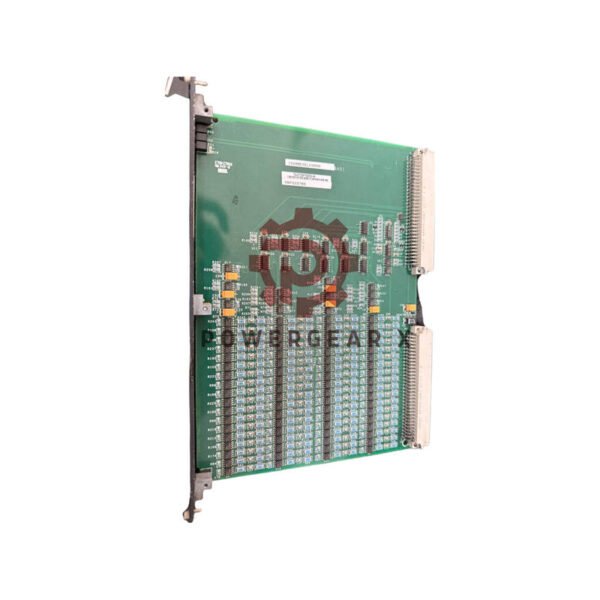

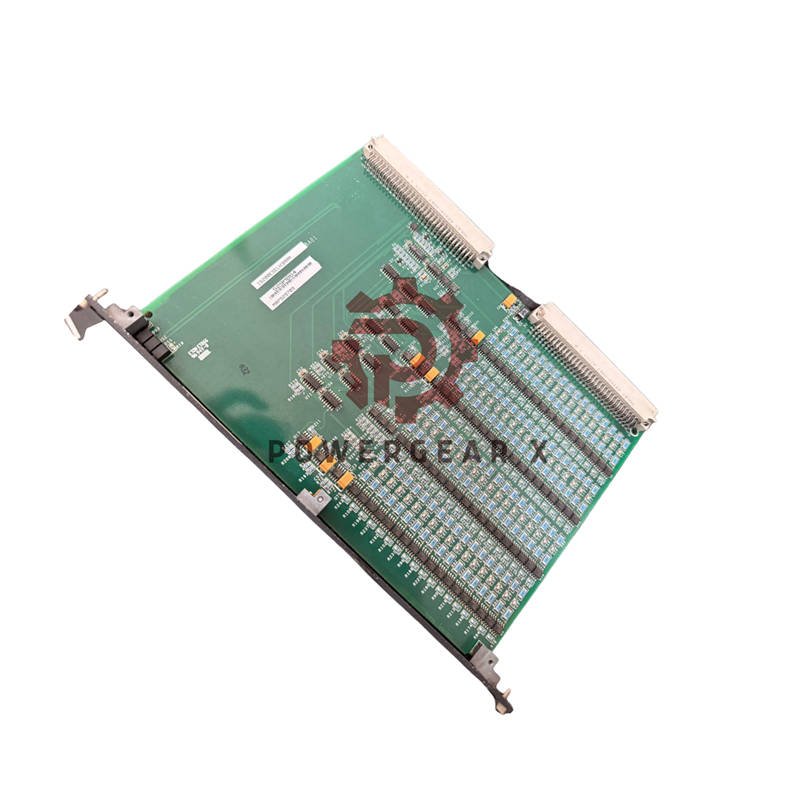

The IS200ESELH3A by General Electric is a critical Exciter Selector Board for EX2100 excitation systems. This board receives and processes gate pulse signals with exceptional accuracy. It ensures reliable power generation control through advanced signal distribution technology.
Quick Specifications
- Manufacturer: General Electric (GE)
- Model: IS200ESELH3A (Revision A)
- Series: EX2100 Excitation Controller
- Board Type: Exciter Selector Board
- Dimensions: 33.02 cm x 10.16 cm
- Bridge Drivers: Six independent drivers
- Weight: 2.7 kg (6 lbs)
- Operating Temp: -20°C to 70°C
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL Express
Technical Performance
- Processes six logic-level gate pulse signals simultaneously
- Distributes signals through six cable sets to EGPA boards
- Operates within wide temperature range for reliability
- Features P1 and P2 connectors for VME backplane integration
- Provides real-time status through visual LED indicators
- Supports redundant control systems when required
LED Status Guide
- LED 1 (Power): Green light indicates board power supply active
- LED 2 (Active): Illuminates when board enabled by control signal
- LED 3 (Gating): Shows active gating from EMIO inputs
Installation Process
- Mount board in EX2100 control rack securely
- Connect P1 and P2 connectors to VME backplane
- Route six cable sets to EGPA boards in power cabinet
- Verify all LED indicators show proper status
- Test gate pulse signal transmission
Packaging Details
- One IS200ESELH3A Exciter Selector Board
- Installation guidance documentation
- Protective packaging materials
- Fast worldwide shipping options
Frequently Asked Questions
- What is the main function of the IS200ESELH3A board?
- It receives gate pulse signals from the EMIO board and distributes them to EGPA boards for SCR firing control.
- How many bridge drivers does this board contain?
- The board features six bridge drivers for comprehensive signal distribution.
- Can this board work in redundant systems?
- Yes, redundant control systems require two ESEL boards for proper operation.
- What manuals are available for this board?
- GEH-6632 for EX2100 systems and GEI-100456 for IS200ESEL specific guidance.
- Is the IS200ESELH3A currently available?
- Yes, we maintain stock of this board for immediate shipment worldwide.
