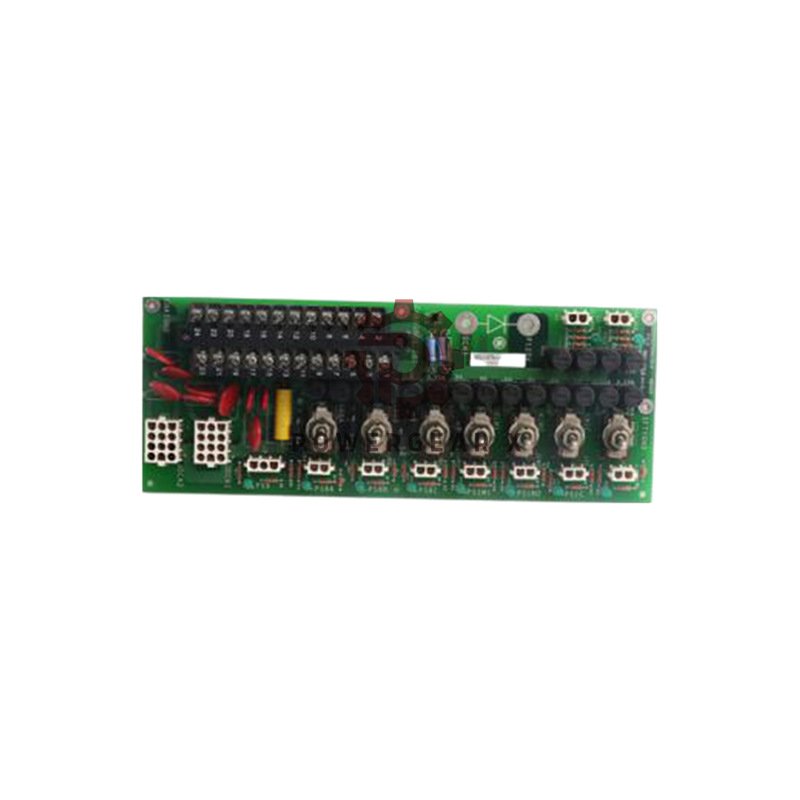

GE IS200EPDMG1BAA Exciter Power Distribution Module | Powergear X Automation
- Part No.: IS200EPDMG1BAA
- Manufacturer: General Electric (GE)
- Series: EX2100
- Type: Exciter Power Distribution Module
- Country of Origin: USA
- Technology: Surface Mount
- Size: 17.8 cm × 33.02 cm
- Rated Voltage: 125 V DC
- Switch Rating: 125 V DC, 6 A
- Fuse Count: 14
- LED Indicators: 8 Green LEDs
- Mounting Holes: 4 Grounded
- Availability: In Stock
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL
Contact:
sales@powergearx.com |
+86 18030005825
Overview
The GE IS200EPDMG1BAA module is the power core of the EX2100 system. It delivers safe, stable, and filtered DC power to exciter boards. Designed for long life and high reliability, this module ensures smooth turbine control under all conditions.
Main Features
- AC/DC Conversion: Converts 120V AC to 125V DC with stable regulation.
- Dual Inputs: Supports one or two backup AC inputs.
- Safety Ground: Strong chassis grounding for protection and stability.
- LED Status: Eight LEDs for clear power and fault indication.
- Power Outputs: Fused and switch-controlled outputs for safe operation.
- Connectivity: 24-point terminal block and 10 connectors for easy wiring.
Technical Highlights
- Input Voltage: 120 V AC (x2)
- Output Voltage: 125 V DC nominal
- Output Ground Reference: ±62.5 V
- Connector Type: JDACA1 / JDACA2
- Switch Quantity: 7
- Terminal Block: 24 points, 600 V rated
- Board Type: Surface Mount Technology
- System Compatibility: EX2100 Exciter System
Performance Advantages
- Reliable power filtering and regulation
- Supports redundant AC inputs
- High-voltage protection with fuses
- Easy-to-monitor LED indicators
- Durable GE industrial design
Five Professional FAQs
- Q1: What system does the IS200EPDMG1BAA belong to?
- A:It is part of GE’s EX2100 exciter control system for turbine power management.
- Q2: How many fuses are on the board?
- A:There are fourteen fuses for circuit protection and controlled output distribution.
- Q3: What is the function of the LED indicators?
- A:They show power status and fault conditions for quick system checks.
- Q4: Can the module handle dual AC input sources?
- A:Yes, it accepts one or two 120 V AC inputs for redundancy and stability.
- Q5: What are the typical shipping options?
- A:Products ship worldwide via FedEx, UPS, or DHL with fast delivery support.
