Product details

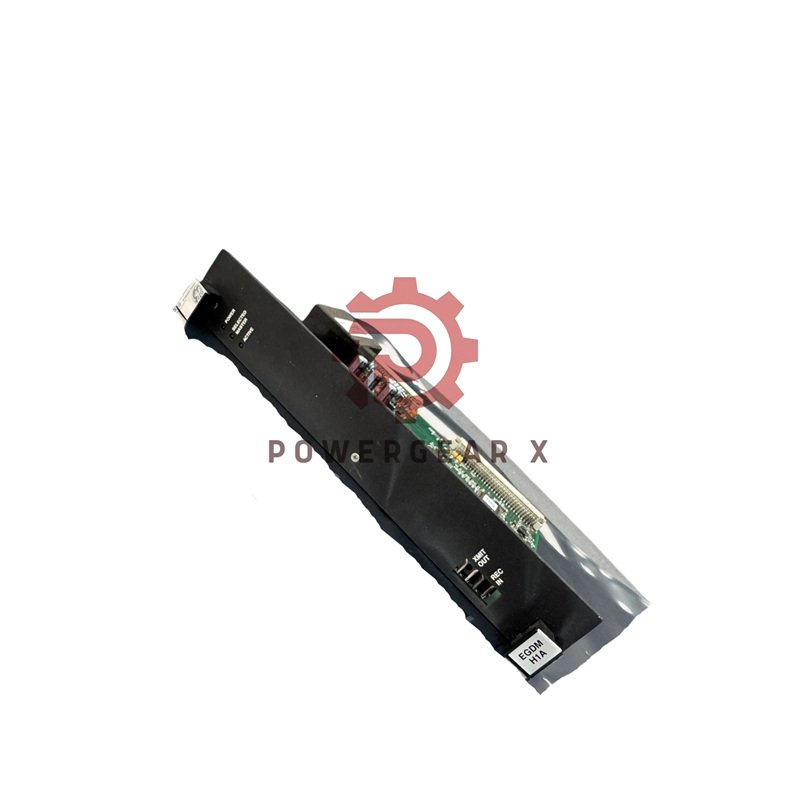

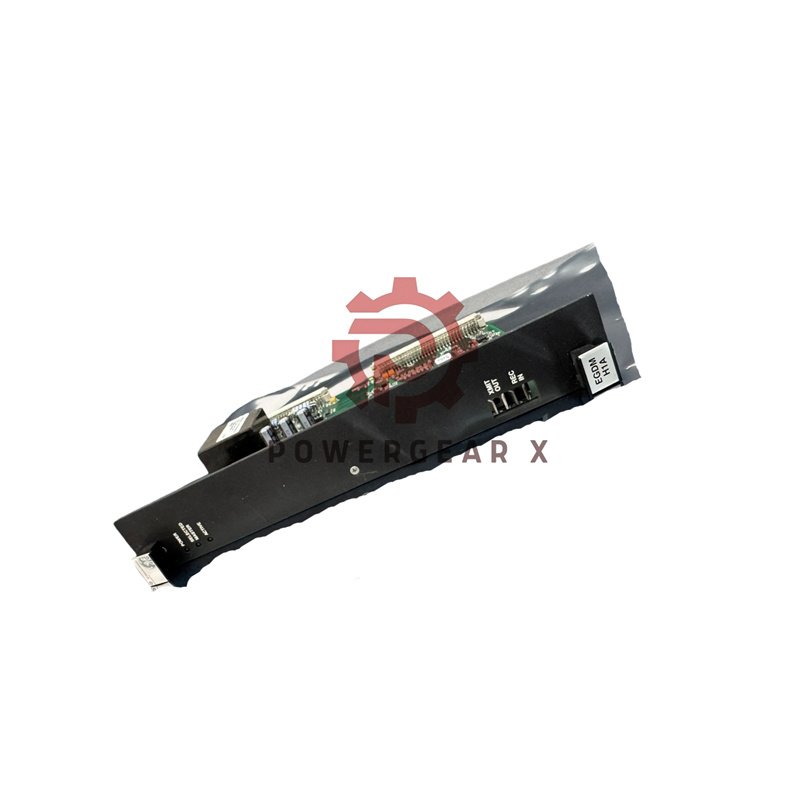

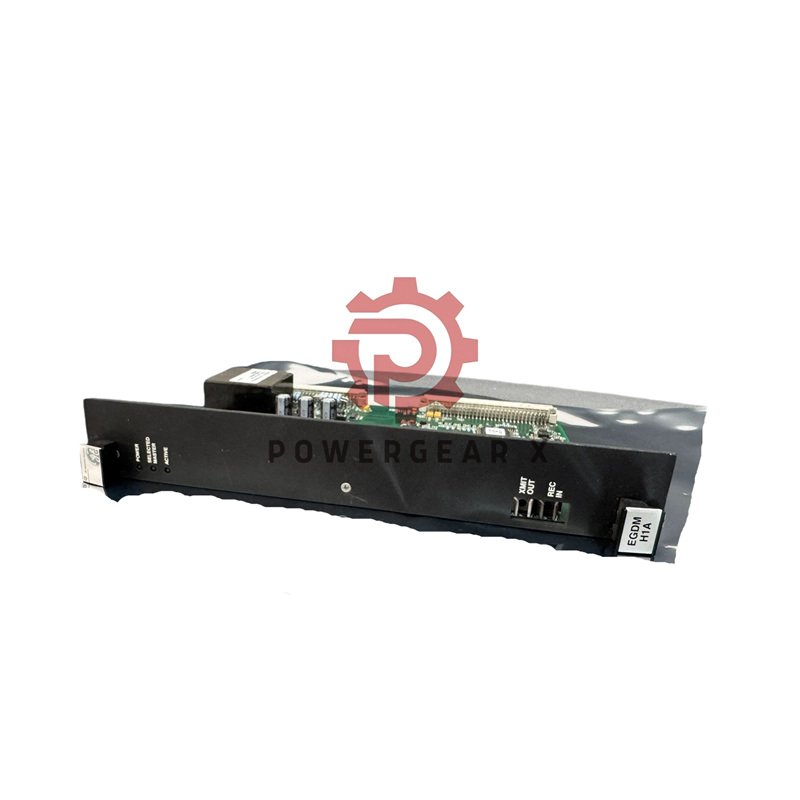

GE IS200EGDMH1A Exciter Ground Detector Module
The IS200EGDMH1A provides critical ground fault detection for excitation systems. This module ensures safe operation by monitoring field circuit resistance.
Technical Specifications
- Brand: General Electric
- Model: IS200EGDMH1A
- Series: EX2100 Excitation Control
- Function: Exciter Ground Detector
- Operating Temperature: -30°C to 65°C
- Dimensions: 9″ H × 6″ D × 1.5″ W
- Weight: 1 lb 3 oz (0.54 kg)
- Mounting: Exciter Power Backplane Rack
- System Type: Simplex (1 module) / Redundant (3 modules)
- Manual Reference: GEI-100467
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL
System Integration
- Mounts in EPBP rack as double slot, 6U form factor
- Works with EXAM attenuator module for measurements
- Communicates with DSPX via fiber-optic links
- Three LED indicators show power, activity, master status
- Configurable via P2 connector program pins
- Compatible with simplex and redundant systems
Installation Requirements
- Mount in designated EPBP rack location
- Connect fiber-optic cables to DSPX module
- Ensure proper EXAM module integration
- Verify all LED indicators function correctly
- Configure program pins for system type
- Test ground detection functionality
Package Contents
- IS200EGDMH1A ground detector module
- Installation and operation manual
- Mounting hardware and connectors
- 12-month warranty documentation
- Express shipping available worldwide
Technical FAQs
- How many modules are needed for a simplex system?
- One IS200EGDMH1A module is required for simplex operation.
- What does the module detect?
- It detects ground faults in generator field circuits.
- How does it communicate with other system components?
- It uses fiber-optic links to communicate with the DSPX module.
- What are the three LED indicators for?
- They show power status, activity, and selected master status.
- Can it work in high temperature environments?
- Yes, it operates from -30°C to 65°C.
