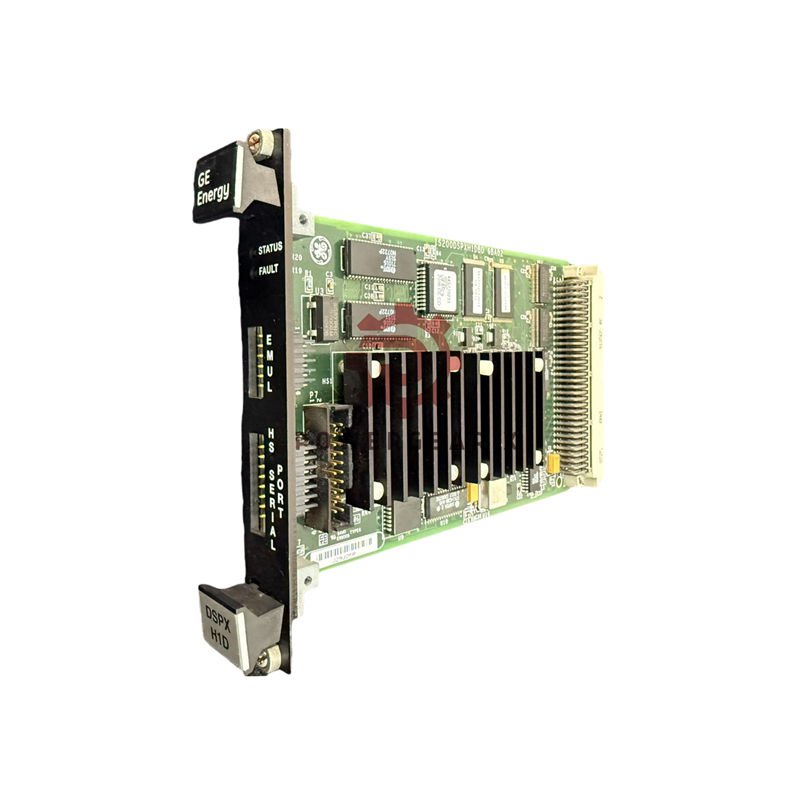

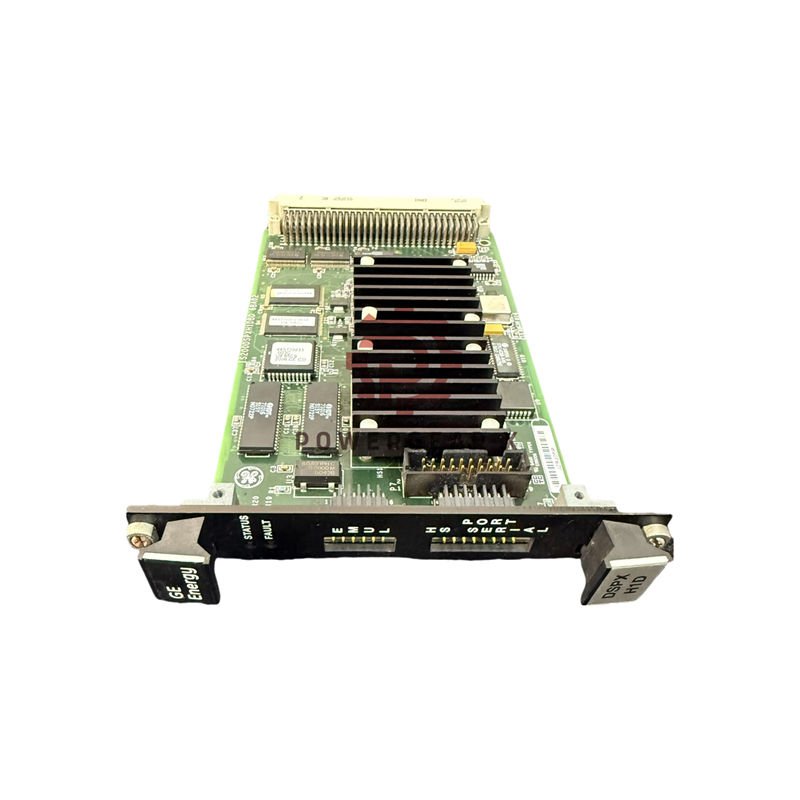

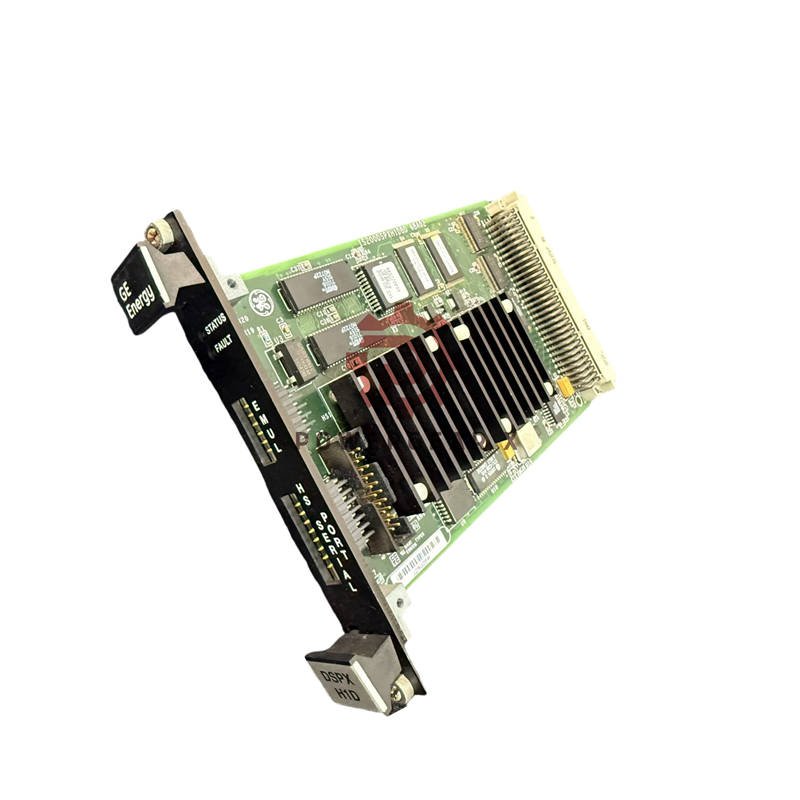

GE IS200DSPXH1DBD Digital Signal Processor Board

The IS200DSPXH1DBD by General Electric delivers advanced control for turbine systems. This DSP board handles complex processing tasks with high reliability.

Technical Specifications

• Manufacturer: General Electric
• Model: IS200DSPXH1DBD
• Series: Mark VI Speedtronic
• Function: Digital Signal Processor Control
• Processor Speed: 60 MHz
• Operating Temperature: -30°C to 65°C
• Board Dimensions: 330mm × 178mm
• Memory Types: FLASH, RAM, NVRAM
• Interrupt Channels: 4 External
• Warranty Period: 12 Months
• Shipping Methods: FedEx, UPS, DHL

Memory Configuration

• FLASH memory for boot images and code
• RAM for temporary data storage
• NVRAM for critical parameter retention
• Add-only memory for revision tracking

LED Status Indicators

• Red LED indicates system faults
• Green LED shows operational status
• Flashing green means normal operation
• Steady red indicates fault condition

Installation Guidelines

• Always use anti-static protection
• De-energize system before installation
• Install in proper rack position only
• Connect to backplane via P1 connector
• Verify all connections before power-up

Package Contents

• IS200DSPXH1DBD control board
• Installation documentation
• All necessary mounting hardware
• 12-month warranty certificate

Frequently Asked Questions

• What is the main purpose of this board?

• It serves as the primary DSP controller for turbine systems.

• How many interrupt channels does it have?

• The board features four external interrupt channels.

• What temperature range can it handle?

• It operates reliably from -30°C to 65°C.

• Is technical support available?

• Yes, we provide full technical support for this product.

• How is the board shipped?

• We ship via FedEx, UPS, or DHL with tracking.
