Product details

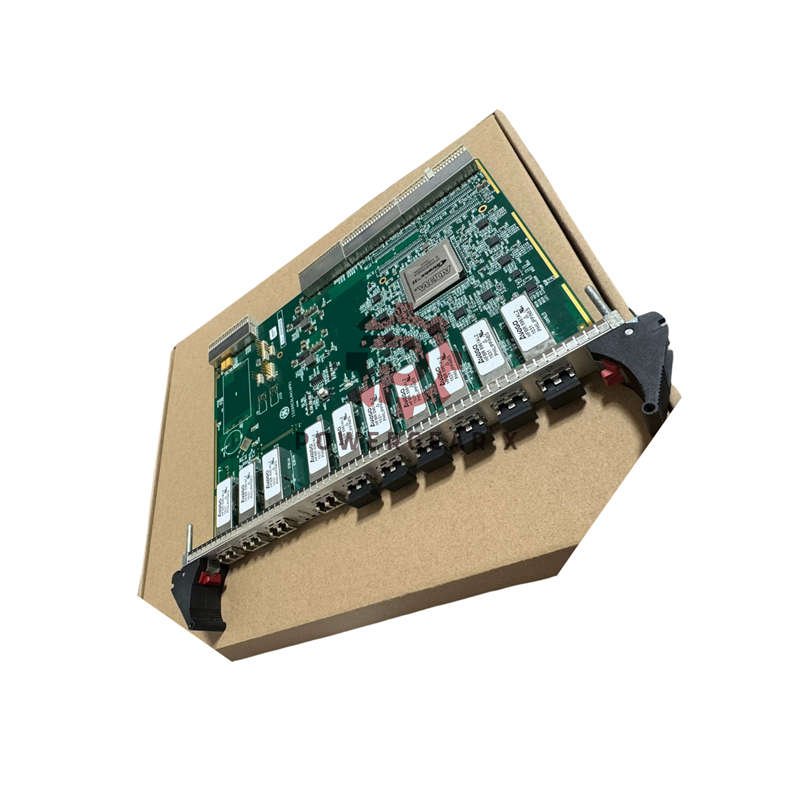

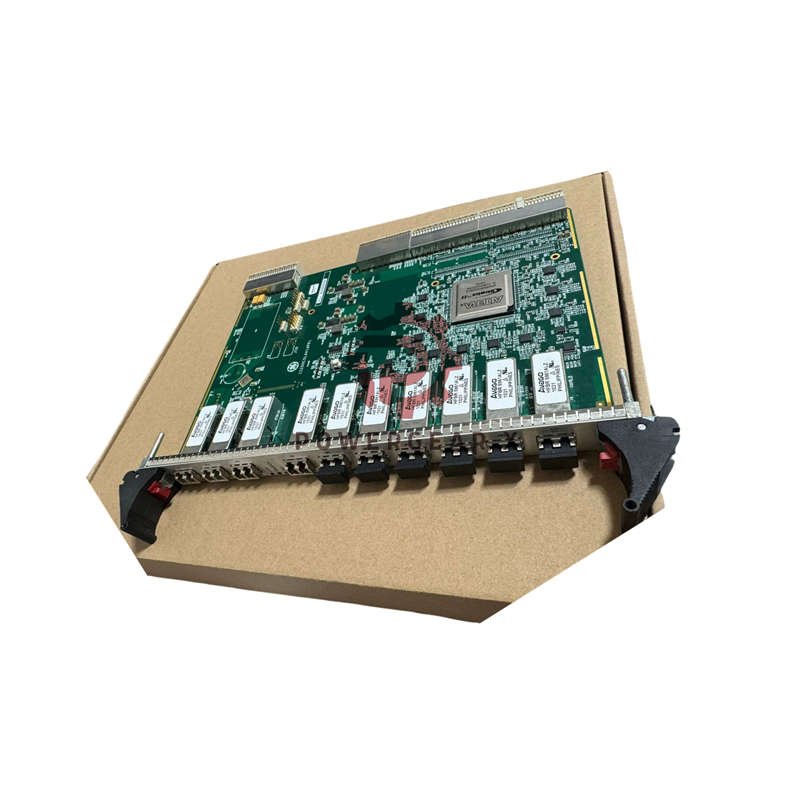

High-Speed Serial Link Expansion Board
The IS200CSLAH1A by General Electric is a compact PCI serial link expansion board for EX2100e control systems. This board enables high-speed communication with main processor boards using advanced serial link technology. It features intuitive LED indicators for real-time status monitoring.
Key Specifications
- Manufacturer: General Electric (GE)
- Model: IS200CSLAH1A (Revision A)
- Series: EX2100e Excitation Control
- Product Type: Compact PCI Serial Link Board
- Operating Temperature: -30°C to 65°C
- Data Rate: Up to 125 Mbps
- Transceivers: 10x HFBR-5961xxZ Avago
- PCB Coating: Conformal Coating
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL Available
Product Features
- Ten high-speed Avago transceivers for reliable data transmission
- Three-color LED system for instant status monitoring
- Green RUN light indicates normal operation
- Yellow STATUS LED blinks during fault detection
- Red FAIL LED activates for critical errors
- Conformal coating protects against harsh environments
- Compact PCI design saves space in control systems
Applications
- EX2100e excitation control systems
- Power generation turbine control
- Industrial automation networks
- High-speed data communication systems
- Legacy GE control system upgrades
LED Indicator Guide
- GREEN RUN LED: Normal operation – system functioning properly
- YELLOW STATUS LED: Fault detected – requires investigation
- RED FAIL LED: Critical error – immediate attention needed
Frequently Asked Questions
- What is the purpose of the IS200CSLAH1A board?
- It provides high-speed serial communication between the main processor and expansion boards in EX2100e systems.
- How many transceivers does the board have?
- The board features ten Avago HFBR-5961xxZ transceivers for data transmission.
- What do the different LED colors indicate?
- Green means normal operation, yellow indicates faults, and red signals critical errors.
- What temperature range can the board handle?
- It operates reliably in temperatures from -30°C to 65°C.
- Is this board in stock and ready to ship?
- Yes, we have the IS200CSLAH1A in stock and ready for immediate shipment.
