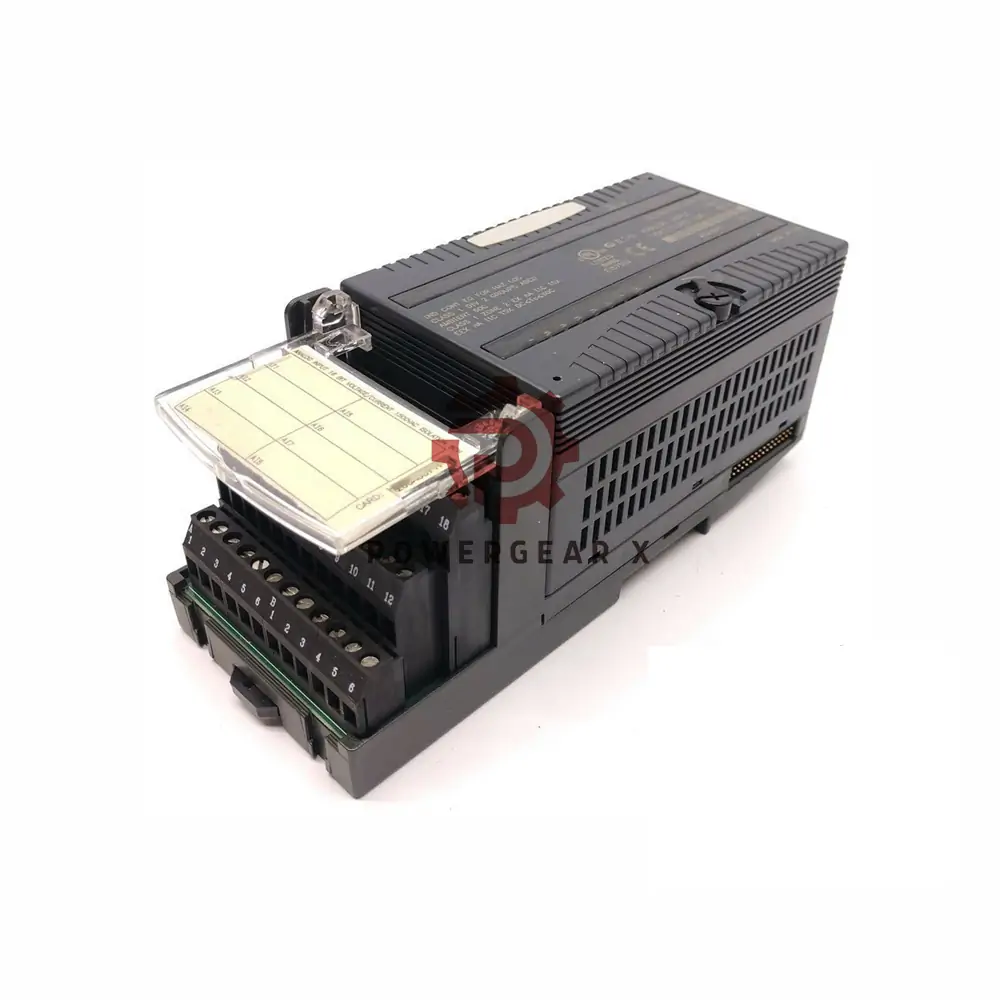

Emerson IC200ALG260 VersaMax Analog Input Module

Product Overview

New IC200ALG260 8-channel analog input module for VersaMax systems. Accepts voltage (±10VDC) and current (4-20mA) signals with 12-bit precision. Features optical isolation and dual LED indicators. Ships with 12-month warranty.

Key Technical Specifications

• Brand: Emerson (formerly GE Fanuc)
• Input Channels: 8 single-ended
• Signal Types:
  • Voltage: -10V to +10V or 0-10V
  • Current: 4-20mA
• Resolution: 12-bit (1 part in 4096)
• Accuracy:
  • ±0.3% at 25°C (typical)
  • ±1.0% at 0-60°C (maximum)
• Response Time: 5ms
• Input Impedance:
  • 126 kΩ (voltage mode)
  • 200 Ω (current mode)
• Isolation: 250VAC continuous
• Power Consumption: 130mA @ 5VDC

Module Features

• Dual LED status indicators (INT PWR + OK)
• Automatic error handling: Hold last state or default value
• Single-ended wiring configuration
• No external power required
• Backplane-powered operation

Configuration & Installation

• Default Mode: Voltage input (-10V to +10V)
• Configurable Settings:
  • Range selection (voltage/current)
  • Mode selection (unipolar/bipolar)
• Wiring Notes: Requires noise cancellation for EMI environments

Compatibility

Works with all VersaMax PLC systems. Direct replacement for legacy GE Fanuc modules.

Package Includes

• IC200ALG260 module
• Factory documentation
• 12-month manufacturer warranty

Shipping Information

Global delivery via FedEx, UPS, DHL. Ships same day for in-stock orders.

Frequently Asked Questions

• Q: What’s the difference between unipolar and bipolar mode?
  A: Unipolar = 0-10V range, Bipolar = -10V to +10V range
• Q: Can I mix voltage and current inputs?
  A: No, all 8 channels must be configured for same signal type
• Q: Minimum signal change detected?
  A: 4µA for current, 2.5mV for voltage signals
• Q: EMI protection included?
  A: Basic isolation only – additional signal conditioning recommended
