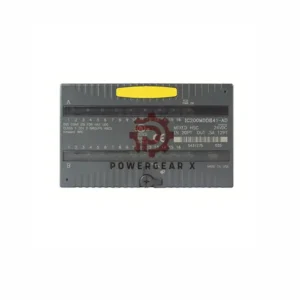

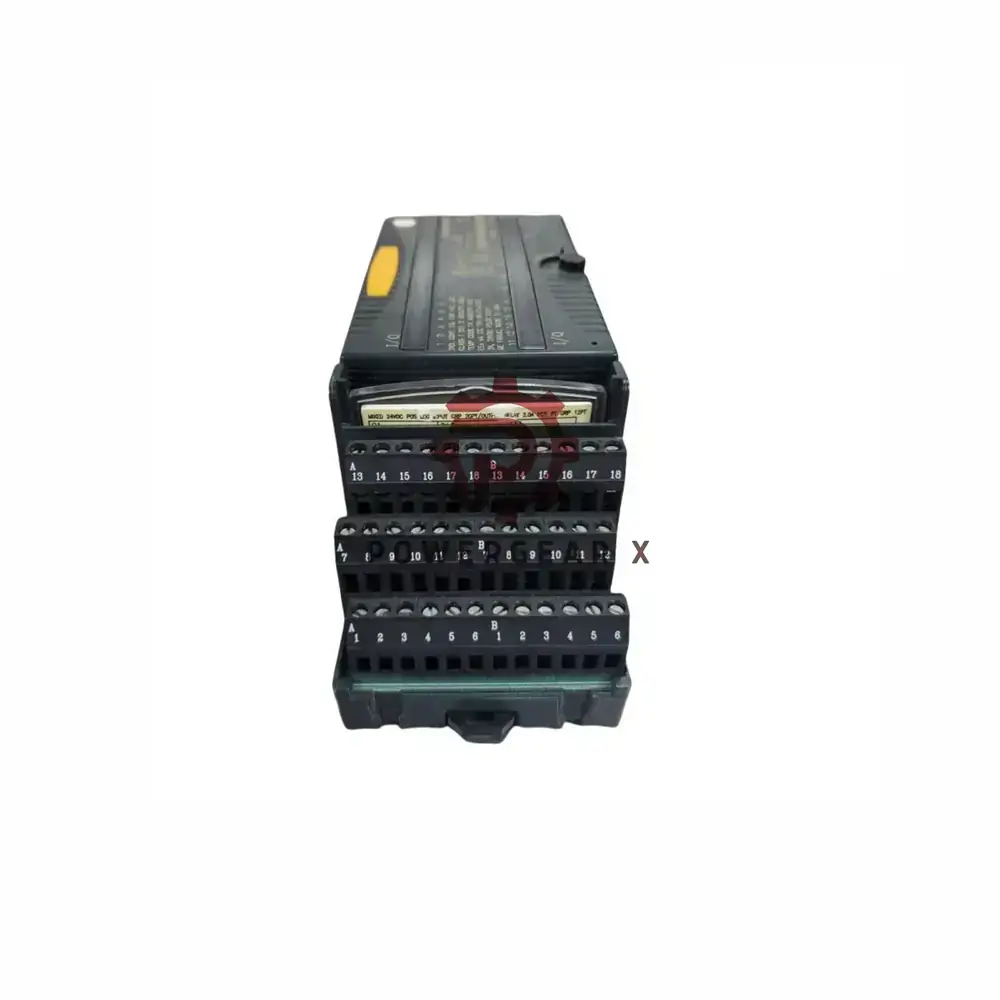

GE Fanuc VersaMax Discrete Mixed Module IC200MDD841

IC200MDD841 High-Speed Counter Module

Boost your automation with GE Fanuc’s IC200MDD841! This VersaMax series module delivers precision counting at 80 kHz for demanding industrial applications. With 32 configurable I/O points (20 inputs + 12 outputs), it’s your go-to solution for high-speed monitoring.

Key Features

• 4x Type-A counters processing 80,000 pulses/sec
• Configurable I/O for PWM, ramping pulse trains
• Onboard LEDs for real-time status monitoring
• Error detection with 13-word status data

Technical Data

• Brand: GE Fanuc Intelligent Platforms
• Model: IC200MDD841 (Full Suffix: IC200MDD841Â)
• I/O Points: 32 (20 inputs + 12 outputs)
• Counter Channels: 4 Type-A
• Max Pulse Speed: 80 kHz
• Voltage: 24V DC
• Current Draw: 30 mA @ 5V backplane
• On/Off Current: 3-8 mA / 0-0.5 mA
• Dimensions: 66.8 x 110 x 50 mm

Installation Guide

• Mount on VersaMax backplane using DIN rail
• Connect external 24V DC power for outputs
• 5V backplane power required (30 mA)
• No internal fuses – use external circuit protection

Compatibility

• Designed for VersaMax PLC systems
• Integrates with GE Fanuc automation networks

Certification & Warranty

• Industrial-grade safety compliance
• 12-month warranty

Package Includes

• 1x IC200MDD841 module
• Installation documentation

Shipping

• Fast global delivery via FedEx, UPS, DHL
• Typically ships within 24 hours

FAQ

• Q: Is channel isolation included?
  A: No – add external protection for individual channels.
• Q: Can outputs handle PWM?
  A: Yes – configurable for PWM/pulse train modes.
• Q: Default configuration?
  A: 4 high-speed counters + 8 standard outputs/12 inputs.
