Product details

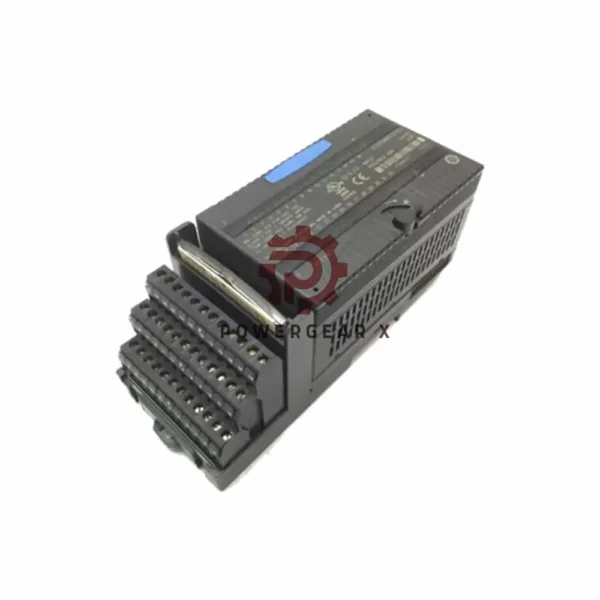

IC200MDL741 – Compact 16-Point DC Output Module for Machine Control
Power Your Automation
Control machines smarter with GE Fanuc’s IC200MDL741 output module. This 16-point DC powerhouse runs solenoids, relays, and small motors in packaging lines, conveyor systems, and assembly stations. Hot-swap design means no shutdowns during installation!
Key Technical Specs
- Brand: GE Fanuc
- Model: IC200MDL741 (Full suffix: IC200MDL741XXX)
- Output Type: Positive Logic (Sourcing)
- Points: 16 outputs in 1 group
- Voltage: 18-30V DC (24V nominal)
- Current: 0.5A per point
- Response Time: 0.5 ms max
- Protection: Short-circuit & overcurrent
- Power Consumption: 5V@75mA (backplane)
- External Power: 18-30V DC required
- Temp Range: -20°C to +65°C
Simple Installation
Mount in any position on DIN rail. Connect external power to A17 (DC+) and A18 (DC-). Green “OK” LED confirms operation. No tools needed!
Works With
All Versamax PLC systems. Connects to sensors, valves, and indicators. Not for AC systems.
Box Contents
- IC200MDL741 module ×1
- Installation sheet
- 12-month warranty (no certificates)
Fast Global Shipping
FedEx | UPS | DHL – Delivered in 2-5 business days worldwide.
Common Questions
Q: Can it run 24V garage door motors?
A: Yes! Perfect for 0.5A DC motors like doors or small conveyors.
Q: What if I overload a point?
A: That single point turns off. Others keep working. LED flashes red.
Q: Is external power mandatory?
A: Yes. Connect 24V DC to A17/A18 for field devices.
There are no reviews yet.
