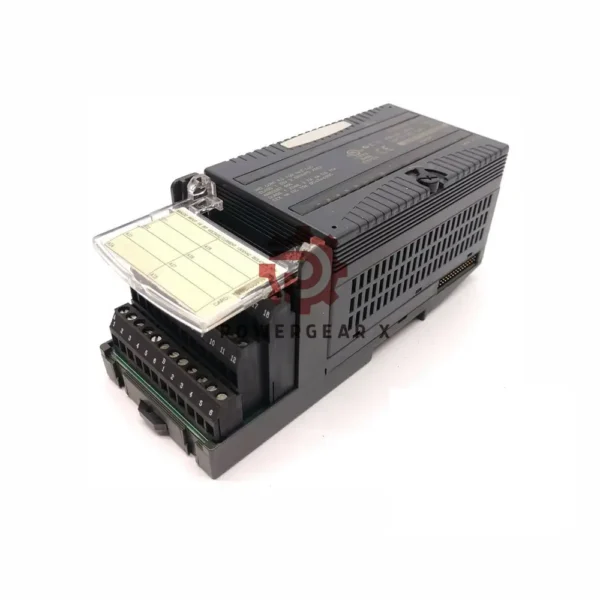

GE Fanuc IC200ALG630 Thermocouple & Millivolt Input Module
Precision Temperature Monitoring
Advanced 7-channel module for J/K/T/S/R thermocouples and millivolt sensors. 16-bit resolution ensures accurate readings in industrial processes.
Key Benefits
| 7 Sensor Inputs Monitor multiple temperature points | Ultra-Accurate ±0.15% temperature accuracy |
| Fast Scanning 60ms update rate @ 60Hz | Smart Diagnostics Detects open circuits & sensor errors |
Technical Specifications
| Input Channels | 7 |
| Sensor Compatibility | Thermocouples J/K/T/S/R Millivolt (±19.5mV to ±625mV) |
| Resolution | 16-bit |
| Accuracy | ±0.2% (voltage) ±0.15% (temperature) |
| Update Rate | 60ms @60Hz / 70ms @50Hz |
| Isolation | 1500V AC (1 min) |
| Dimensions | 4.3″ W x 2.63″ H x 1.95″ D |
Installation Made Simple
- Mounts in Versamax PLC rack
- Use shielded twisted pair wiring
- 4 cold junction compensation options
- OK LED shows operational status
Advanced Diagnostics
- Open thermocouple detection
- Over/under range alerts
- High/low temperature alarms
- Thermistor fault reporting
Package & Support
| Condition | New in factory packaging |
| Warranty | 12 months |
| Shipping | FedEx / UPS / DHL 2-5 days worldwide |
LED Status Guide
- Green OK Light: Normal operation
- Amber Light: Module fault detected
Environmental Limits
- Temperature: 0°C to 60°C (32°F to 140°F)
- Indoor use only
- Install in protected enclosures
FAQ
Q: Supported thermocouple types?
A: J, K, T, S, R sensors.
Q: Minimum millivolt range?
A: ±19.5mV sensitivity.
Q: Update speed at 50Hz?
A: 70ms per channel.
Q: Cold junction options?
A: None, remote, fixed, or local compensation.
