GE Fanuc Series 90-70 IC697VAL314 Converter Board

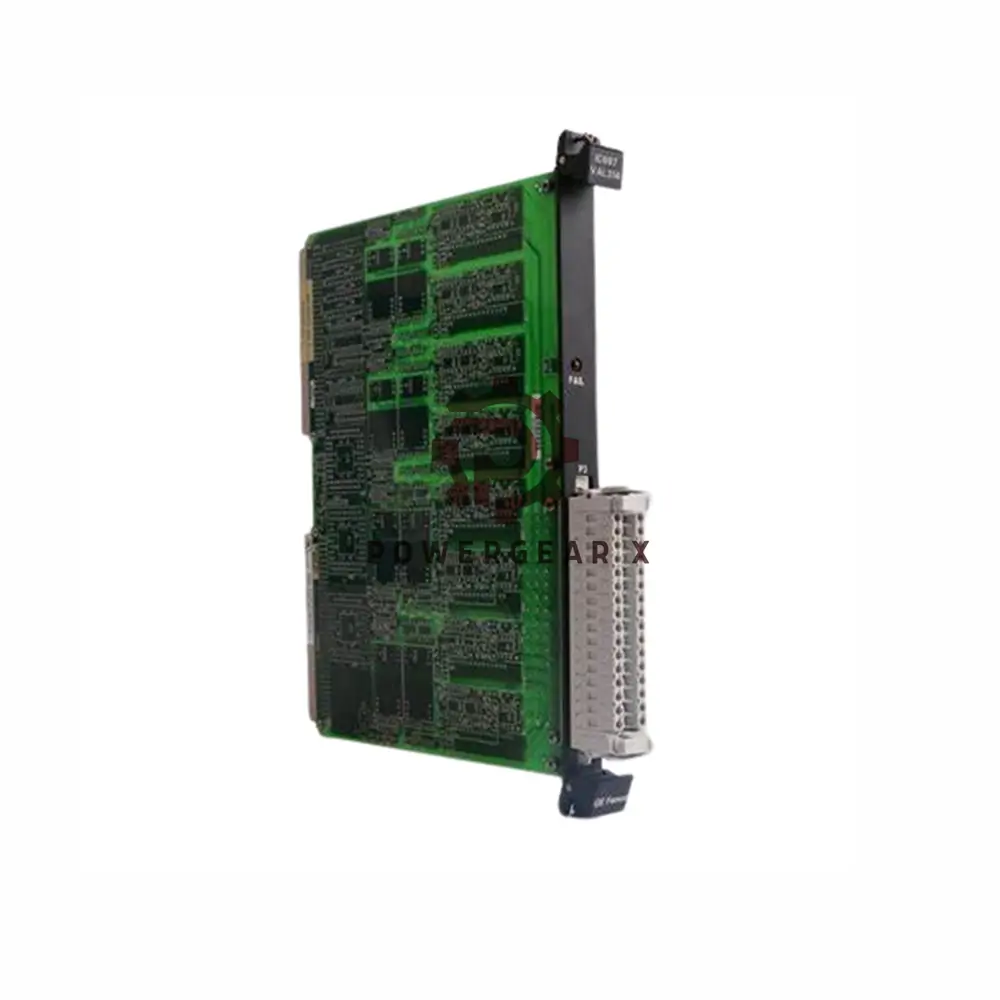

GE Fanuc IC697VAL314 Isolated Analog Output Board

Precision analog control with 1,500V isolation for critical industrial applications. Choose 4 or 8 channels of 12-bit accuracy.

Key Specifications

• Model: IC697VAL314
• Isolation: 1,500V (channel-to-channel & VMEbus)
• Resolution: 12-bit (0.025% linearity)
• Output Types: Voltage (±10V) or Current (4-20mA)
• Accuracy: ±0.08% full scale
• Load Capacity: 10mA @ ±10V
• Form Factor: 6U VMEbus

Top Benefits

• 🔌 Complete isolation eliminates ground loops
• 📊 Multiple output ranges (±10V, 4-20mA, etc.)
• 🛡️ Protected against ±50V transients
• 🧊 Low drift: ±60PPM/°C

Warranty & Shipping

• 12-month warranty
• Global delivery: FedEx, UPS, DHL

Technical FAQs

• Q: Maximum isolation resistance?
  A: 50MΩ between channels
• Q: Current loop options?
  A: 4-20mA, 0-20mA or 5-25mA
• Q: Temperature stability?
  A: ±275μV/°C offset drift
• Q: Output protection?
  A: Handles ±20V continuous, ±50V spikes
• Q: Board addressing?
  A: Configurable for A16 or A24 space
