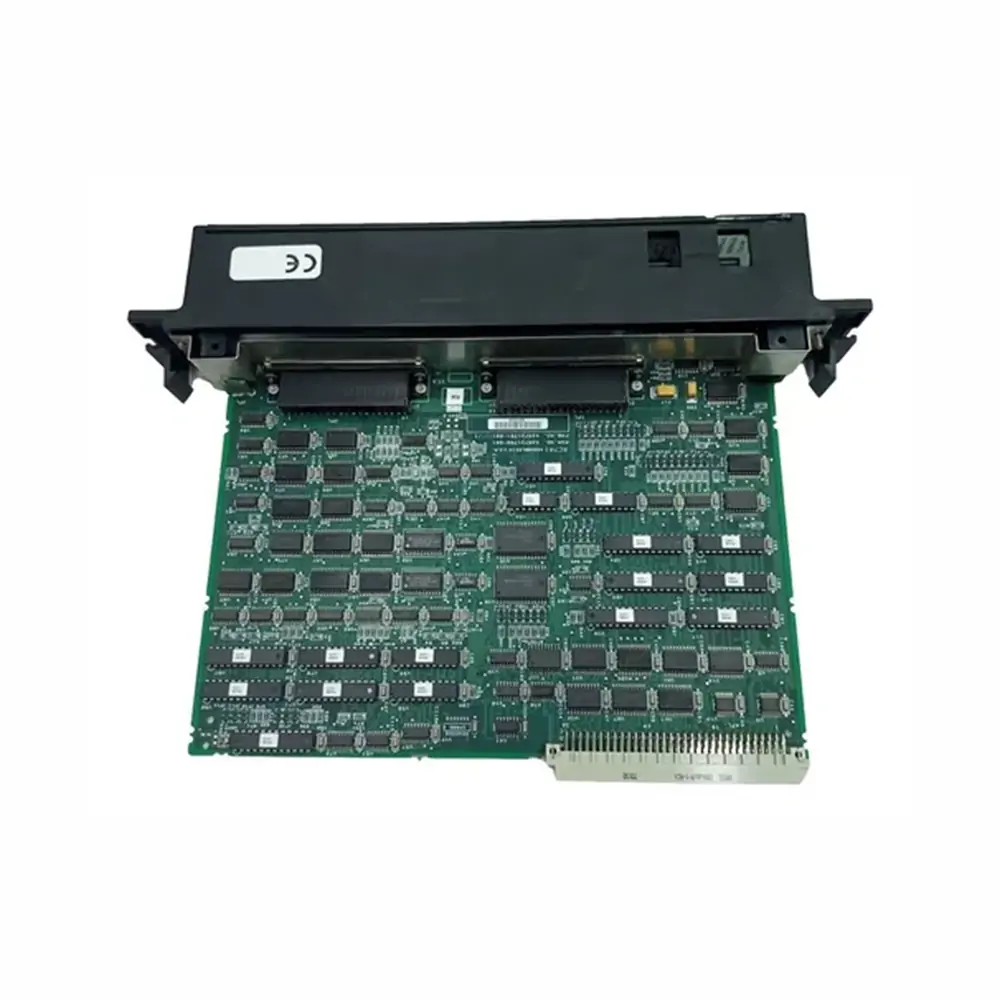

GE Fanuc Series 90-70 IC697RCM711 Redundancy Communications Module

IC697RCM711 Redundancy Communication Module: High-Availability Control for Series 90-70 PLCs

Product Description

Emerson Automation’s IC697RCM711 enables critical redundancy in Series 90-70 PLC systems. This communication module supports Hot Standby and Enhanced Hot Standby CPU configurations, ensuring continuous operation with 15-meter cable range between controllers. Features rapid 500 KB/s data transfer for seamless failover during switchovers.

Technical Specifications

• Brand: GE Fanuc (Former) / Emerson Automation (Current)
• Series: Series 90-70
• Model: IC697RCM711 (Full Suffix)
• Type: Redundancy Communication Module (RCM)
• Data Rate: 500 KB/s
• Current Draw: 1.2A @ 5V
• Max Cable Length: 15m (50ft)
• LED Indicators: OK, Local Ready, Local Active, Remote Ready, Remote Active
• Manual Switchover: Pushbutton control
• Lifecycle Status: Discontinued (Available for legacy support)

Compatibility

• Controllers: IC697CPU780, IC697CGR772, IC697CGR735
• Bus Module: IC697BEM713
• Cables: IC600WD005/010/025/050, IC697CBL811, IC697CBL826
• Termination Plug: IC697ACC702
• Backplane: VME supported

Installation Notes

• Max separation: 15m between CPUs
• Requires terminating plug (IC697ACC702)
• Non-isolated differential communication
• DIN-rail mounting

Warranty & Shipping

• 12-month warranty on all units
• Global shipping: FedEx, UPS, DHL
• Certified refurbished available

Package Contents

• IC697RCM711 module
• Installation guide

FAQ

• Q: Is this IC697RCM711 discontinued?
  A: Yes, but available for legacy system support
• Q: What’s the maximum distance between CPUs?
  A: 15 meters (50 feet) with compatible cables
• Q: Does it support manual switchover?
  A: Yes, via front-panel pushbutton
• Q: What controllers work with this module?
  A: IC697CPU780, IC697CGR772, IC697CGR735
