GE Fanuc Series 90-30 Voltage Output Module IC693MDL751

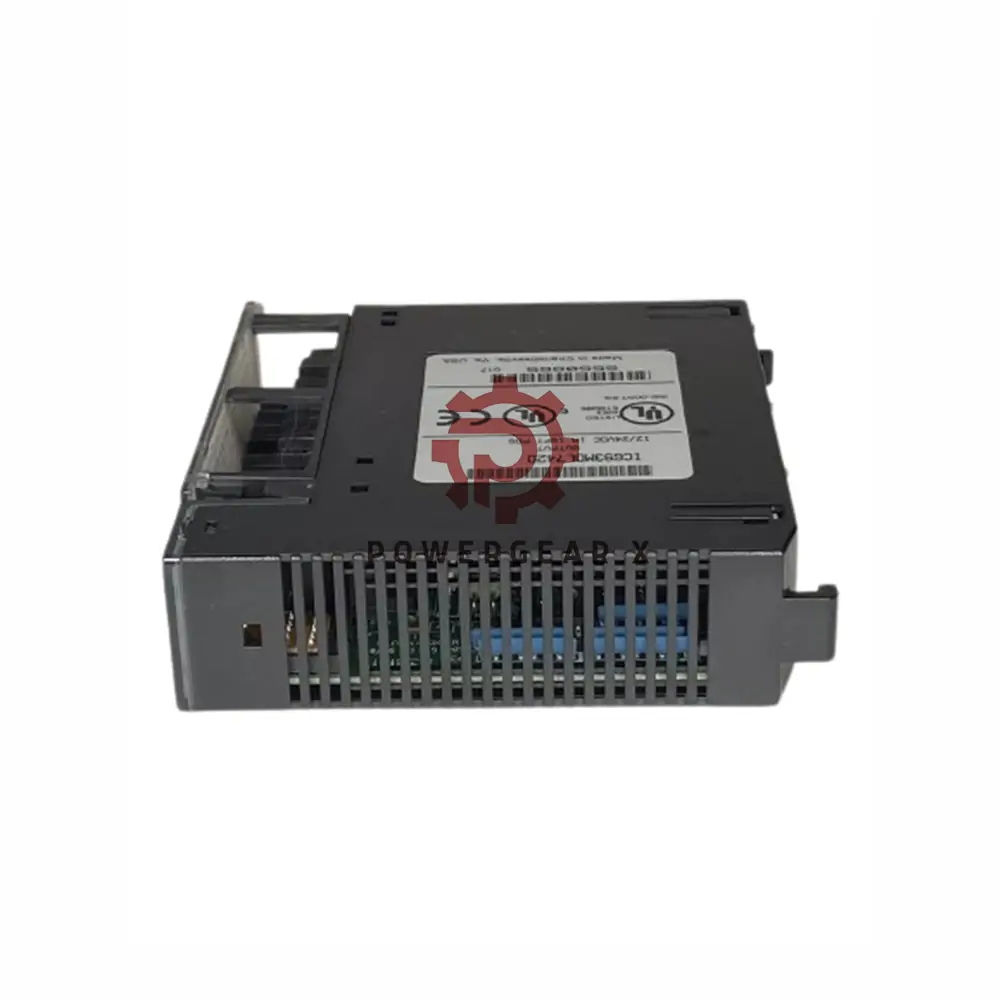

GE Fanuc IC693MDL751 32-Point Positive Logic Output Module for 90-30 PLC

Product Overview

The IC693MDL751 is a 32-point output module with positive logic design. It is built for the GE Fanuc Series 90-30 PLC. This module connects through a 50-pin male Honda connector and supports both direct wiring or terminal block connections. Ideal for controlling lights, solenoids, and relays.

Key Technical Specifications

• Output Points: 32 (4 groups of 8)
• Logic Type: Positive
• Rated Voltage: 12 to 24 VDC (+20%, -15%)
• Peak Current per Point: 0.3 Amps
• Peak Current per Common: 2 Amps
• Output Connector: 50-pin male Honda type
• Current Draw: 21 mA (with all outputs active)
• Isolation: 1500 Volts between field and logic sides
• Output Voltage Drop: 0.24 VDC max
• Off-State Leakage Current: 0.1 mA max

Environmental Conditions

• Humidity: 5 to 95% non-condensing
• Operating Temperature: 0 to 60°C
• Storage Temperature: -40 to 85°C

Installation Guide

• Mounts in any Series 90-30 5-slot or 10-slot baseplate
• Supports direct wiring or DIN rail-mounted terminal blocks
• Use GE Fanuc extension cables (3 ft or 6 ft) for terminal block setup
• Wiring is pin-to-pin and ensures clean field separation
