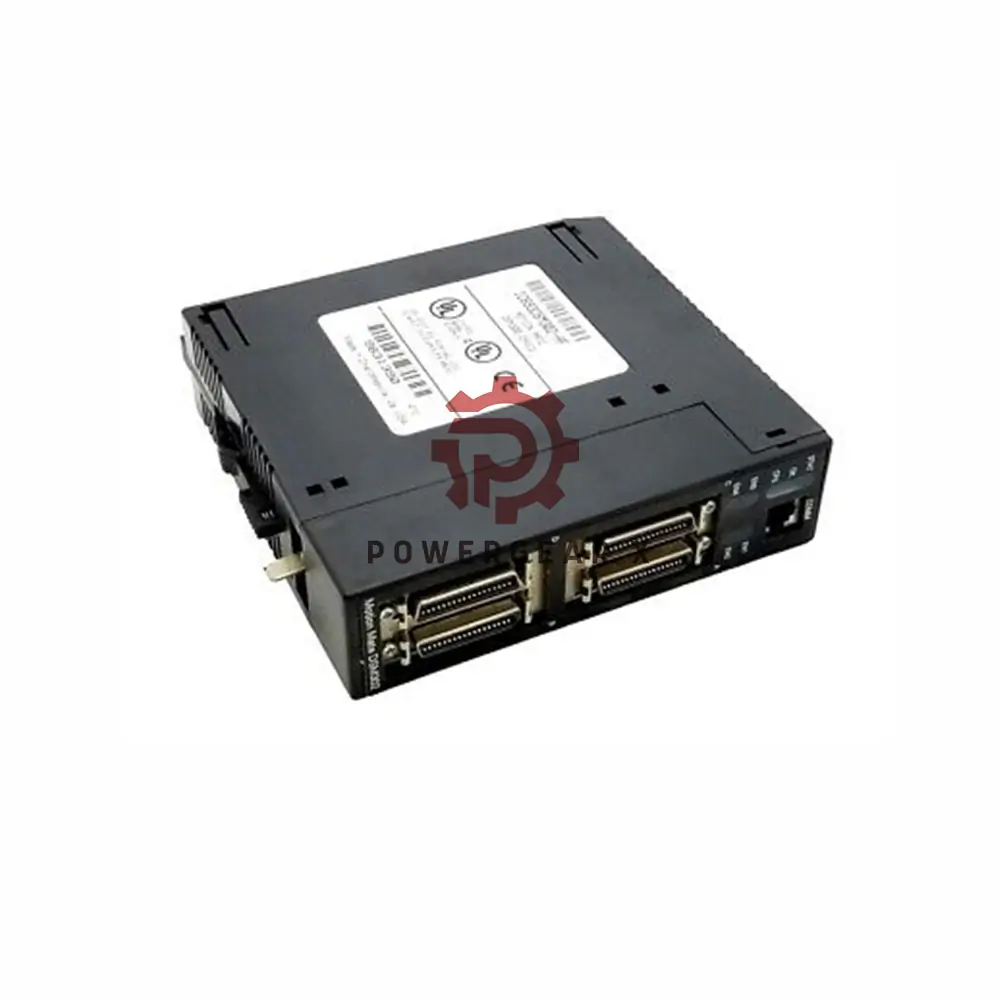

GE Fanuc Series 90-30 Motion Mate Control Module IC693DSM314

IC693DSM314 Motion Controller – 4-Axis Precision for Series 90-30

Powerful Control Simplified

Advanced 4-axis motion control for industrial automation. Handles complex movements with speed and accuracy. Perfect for PLC-driven systems.

Technical Specifications

• Model: IC693DSM314
• Brand: GE Fanuc (Emerson)
• Axes: 4
• Processing Time: <5ms
• Position Range: ±536 million units
• Max Velocity: 8.3 million units/sec
• Max Acceleration: 1 billion units/sec²
• Storage: 10 programs + 40 subroutines
• Power: 450mA @ 5V DC
• Operating Temp: 0°C to 60°C
• IP Rating: IP20 (panel-mounted)
• Vibration: 5g @ 10-500Hz

Performance Features

• 0.5ms velocity loop for smooth motion
• Torque mode operation
• Position error integrator function
• Velocity feed-forward technology
• Backplane motion control

Compatibility

• Series 90-30 PLC systems
• VersaPro configuration software
• CIMPLICITY ME programming
• Analog and digital I/O modules

Warranty & Shipping

• 12-month performance guarantee
• Global delivery: FedEx/UPS/DHL
• Express options: 2-day air available

Installation Notes

• Mount in well-ventilated area
• Maintain 50mm clearance around unit
• Use shielded cables for analog signals
• Ground chassis properly

Technical FAQs

• Q: Can it handle circular interpolation?
  A: Yes, all 4 axes support coordinated motion
• Q: What encoder types are supported?
  A: Quadrature, pulse/direction, and analog
• Q: Is regenerative braking supported?
  A: Yes, through dynamic braking resistors
• Q: Maximum program storage capacity?
  A: 10 main programs + 40 subroutines
• Q: Can I expand beyond 4 axes?
  A: Yes, add modules for up to 32 axes
