GE Fanuc Series 90-30 IC693DNM200 DeviceNet Master Module

IC693DNM200 DeviceNet Master Module

Description

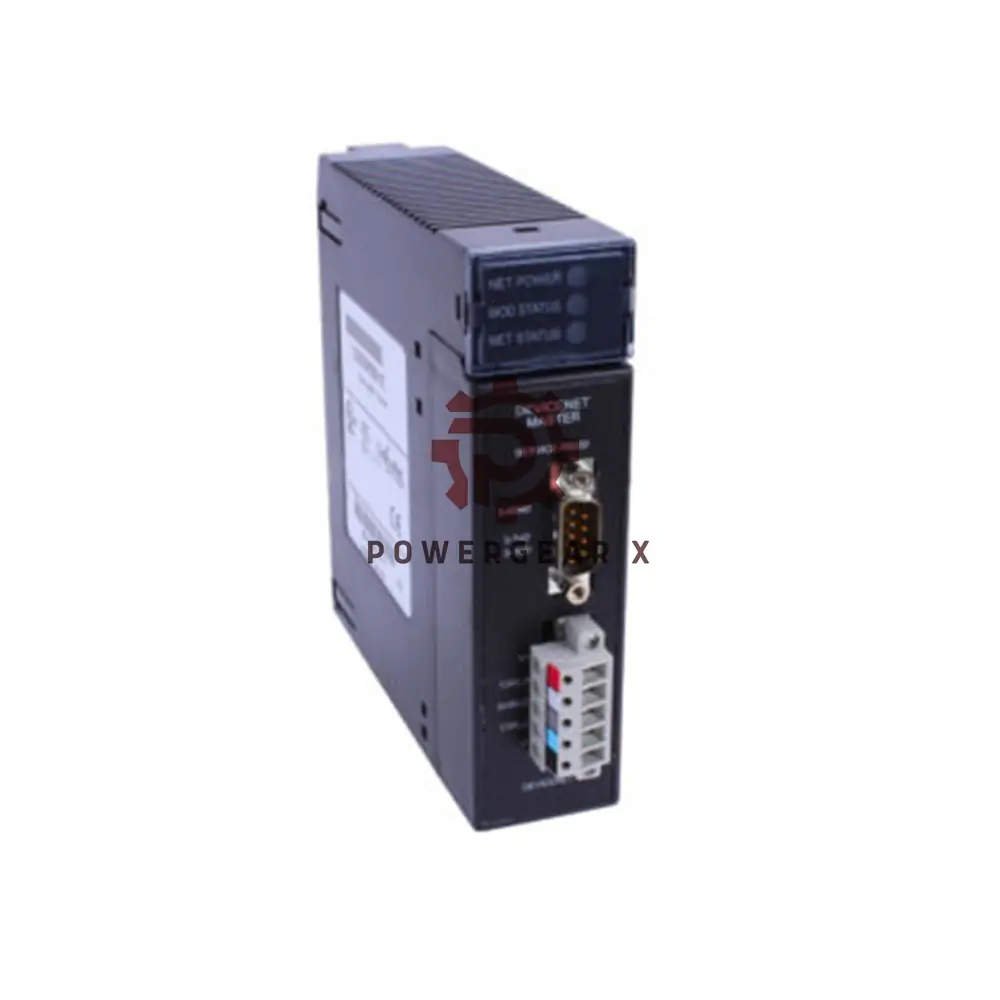

GE Fanuc’s IC693DNM200 is a single-slot DeviceNet Master for Series 90-30 PLCs. It controls up to 63 slave devices with dual-mode operation (Master/Slave). Features include a DeviceNet terminal, RS232 service port, and upgradeable firmware. Ideal for industrial automation networks.

Technical Data

• Brand: GE Fanuc (Emerson Automation)
• Model: IC693DNM200 (Full Suffix: IC693DNM200)
• Data Transfer: 255 Input/Output Bytes per slave
• Speed: 125K, 250K, 500K Baud
• Output Signal: 32 points (0.5A per point)
• Voltage: 12-24V DC (±15%)
• Operating Temp: 0°C to 60°C (32°F to 140°F)
• Response Time: ≤0.5ms

Installation Guide

Mount in any Series 90-30/PACSystems RX3i slot (except 0-1). Ensure backplane current ≤450mA@5V DC. Use shielded cables for noise reduction. Firmware updates via RS232 port.

Compatibility

Works with Series 90-30 and PACSystems RX3i. Not compatible with remote/expansion racks.

Package Contents

• IC693DNM200 Module
• Installation Manual
• DeviceNet Connector Kit

Warranty & Shipping

12-month warranty from delivery. Ships globally via FedEx, UPS, DHL (2-5 business days).

FAQ

Q: Can it run in Master/Slave mode simultaneously?
A: Yes, dual-mode operation is supported.

Q: Maximum cable length?
A: 500m at 125K baud; 100m at 500K baud.

Q: Firmware upgrade process?
A: Use RS232 port with GE Fanuc Proficy software.
