GE Fanuc Series 90-30 I/O Bus Expansion Cables IC693CBL302

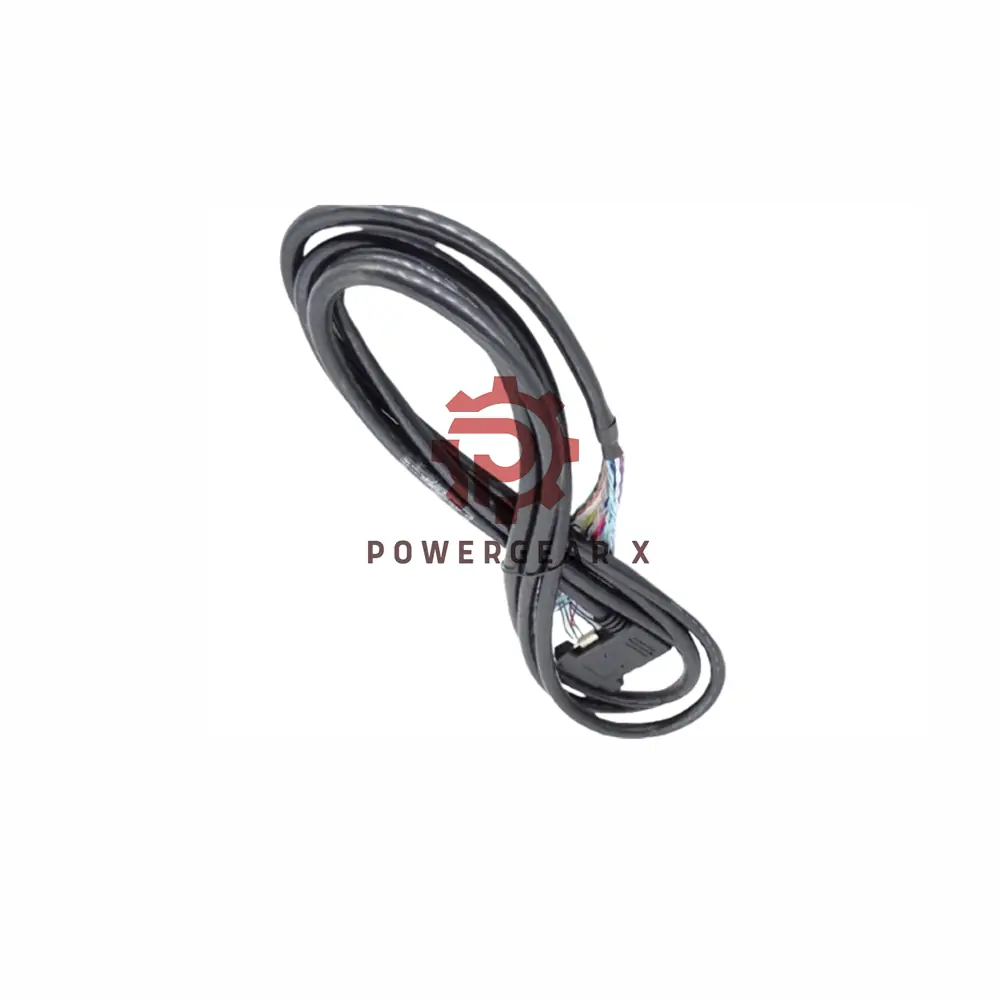

GE Fanuc IC693CBL302 15m I/O Expansion Cable

Maximize your Series 90-30 PLC system’s reach with this end-link expansion cable. Designed as the critical final connection in your PLC rack network, it ensures signal integrity at maximum distances. Features continuous shielding and integrated terminating resistors for noise-free data transmission.

TECHNICAL SPECIFICATIONS

• Brand: GE Fanuc
• Model: IC693CBL302 (Full Suffix)
• Type: I/O Expansion Cable
• Purpose: Bus expansion for remote racks
• Length: 15 meters (Max end-link distance)
• Max System Length: 213 meters (CPU to last rack)
• Connectors:
  • 1st end: Single male connector
  • 2nd end: Terminated male connector
• Resistors: Built-in termination
• Shielding: Continuous EMI protection
• System Limits:
  • CPUs 350-374: Max 7 cables
  • CPUs 331-341: Max 4 cables
• Product Status: Discontinued

INSTALLATION GUIDE

POWER OFF PLC SYSTEM before connecting/disconnecting. Use ONLY as final link in chain. Verify total cable length ≤213m. Ensure terminated end connects to last rack.

COMPATIBILITY

Works with GE Series 90-30 PLCs: CPUs 311, 313, 323, 331, 340, 341, 350, 352, 353, 354, 360, 364, 366, 374. Connects CPU baseplates to remote I/O racks.

PACKAGING

• 1× IC693CBL302 Cable (15m)
• 12-month warranty

SHIPPING

Global delivery via FedEx, UPS, DHL. Tracking provided.

FAQ

Q: Can this be used mid-chain?
A: No. Designed only for end-link position.

Q: Is Wye-connection possible?
A: Not supported. Use only for point-to-point connections.

Q: Safe to hot-swap?
A: Never install with power on – risk of system damage.
