GE Fanuc RX3i Pacsystem IC694MDL741 Output Module

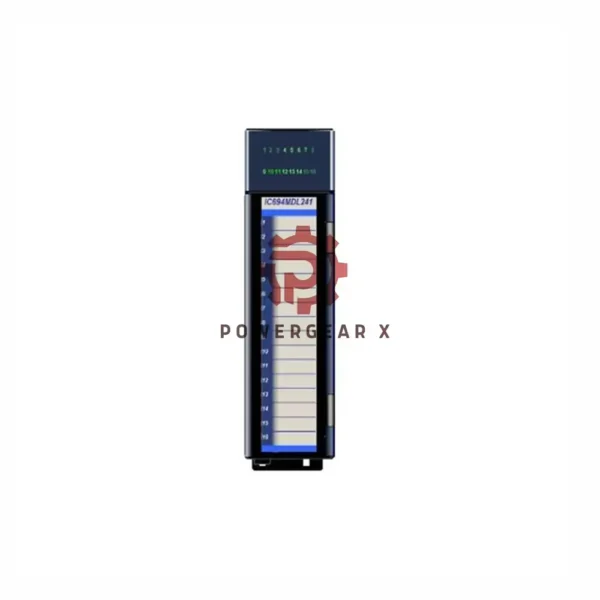

GE Fanuc IC694MDL741 16-Point Negative Logic Output Module

Overview

The IC694MDL741 is a 12/24V DC output module. It uses negative logic and works with GE RX3i systems. It has 16 outputs in 2 groups of 8. Each output can handle up to 0.5A.

Main Features

• Model: IC694MDL741
• Output Type: Negative logic
• Voltage: 12 to 24V DC (+20%, -15%)
• Outputs: 16 total, grouped by 8
• Current: 0.5A per output, 2A per group
• Power Use: 110mA from 5V backplane
• Response Time: 2ms on/off

Electrical Specs

• Voltage Drop: Max 0.5V
• Off-State Leakage: Max 1mA
• Isolation: 250V AC continuous, 1500V AC for 1 minute

Installation Guide

• Works in any RX3i slot
• Easy to install
• Needs external DC power

Benefits

• Stable output control
• Quick response time
• Group isolation improves safety

Package Includes

• 1 x IC694MDL741 Module
• Label strip
• 12-Month Warranty
