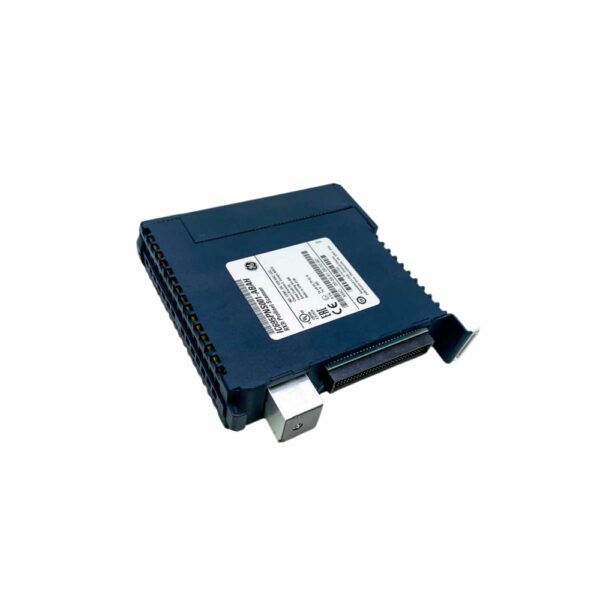

GE Fanuc RX3i IC695PNS001 PROFINET Scanner Module

Overview

The IC695PNS001 is a PROFINET Scanner Module within the PACSystems RX3i product family, manufactured by GE Fanuc / Emerson Automation. Designed to connect remote I/O racks to series 90-30 and RX3i modules within PROFINET I/O networks, this module facilitates efficient communication with various automation components such as HMIs and SCADA systems.

Technical Specifications

• Brand: GE Intelligent Platforms / GE Fanuc
• Model: IC695PNS001
• Extension Meaning: PROFINET Scanner Module
• Series: RX3i PacSystem
• Product Line: RX3i
• Catalog Number: IC695
• Product Type: PROFINET Scanner Module
• Number of Slots: 1 (single slot)
• Backplane Support: Universal
• Protocol Support: PROFINET
• USB Ports: 1 Micro USB (for firmware upgrades)
• Internal Power (5 V DC): 1.1 A
• Internal Power (3.3 V DC): 1.2 A
• Operating Temperature: 0 to 60°C
• Storage Temperature: -40 to 85°C
• Ethernet Ports: 4 switched Ethernet ports supporting 10/100/1000 Mbps
• Supported Topologies: Linear, Star, Daisy Chain, Ring, Redundant Media
• LED Indicators:
  • OK LED
  • LAN LED
  • STATUS LED
  • CONN LED
  • Individual PORT LEDs
  • ACTIVE LED
  • USB LED

Frequently Asked Questions (FAQ)

• What is the main function of the IC695PNS001?
  The IC695PNS001 acts as a bridge for remote I/O communication in a PROFINET network.
• How many Ethernet ports does it have?
  It features four switched Ethernet ports.
• Can the firmware be upgraded?
  Yes, through the micro USB port.
• What topologies does it support?
  It supports linear, star, daisy-chain, ring, and redundant media topologies.
• What is the operating temperature range?
  The operating temperature ranges from 0 to 60 degrees Celsius.
