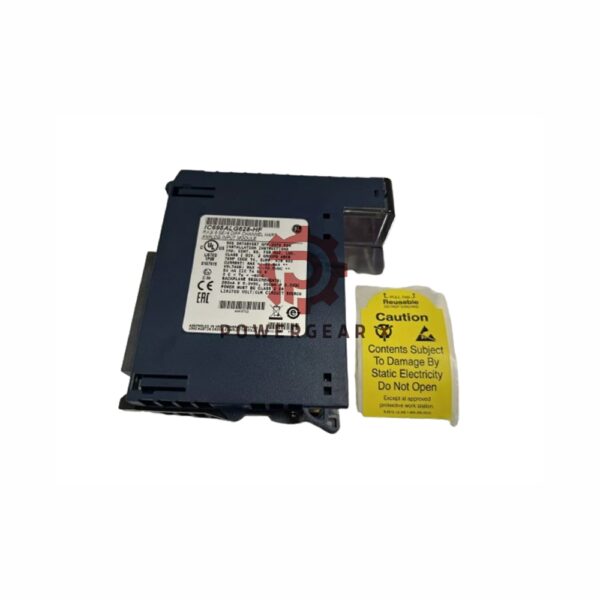

GE Fanuc RX3i IC695ALG628 Analog Input Module HART

Overview:

The GE Fanuc IC695ALG628 is an advanced non-isolated analog input module designed for the PACSystem RX3i platform, part of Emerson Automation (formerly GE Intelligent Platforms). It supports a range of input signals, including voltage and current configurations, and is equipped with HART communication capabilities (version 5.0). This module provides flexible configuration options, allowing you to choose between 8 single-ended or 4 differential channels. It features built-in analog-to-digital conversion (ADC) and offers a high-resolution 24-bit conversion with floating point or integer output.

Technical Specifications:

• Brand: GE Fanuc (Emerson Automation)
• Model: IC695ALG628
• Part Number: IC695ALG628
• Module Type: Non-isolated Analog Input with HART Communication
• Channels: 8 single-ended or 4 differential channels
• HART Protocol: Supported (Version 5.0)
• Voltage Input Range: +/-10V DC, 0-10V DC, +/-5V DC, 0-5V DC, 1-5V DC
• Current Input Range: 0-20mA, 4-20mA, +/-20mA
• Resolution: 24-bit ADC with floating point or integer format
• Internal Power: 3.3V @ 600mA, 5V @ 450mA
• Power Consumption: 4.83W maximum
• Filter Options: 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 500Hz
• Operating Temperature: 32°F to 140°F (0°C to 60°C)
• Storage Temperature: -40°F to 185°F (-40°C to 85°C)
• Overvoltage Protection: +/-60V DC (continuous)
• Overcurrent Protection: +/-28mA (continuous)
• HART Modems: 2 internal modems
• Input Impedance: >100kΩ (voltage inputs)
• Humidity: 5-95%, non-condensing
• Autocalibration: Performed during power-up
• Backplane Power Consumption: 330mA max @ 5V, 600mA max @ 3.3V

Terminal Blocks Compatibility:

• IC694TBB032 (Box-style)
• IC694TBB132 (Extended Box-style)
• IC694TBS032 (Spring-style)
• IC694TBS132 (Extended Spring-style)
