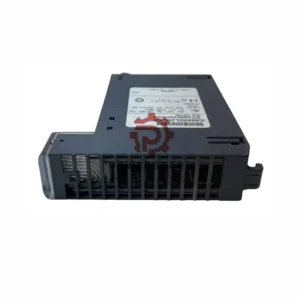

GE Emerson PACSystem RX3i 120V AC Input Module – IC694MDL240
Description
Industrial-grade discrete input module for PACSystem RX3i PLCs. Manufactured by GE Fanuc (now Emerson Automation). Features 16 optically isolated channels with LED status indicators. Ideal for high-availability systems requiring reliable 120V AC signal monitoring.
Technical Specifications
| Brand | GE Fanuc / Emerson |
| Model | IC694MDL240 (Full suffix: IC694MDL240) |
| Input Channels | 16 points (single group) |
| Voltage Range | 0-132V AC |
| On-State Voltage | 74-132V AC |
| Nominal Current | 12mA @ 120V AC |
| Response Time | 30ms ON / 45ms OFF |
| Backplane Power | 90mA @ 5V DC |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
Installation Guide
- Mount in any vacant RX3i backplane slot (single-slot width)
- Connect external AC power to input terminals
- Common terminal for all 16 channels
- Red band indicates high-voltage module
Compatibility
- PACSystems RX3i PLC platforms
- 120V AC input devices: push-buttons, limit switches, proximity sensors
- Not compatible with DC voltage systems
Packaging Includes
- 1x IC694MDL240 Input Module
- Installation documentation
- No certificates included
Shipping & Warranty
- Global express: FedEx / UPS / DHL
- 12-month manufacturer warranty
FAQ
Q: Are channels individually isolated?
A: Yes, all 16 channels feature 250V optical isolation
Q: Can I use this with 24V DC systems?
A: No, designed exclusively for 120V AC inputs
Q: How to verify module status?
A: Each channel has LED indicators for real-time monitoring
