GE Fanuc IC698CPE020 | RX7i CPU

Overview

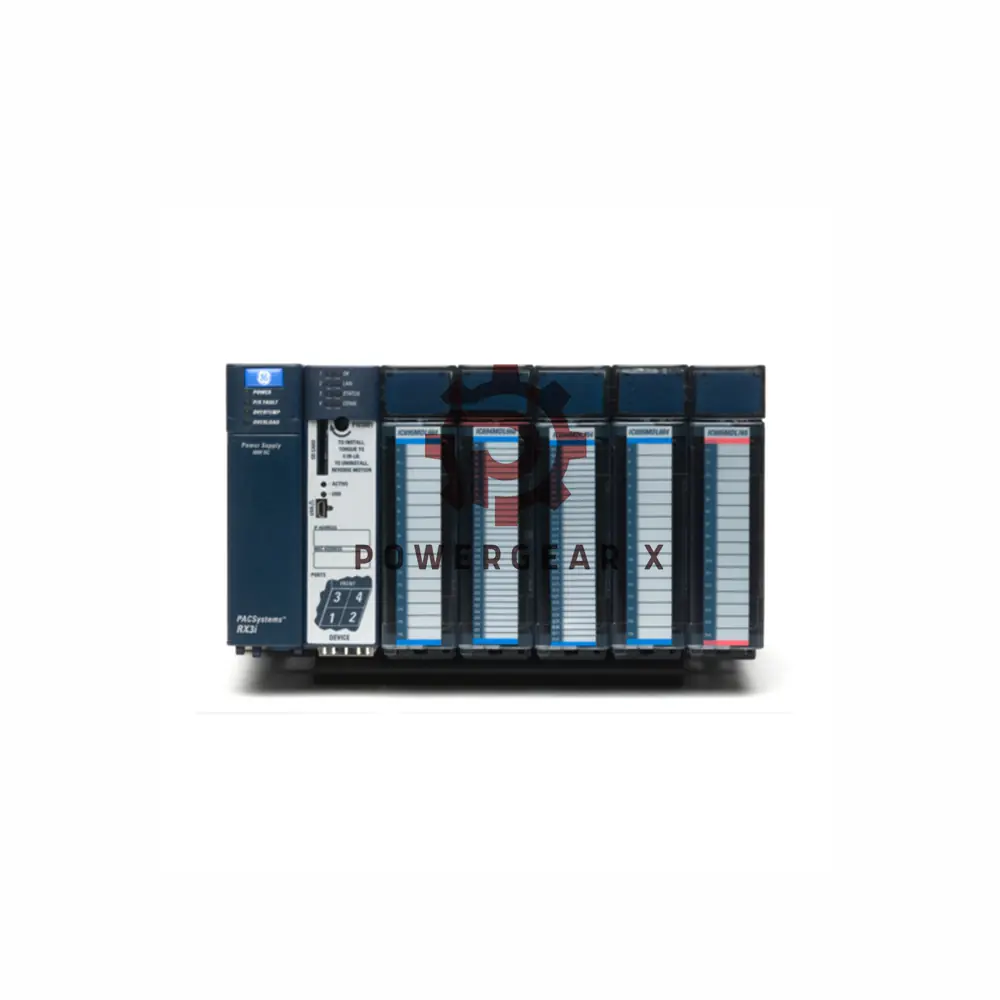

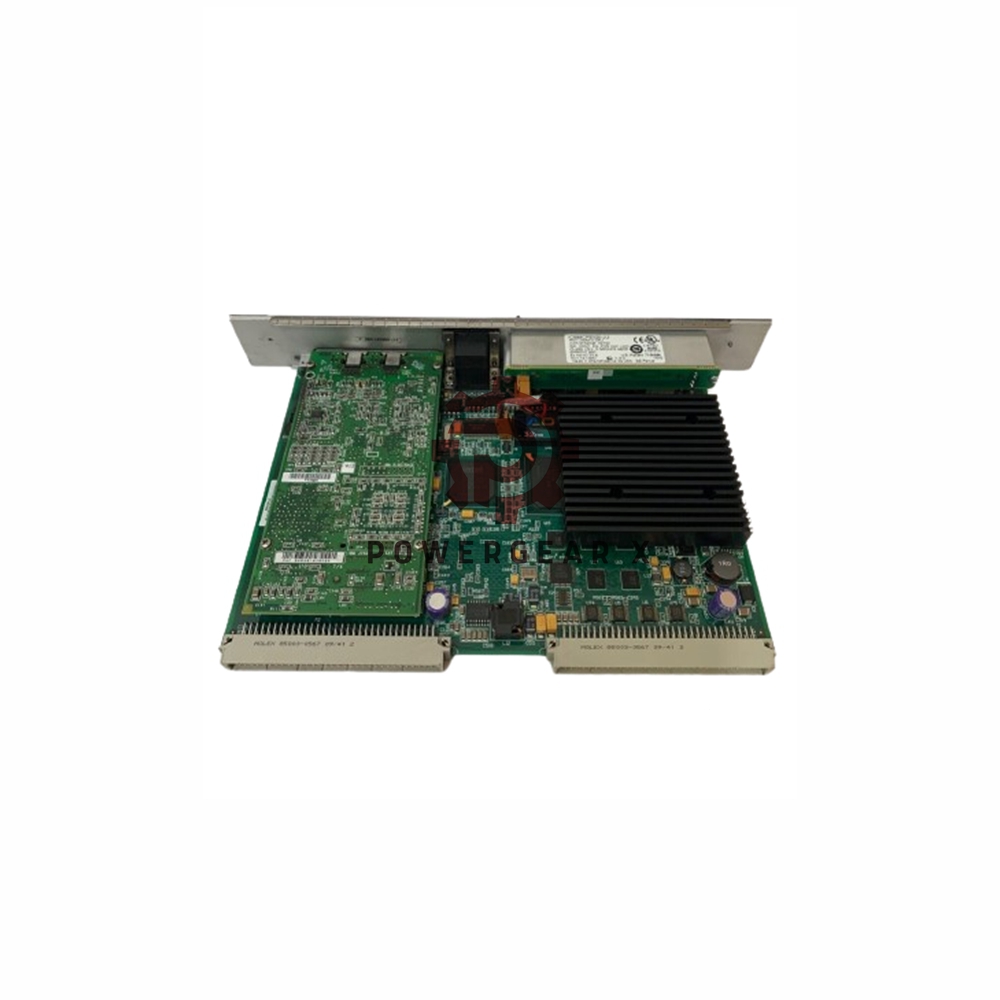

The IC698CPE020, manufactured by GE Automation, is a high-performance CPU from the PACSystems RX7i series, designed for real-time machine control and communication with rack modules via a standard VME backplane. This device is ideal for complex automation tasks in industrial applications, offering flexibility and reliable processing power.

Features:

• 700 MHz Pentium III microprocessor for efficient processing
• 10 MB of RAM and 10 MB of non-volatile flash memory
• Supports up to 512 program blocks with Ladder Diagram, C, and Structured Text programming
• Floating-point operations for high precision
• Built-in support for Ethernet, RS-232, and RS-485 serial ports
• Up to 16 web and FTP server connections for monitoring
• Supports protocols like Modbus RTU Slave, SNP, and Modbus TCP Server
• Programming flexibility with multiple languages including Ladder Diagram and C

Technical Specifications:

• Brand: GE Fanuc (now GE Intelligent Platforms, part of Emerson Automation)
• Model: IC698CPE020
• Part Number: IC698CPE020
• Application: Used in PACSystems RX7i applications for real-time control and communication
• Processor Speed: 700 MHz Pentium III
• CPU Memory: 10 MB user logic RAM
• Floating Point Operations: Supported
• Flash Memory: 10 MB
• Serial Ports: 3 (RS-232, RS-485, Station Manager)
• Ethernet Ports: 2 (RJ45, Auto 10/100)
• I/O Memory: 32 Kbits Discrete I/O, 32 KWords Analog I/O
• Voltage Range: 5 to 12 VDC
• Current Rating: 4.3 Amps
• Programming Languages: Ladder Diagram, C, Structured Text, Function Block Diagram
• Supported Protocols:
  • Ethernet: EGD, SRTP, Modbus TCP Server/Client
  • Serial: Modbus RTU Slave, SNP, Serial I/O
• Ethernet Data Rate: 10 Mbps, 100 Mbps
• Maximum Program Block Size: 128 KB
• Redundancy Support: Yes (Controller and Media)

FAQ:

1. What is the maximum number of program blocks supported?
   • The IC698CPE020 supports up to 512 program blocks.
2. Which serial communication protocols are supported?
   • The device supports Modbus RTU Slave, SNP, and Serial I/O protocols.
3. How can I update the firmware?
   • Firmware can be updated by connecting the device to a computer and running the update software.
4. What programming languages can be used with the IC698CPE020?
   • Supported programming languages include Ladder Diagram, C, Structured Text, and Function Block Diagram.
5. How many Ethernet connections can be made for web monitoring?
   • The device supports up to 16 simultaneous web and FTP server connections.
