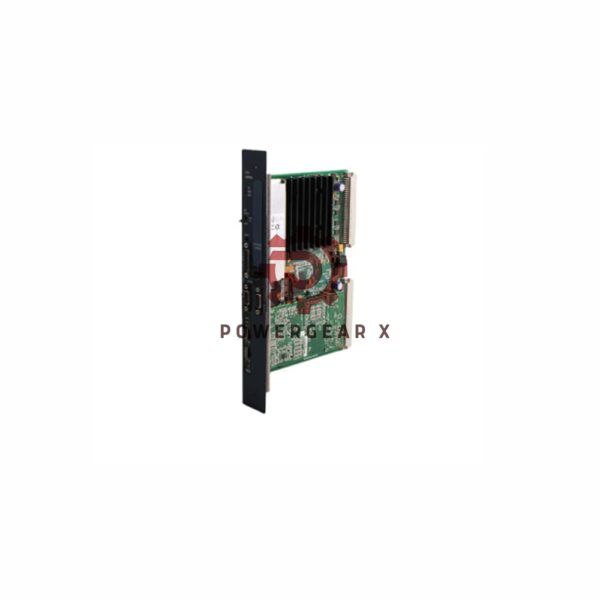

GE Fanuc IC698CPE010 | RX7i VME 300Mhz CPU

Overview

The GE Fanuc IC698CPE010 is a robust Central Processing Unit (CPU) designed for industrial automation within the RX7i PACSystems series. This powerful device is ideal for controlling various industrial machinery and processes. Equipped with a 300 MHz Celeron processor, it efficiently handles real-time operations and communicates seamlessly with other systems. Featuring multiple communication options, including Ethernet, RS-232, and RS-485, this CPU ensures versatile connectivity.

Key Features

• Processor: 300 MHz Celeron microprocessor capable of floating-point operations.
• Memory: 10 MB of RAM for data and programming, backed by CMOS battery; an additional 10 MB of non-volatile flash memory.
• Ports: Three serial ports and two Ethernet ports (supports RS-232, RS-485, and Ethernet interfaces).
• Connectivity: Supports Modbus RTU Slave, SNP, and Serial I/O protocols.
• Programming Languages: Compatible with Ladder Diagram (LD), Structured Text (ST), and Function Block Diagram (FBD).
• Control Modes: Features Test Edit mode for live program modifications.
• Web Server & FTP: Can monitor up to 16 web server and FTP connections.
• Temperature Range: Operating temperature from 0°C to 60°C.
• Compact Design: Weighs only 6.3 kg and mounts easily on a rack with the VME64 backplane.

Technical Specifications

• Brand: GE Fanuc
• Model: IC698CPE010
• Processor Speed: 300 MHz
• RAM Memory: 10 MB
• Non-Volatile Memory: 10 MB flash memory
• Serial Ports: 3 (Supports Modbus RTU Slave, SNP, Serial I/O)
• Ethernet Ports: 2
• Protocols: Modbus RTU, SNP, Serial I/O
• Power Requirements: 5V bus voltage, 3.2 Amps
• Current Rating: 3.2 Amps
• Memory Retention: 40 days on nominal power
• Accuracy: 9 seconds per day
• Web Server Monitoring: Up to 16 connections

Application

The IC698CPE010 is suitable for various industrial control applications, from simple automation tasks to complex machinery management. It can be used in environments where real-time control, data monitoring, and high-speed processing are required, such as in manufacturing plants, material handling systems, and process control.

FAQ

Q1: How do I connect the IC698CPE010 CPU to a computer?

• The device can be connected via Ethernet or serial ports. Ethernet requires IP addressing and a Cat5 cable, while the serial connection uses the SNP protocol.

Q2: Can I upgrade the firmware of the IC698CPE010?

• Yes, the firmware can be updated directly via flash memory, eliminating the need for hardware replacement or EPROM updates.

Q3: What is the maximum number of program blocks supported?

• The IC698CPE010 supports up to 512 program blocks.

Q4: What programming software is required for the IC698CPE010?

• Proficy Machine Edition PLC-Logic Developer is used for configuration and programming.
