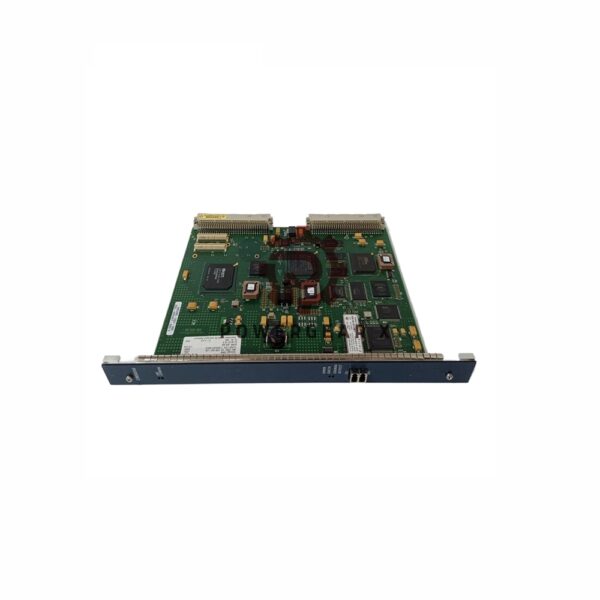

GE Fanuc IC698CMX016 | Control Memory Xchange Module

Overview

The GE Fanuc IC698CMX016 is a Control Memory Xchange module designed for the PACSystems RX7i Series. It facilitates seamless communication between programmable logic controllers (PLCs) and connected devices, enabling high-speed data transfer across a network of devices. This module is ideal for applications requiring reflective memory technology and fast data synchronization across multiple nodes.

Key Features:

• High-Speed Data Transfer: Effective data rate of 2.12 gigabaud for rapid communication.
• Reflective Memory Technology: Enables seamless data transfer across a network of up to 256 nodes, all with 5565 device compatibility.
• Redundant Communication: Daisy-loop pattern ensures reliable message relaying with no delay.
• Memory Storage: 16 MB of reflective memory for data storage and processing.
• Data Transfer Rate: Between 6.2 MB/s and 3.2 MB/s, depending on the redundancy.
• Access Time: Varies between 400 ns and 200 ns.
• Connectivity: 62.5-micron core LC type connector.
• Power Requirements: 5V bus with a minimum current of 1.2A.

Technical Specifications:

• Brand: GE Fanuc
• Model: IC698CMX016
• Series: PACSystems RX7i
• Effective Data Rate: 2.12 gigabaud
• Reflective Memory: 16 MB
• Data Transfer Rate: 6.2 MB/s to 3.2 MB/s
• Access Time: 400 ns to 200 ns
• Connector Type: 62.5-micron core LC type
• Power Consumption: 1.2A minimum (5V bus)
• Network Capacity: Up to 256 nodes
• Installation: Daisy-loop network pattern

FAQ:

1. What is the IC698CMX016 used for?
   • It is used to facilitate high-speed communication between PLCs and connected devices in a PACSystems RX7i environment.
2. How many nodes can the network support?
   • The network can host up to 256 nodes, ensuring scalability for large systems.
3. What is the effective data rate?
   • The module has an effective data rate of 2.12 gigabaud, offering fast communication for real-time data processing.
4. What type of connector does it use?
   • The IC698CMX016 uses a 62.5-micron core LC type connector for installation.
