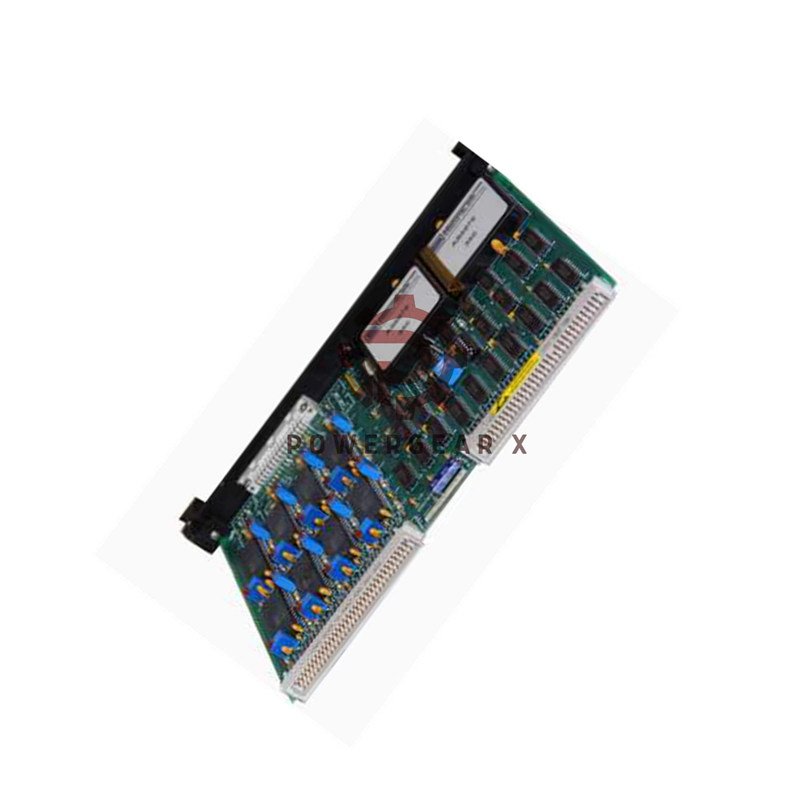

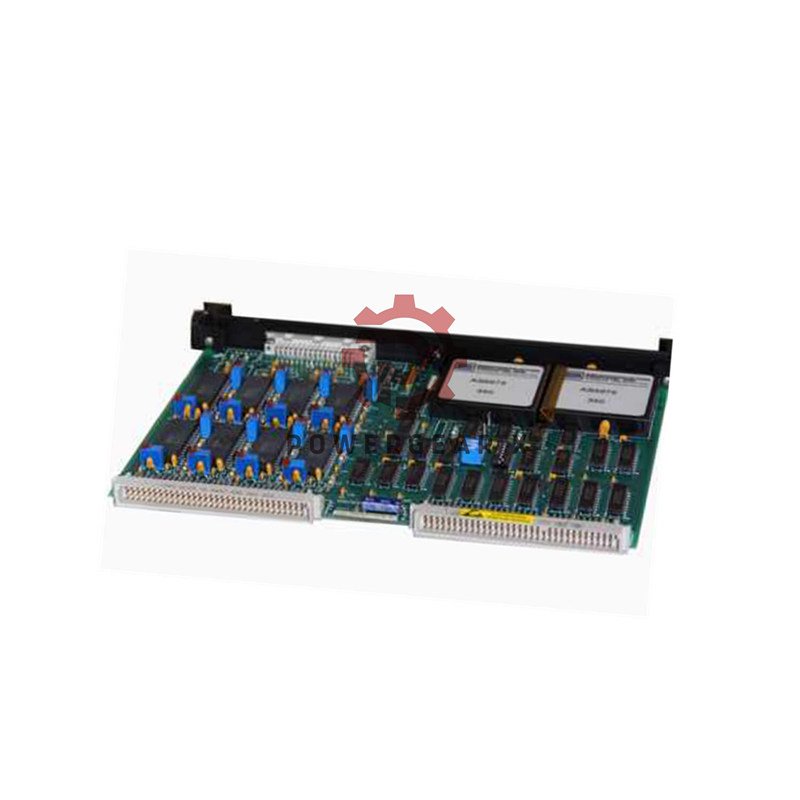

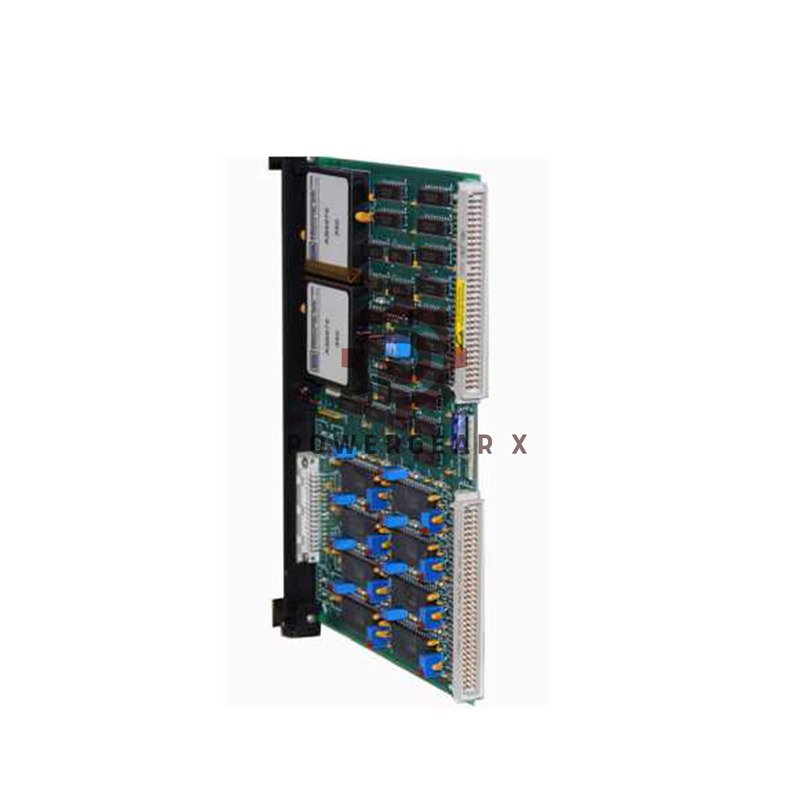

GE Fanuc Automation IC697VAL348 Overview
Author: Powergear X Automation
The IC697VAL348 is an 8-channel DAC board with fast output, simple setup, and stable 16-bit performance. It delivers clear analog signals for many control tasks.
Main Features
- 8 analog output channels
- 16-bit resolution for smooth signals
- 10 V buffered output at 5 mA
- Front panel Fail LED
- High-reliability DIN connector
- Double Eurocard size
- 6 factory jumpers for setup
- Works with positive or complementary coding
- Fits VMEbus slots (not master slot)
- Stable output drift under 0.01%/°C
- Typical settling time: under 12 μs
- Output impedance under 1 Ω
- 12-month warranty
- Fast shipping: FedEx / UPS / DHL
Technical Data
- Manufacturer: GE Fanuc Emerson
- Model: IC697VAL348
- Product Line: Series 90-70
- Type: Digital-to-Analog Converter Board
- Weight: 3.00 lbs (1.36 kg)
- D/A Converter: 1 per channel
- Voltage Output: 0–10 V
- Max Output Current: 5 mA
- Resolution: 16 bits
- Jumper Switches: JA, JB, JC, JD, JE, S1, S2
- Base Address Select: Yes
- Start Convert Modes: Local / External
- Operating Temp: 0–60°C
- Shock Rating: 10 G for 11 ms
Why Choose IC697VAL348
- Clean, stable analog output
- Good for PLC upgrades
- Easy jumper setup
- Low noise and fast response
- Ideal for automation and motion control
FAQ
How do I check if the board is installed correctly?
You can confirm installation by checking the Fail LED and verifying slot position before power-up.
What should I do if the output signal looks unstable?
Check grounding, jumper settings, and load current. Most issues come from wiring or load mismatch.
Can the IC697VAL348 work in mixed analog systems?
Yes. The board handles clean 0–10 V output and works well with most industrial analog inputs.
How often should the board be recalibrated?
Most users recalibrate yearly or when drift is noticed in long-running systems.
What is the best way to reduce noise during operation?
Use shielded cables, correct grounding, and avoid placing the board near high-EMI components.
