Product details
Precision Signal Conversion for Industrial Automation

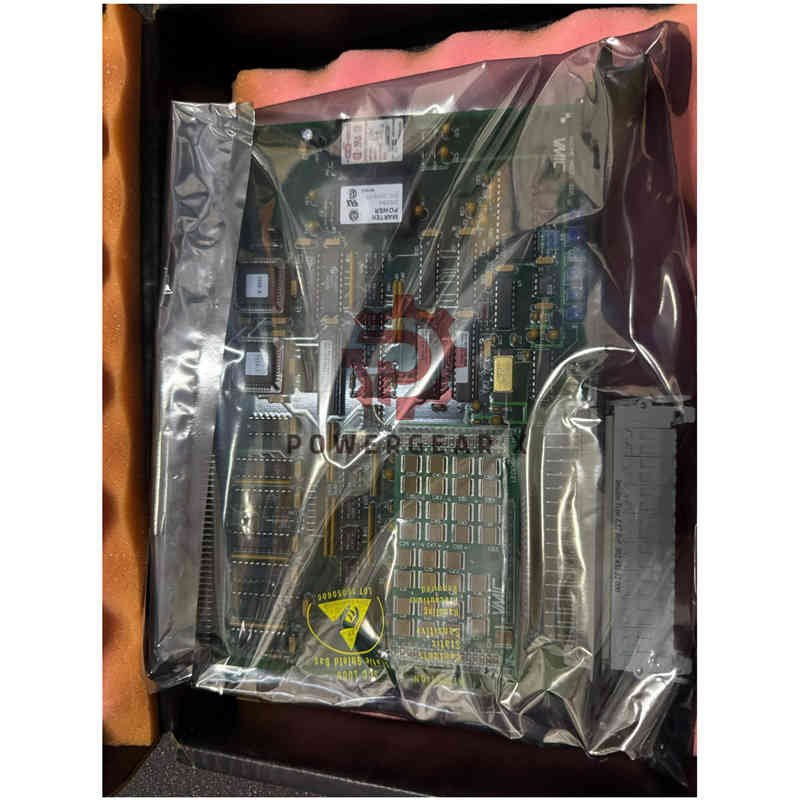

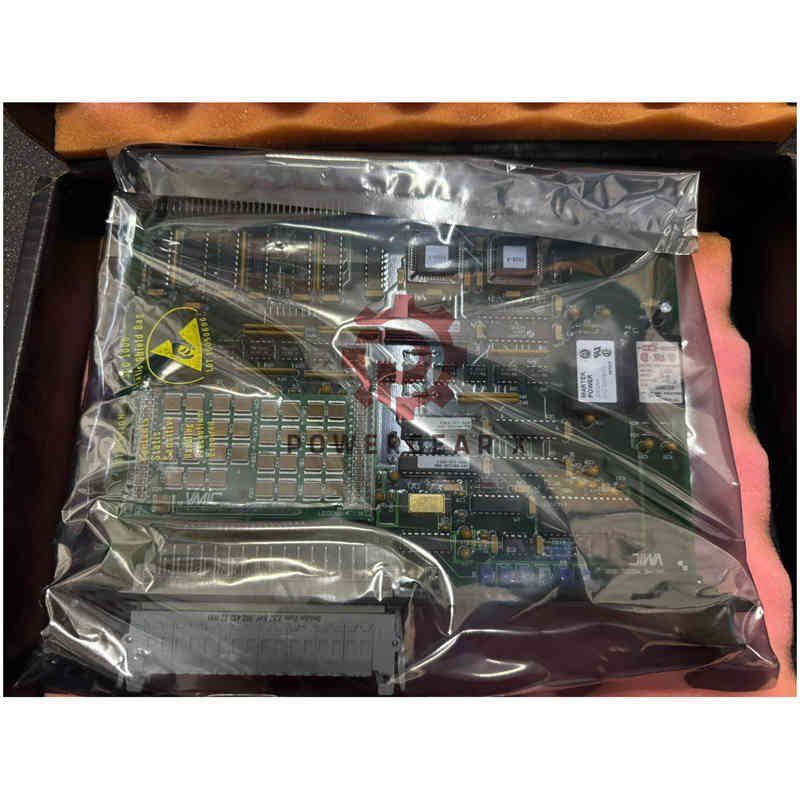

The IC697VAL134 converter board delivers accurate analog-to-digital conversion for your PLC systems. This GE Fanuc board handles 31 input channels with 12-bit resolution. It automatically scans signals without requiring additional software. The IC697VAL134 ensures reliable performance in demanding industrial environments.
Critical Technical Parameters
- Manufacturer: GE Fanuc Emerson
- Model Number: IC697VAL134
- Product Series: Series 90-70
- Board Type: ADC Converter Board
- Resolution: 12-bit
- Input Channels: 31 single-ended
- Scanning Rate: 40 kHz aggregate
- Voltage Range: ±50 mV to ±10 VDC
- Isolation Rating: 1000 VDC
- Board Weight: 3.00 lbs (1.36 kg)
- I/O Space: 128 bytes VMEbus
Product Advantages
- High-speed 40 kHz scanning capability
- 12-bit resolution for precise measurements
- 31 channels for multiple signal inputs
- 1000 VDC isolation for safety
- Front panel LED status monitoring
- Automatic operation without software
- Factory-calibrated 40 Hz input filters
- Overvoltage protection on all inputs
- Easy installation with jumper configuration
Installation Guidelines
- Always disconnect power before installation
- Install in leftmost slot of Series 90-70 rack
- Use proper ESD protection during handling
- Verify all cable connections are secure
- Check LED indicators for proper status
- Allow adequate space for ventilation
- Ensure rack mounting is secure
Shipping & Warranty Information
- Express shipping via FedEx, UPS, and DHL
- Same-day processing for orders before 3 PM
- 12-month comprehensive warranty
- Global shipping to 150+ countries
- Real-time tracking provided
- Insurance included for all shipments
Professional Technical Support
- 20+ years automation experience
- Direct technical support available
- Quick response within 2 hours
- Contact: sales@powergearx.com
- WhatsApp: +86 18030005825
- Extended support hours available
Expert Technical Questions
- What does the 40 kHz aggregate scanning rate mean?
It means the board can process all 31 channels totaling 40,000 times per second.
- How does the 1000 VDC isolation protect the system?
It prevents high voltage spikes from damaging sensitive components.
- Can I adjust the input voltage range?
No, the ±50 mV to ±10 VDC range is fixed for this model.
- What maintenance ensures long-term accuracy?
Regular calibration and visual inspection of connections.
- How many boards can I install in one system?
Multiple boards can be installed using different address boundaries.
