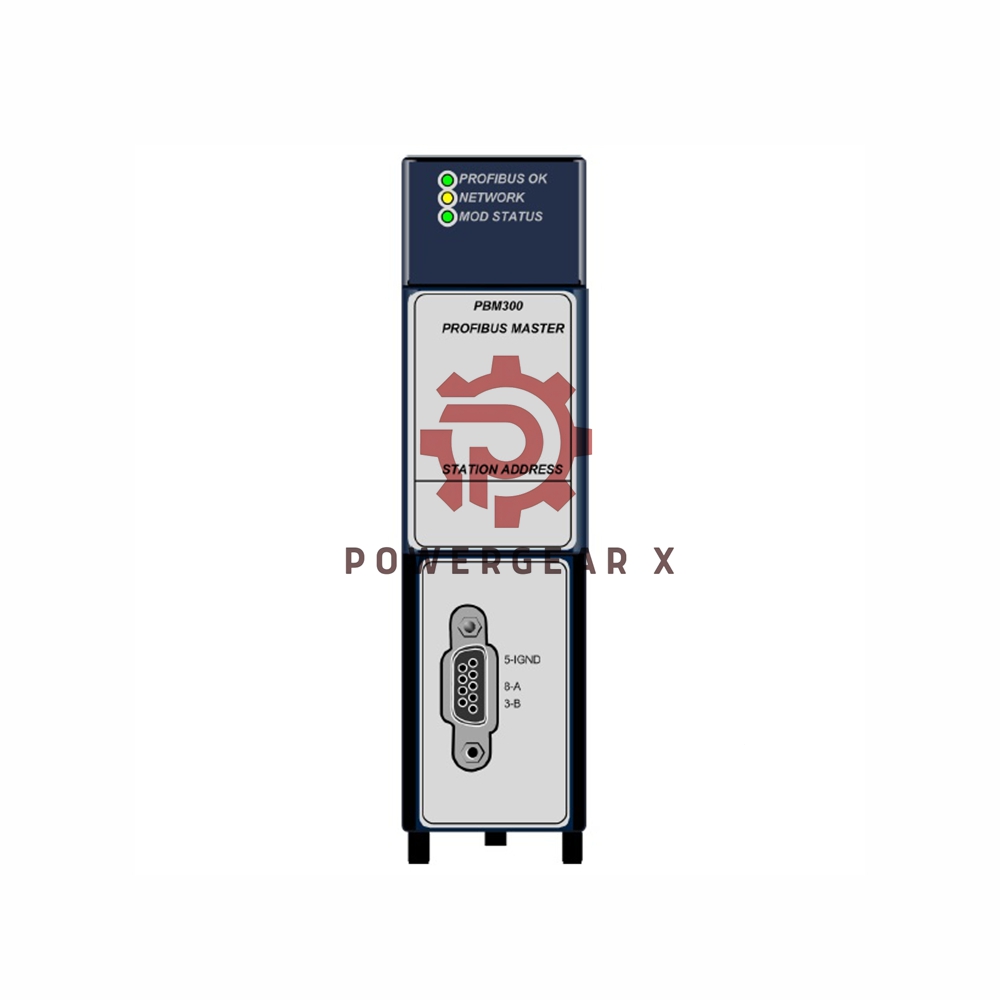

GE Fanuc IC695PBM300 PROFIBUS Master Module

Overview

The IC695PBM300 is a Profibus DP Master module designed for use with the PACSystems RX3i platform, formerly known under GE Intelligent Platforms (now part of Emerson Automation). This module facilitates communication between a master controller and up to 125 Profibus DP slave devices, enabling the transfer of up to 3,584 bytes of input and 3,584 bytes of output data.

Key Features and Specifications:

• Brand: GE Intelligent Platforms / Emerson Automation
• Product Type: PROFIBUS Master Module
• Series: PACSystems RX3i
• Part Number: IC695PBM300
• Communication Interface: 1 Profibus Master Port (RS485)
• Max Supported DP Slaves: 125
• Input Data per Slave: 244 Bytes
• Output Data per Slave: 244 Bytes
• Total Input/Output Data: 3,584 Bytes each
• Baud Rates Supported:
  • 9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M, 12M Baud
• Protocol: PROFIBUS-DP
• Number of Slots: 1 (single-slot installation)
• Backplane Compatibility: RX3i PCI, Universal
• Power Consumption: 440 mA @ 3.3V DC
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Module Indicators: PROFIBUS OK, Network Status, MOD Status
• Diagnostic Features:
  • Slave Status Bit Array Table
  • Network and Master Diagnostic Counters
  • Slave Diagnostic Address
• Firmware: Upgradable via WinLoader utility
• Mounting Location: RX3i PCI Slot
