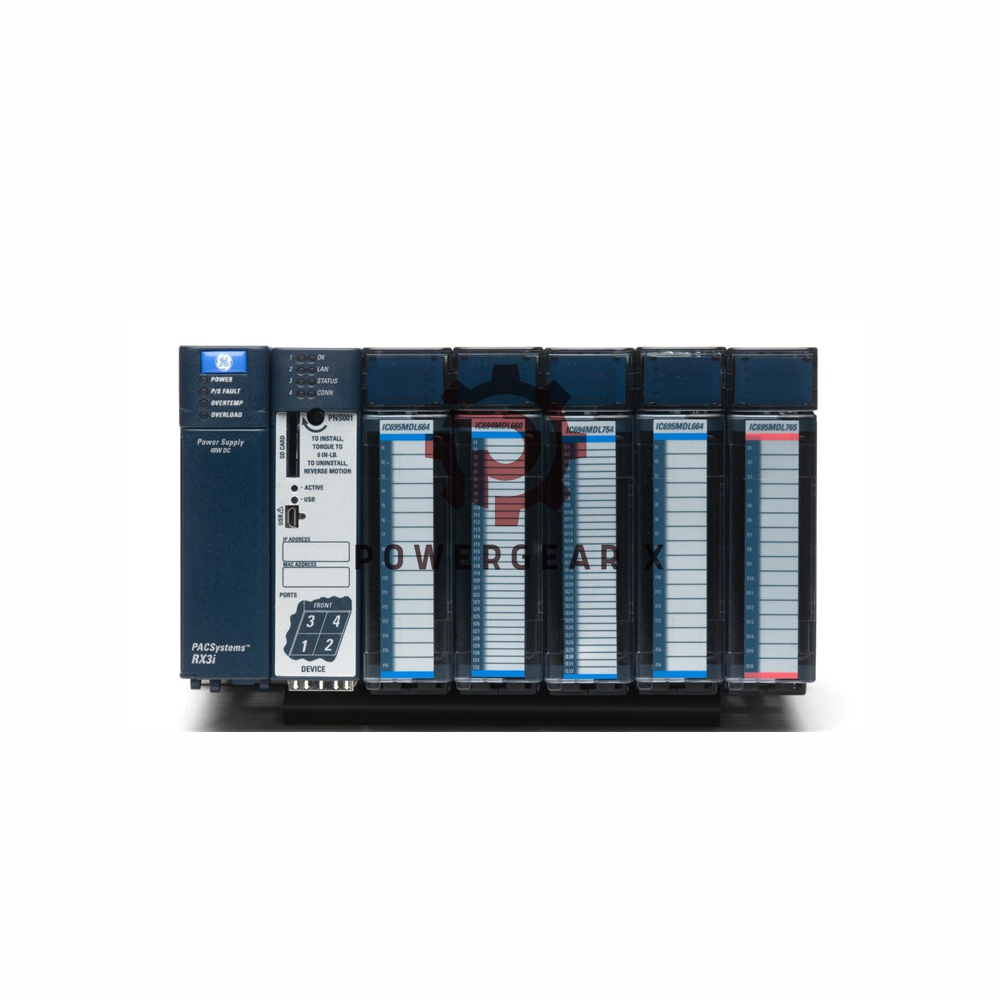

GE Fanuc IC695MDL765 Smart Discrete Output Module

Overview

The GE Fanuc IC695MDL765 is a smart digital output module designed for the PACSystem RX3i series. Manufactured originally by GE Intelligent Platforms and now under Emerson Automation, this module supports a wide range of industrial automation applications. With advanced protection features and high current capacity, it ensures reliable and efficient operation in demanding environments.

Features

• High Capacity Outputs: Supports up to 16 discrete outputs (2 isolated groups of 8).
• Wide Voltage Compatibility: Nominal output voltage ranges include 24 VDC and 125 VDC.
• Robust Output Protection: Includes over-temperature, overload detection, failed switch detection, and no-load detection.
• Fast Response Time: Maximum response time of 1 ms for both on and off states.
• Output Test Capability: Built-in support for output testing enhances maintenance efficiency.
• Isolation: Group-to-group isolation rated at 250 V AC/1500 V AC ensures operational safety.
• Compact Power Consumption: Requires 152 mA at 3.3 VDC and 540 mA at 5.1 VDC.

Technical Specifications

• Brand: GE Intelligent Platforms / Emerson Automation
• Model: IC695MDL765
• Series: PACSystem RX3i
• Catalog: IC695
• Product Type: Smart Digital Output Module
• Number of Channels: 16 (2 groups of 8, isolated)
• Output Voltage Range: 18–30 VDC / 105–132 VDC
• Output Current: 2 A per point; 8 A per group; 16 A per module
• Peak Inrush Current: 10 A (10 ms) without ESCP trip
• Response Time: Maximum 1 ms (on/off)
• Isolation Voltage: 250 V AC / 1500 V AC
• Output Protection: Includes multiple safeguards such as over-temperature and failed switch detection
• Power Consumption: 540 mA at 5.1 VDC, 152 mA at 3.3 VDC

Application

The IC695MDL765 is ideal for applications requiring:

• Reliable discrete output control in industrial automation systems.
• Robust protection for mission-critical environments.
• High current handling with fast response times.

FAQ

Q1: Is this module compatible with both 24 VDC and 125 VDC systems?

• Yes, it supports nominal voltages of 24 VDC and 125 VDC.

Q2: Can the module handle high inrush currents?

• Yes, it can handle up to 10 A for 10 ms without triggering ESCP.

Q3: What output protections are included?

• The module offers safeguards such as overload, over-temperature, and failed switch detection.

Q4: What industries can benefit from this module?

• Manufacturing, energy, transportation, and other industries requiring reliable digital output solutions.

For more detailed information, please check official datasheet. GE Fanuc IC695MDL765
