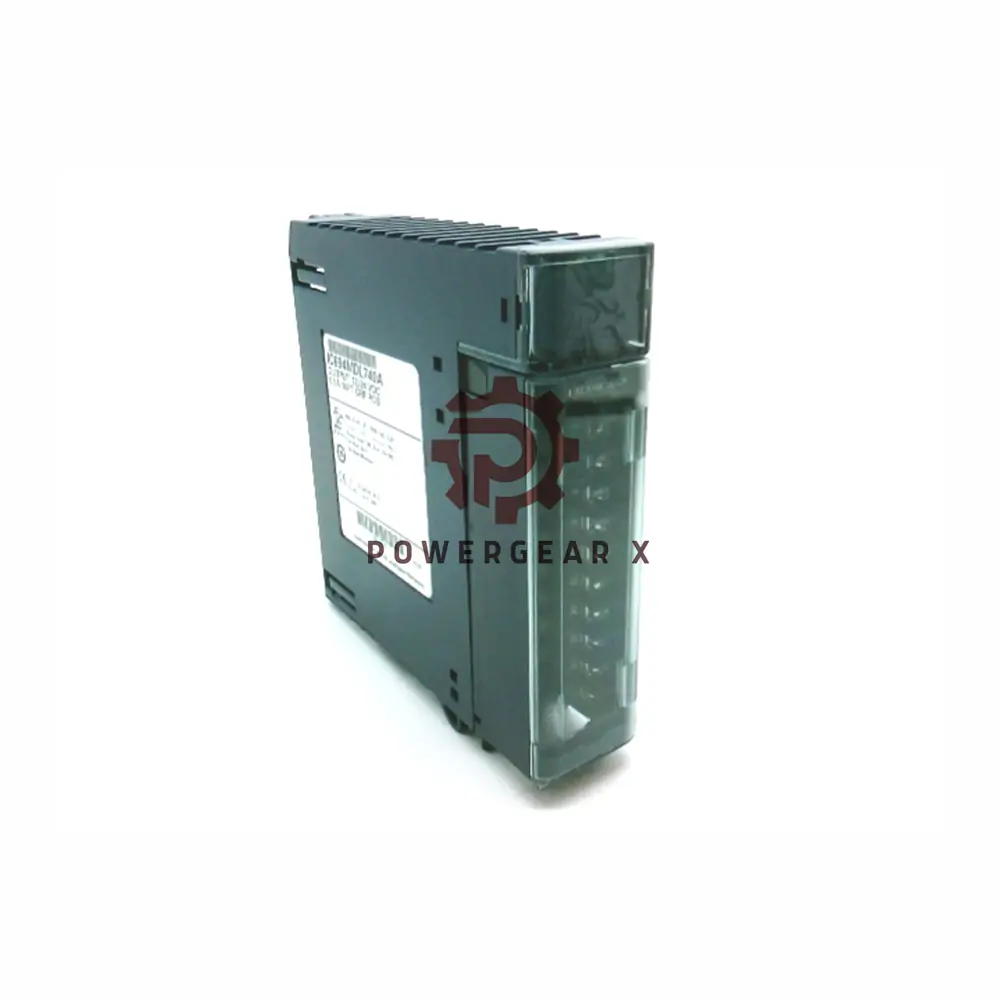

GE Fanuc IC694MDL632 RX3i 125V DC Input Module

Product Summary

The IC694MDL632 is a DC input module from the GE RX3i PACSystem series. It supports both positive and negative logic. It handles up to 150V DC and includes 8 input points in 2 groups. It is made for high-voltage DC signals in industrial control.

Main Technical Specs

• Model: IC694MDL632
• Rated Voltage: 125V DC (positive or negative logic)
• Input Voltage Range: 0 to 150V DC
• Inputs: 8 (2 groups of 4)
• Input Current: 4.5 mA typical
• Power Use: 40 mA (5V bus), 36 mA (user supply)
• ON Voltage: 90 to 150V DC
• OFF Voltage: 0 to 30V DC
• ON Current: 3.1 mA
• OFF Current: 1.1 mA
• Response Time: 7 ms (typical ON/OFF)

Environment Ratings

• Work Temp: 0 to 60°C (32 to 140°F)
• Storage Temp: -40 to 85°C (-40 to 185°F)
• Humidity: 5% to 95% (non-condensing)

Package Includes

• 1 x IC694MDL632 Input Module
• No certificate included
• 12-month warranty

Shipping Options

• FedEx
• UPS
• DHL

Why Choose This Module

• Simple 8-point input layout
• Safe operation at high voltage
• Reliable for long use in tough areas
• Backed by trusted GE technology
