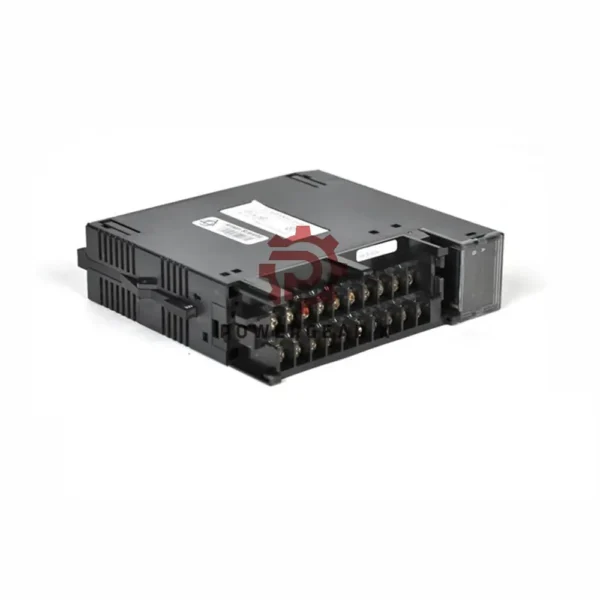

GE Fanuc IC693MDL930 Series 90-30 AC Output Module

IC693MDL930 Series 90-30 Relay Output Module

Key Technical Data

• Output Type: 8 Form A (Normally Open) relays
• Voltage Range: 5 to 30 VDC / 5 to 250 VAC
• Nominal Voltage: 24 VDC / 120-240 VAC
• Output Current: 4 A max per point (resistive), 2 A pilot duty
• Module Current Draw: 6 mA at 5 VDC, 70 mA at 24 VDC
• Inrush Current: 5 A max
• Minimum Load: 10 mA
• Switching Rate: 20 operations per minute
• Response Time: Max 15 ms (On/Off)
• Field to Logic Isolation: 1500 V
• Channel Isolation: 500 V between outputs
• Operating Temperature: 0 to 50°C
• Module Width: Single-slot
• Status LEDs: Yes, per output

Installation Guide

The IC693MDL930 fits into any available slot in a 5-slot or 10-slot baseplate. It connects to the Series 90-30 or RX3i and RX7i systems. Each output has its own common terminal and is fully isolated from the others. Use user-supplied power for the output loads.

Operational Benefits

• Isolated Outputs: Safe for mixed voltage use
• Flexible Voltage: Operates on a wide voltage range (5 to 250 VAC)
• Quick Visual Check: LED indicators show relay status
• Durable Design: Relay contacts rated for industrial switching

Included in Package

• IC693MDL930 Relay Output Module
• Quick Start Guide
• Mounting hardware

Shipping and Warranty

Ships via FedEx, UPS, or DHL. Includes a 12-month warranty. 24-hour technical support is available to help with setup or troubleshooting.
