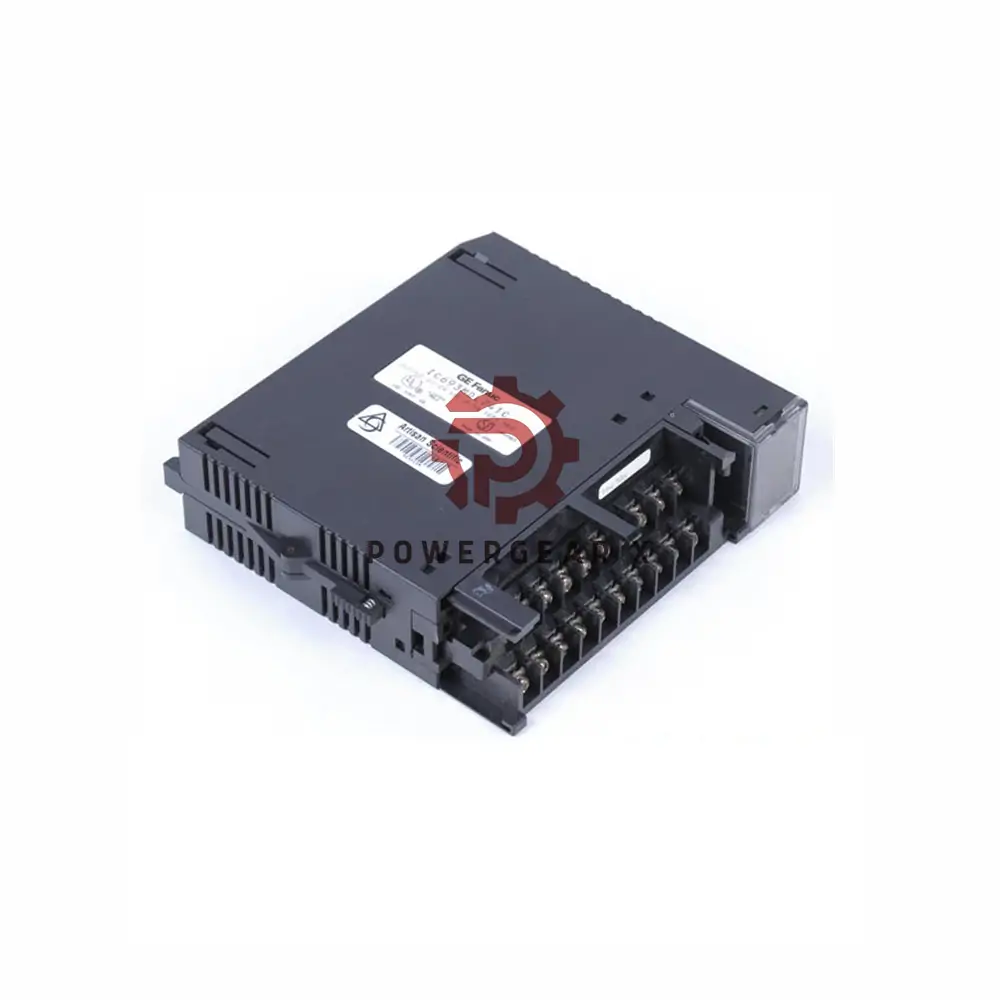

GE Fanuc IC693MDL752 Series 90-30 AC Output Module

GE Fanuc IC693MDL752 32-Point TTL/24VDC Negative Logic Output Module

Product Summary

The IC693MDL752 is a 32-point negative logic output module from the GE Fanuc Series 90-30 family. It supports dual-mode output: TTL (5VDC) and 12/24VDC. Each of the 4 output groups can be configured separately for flexible use in different systems.

Technical Specifications

• Output Points: 32 (4 groups of 8)
• Output Modes: TTL and 12/24VDC (selectable per group)
• Voltage Range (TTL): 4.75 to 5.25 VDC
• Voltage Range (12/24VDC): 10.2 to 28.8 VDC
• Nominal Voltages: 5 VDC (TTL), 12/24 VDC
• Current Output (TTL): 0.025 A per point
• Current Output (12/24VDC): 0.5 A per point, 3 A per group, 4 A total
• Output Voltage Drop: 0.3 V max
• Off-State Leakage: 1 mA max
• On/Off Response Time: Max 0.5 ms
• Max Inrush Current: 4.6 A for 20 ms
• Module Current Draw: 260 mA max from backplane
• User Supply Current: Up to 44 mA per group at 24 VDC

Environmental Ratings

• Field to Logic Isolation: 1500 V
• Group to Group Isolation: 250 V
• Humidity: 5 to 95% non-condensing
• Operating Temperature: 0 to 60°C

Installation Guide

• Mounts to any Series 90-30 PLC baseplate
• Uses two 24-pin connectors for wiring
• Supports direct wiring using IC693CBL327/328 cables
• Supports TBQC method with terminal block quick connect

Pain Point Solution

• Solves dual-voltage system integration problems
• LED indicators help quick troubleshooting
• Protects circuits with opto-isolation and pull-up resistors

Packaging Includes

• 1 x IC693MDL752 module
• Protective anti-static packaging
• 12-month replacement warranty
• No certificate or manual included
