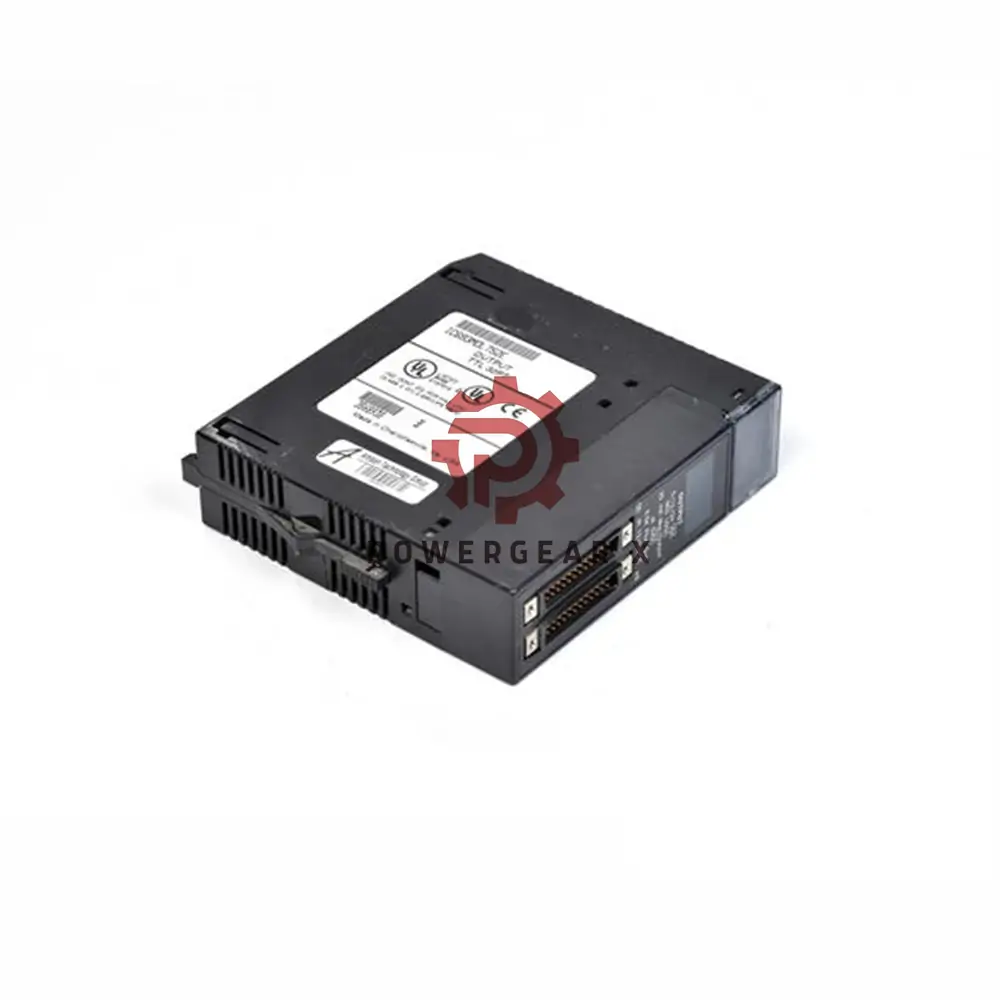

GE Fanuc IC693MDL748 RX3i PACSystem AC Output Module

GE Fanuc IC693MDL748 8-Point 24-48VDC Positive Logic Output Module

Overview

The IC693MDL748 is an 8-point digital output module for GE Fanuc 90-30 PLCs. It uses 24 to 48 VDC and positive logic with transistor-type output. Ideal for driving DC loads like relays, solenoids, and indicator lights. Built-in fuses and terminal block are included.

Key Technical Details

• Output Points: 8
• Voltage Range: 24 to 48 VDC
• Logic Type: Positive
• Output Type: Transistor
• Current Per Point: 0.5 Amps
• Module Current Draw: 110 mA at 50 VDC
• Voltage Input: 5 VDC

Fusing and Protection

• Fuses: 2 (5 x 20 mm size)
• Fuse Rating: 3.15 Amps
• Replacement Fuses: Littelfuse 2173.15 or Bussmann GDB-3.15A

Environmental Ratings

• Operating Temp: 0 to 60°C at 50 VDC
• Operating Temp: 0 to 50°C at 60 VDC
• Humidity Range: 5% to 95% (non-condensing)

Installation Guide

• Mounts in any I/O slot of Series 90-30 baseplate
• Uses 20-screw terminal block (included)
• Holding screws protect connections from vibration
• Torque for screws: 8–10 lb-in
