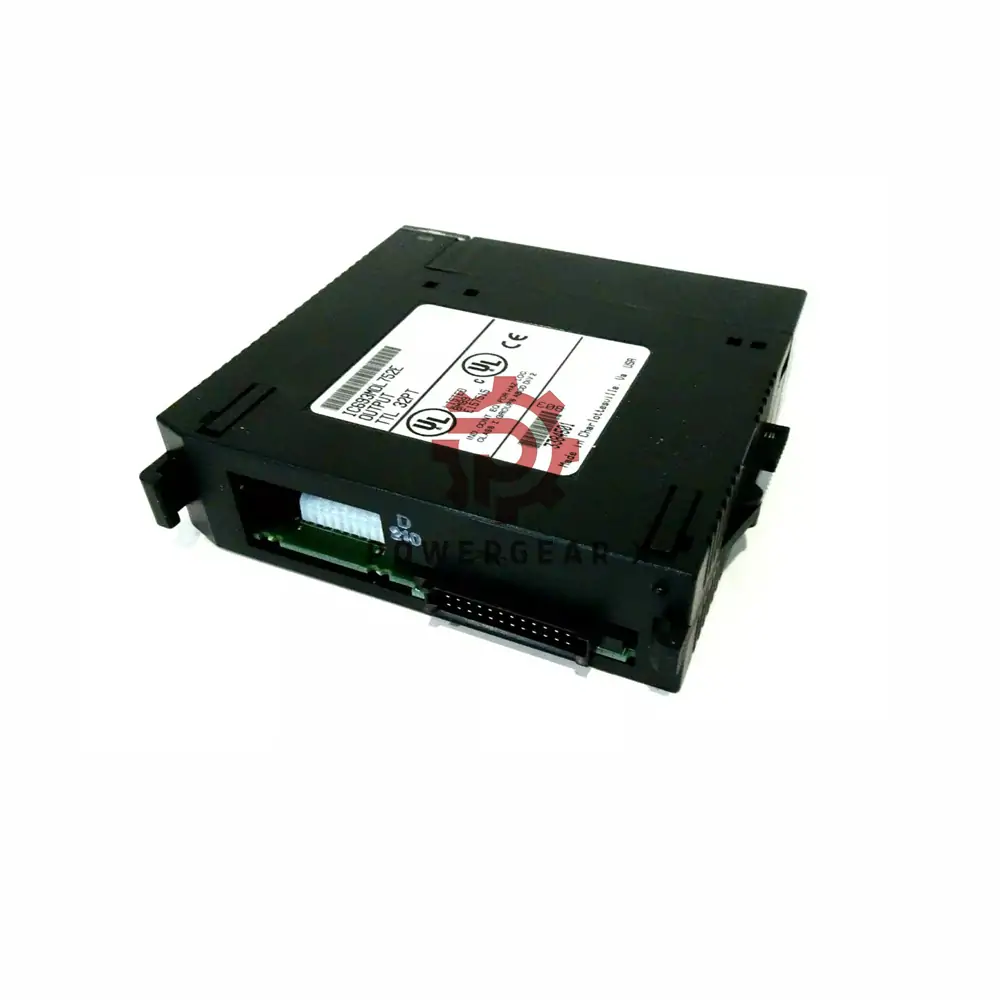

GE Fanuc IC693MDL740 Series 90-30 AC Output Module

IC693MDL740 GE Fanuc 16-Point Positive Logic Output Module

Product Overview

The IC693MDL740 is a GE Fanuc Series 90-30 PLC module with 16 sourcing output points. It works with 12 to 24 Volts DC and delivers up to 0.5 Amps per channel. Designed with positive logic, it powers devices like relays, lamps, solenoids, and motor starters. Each group of 8 outputs shares a common terminal. The module is easy to use in 5-slot or 10-slot baseplates.

Key Technical Specifications

• Output Channels: 16 sourcing (2 groups of 8)
• Voltage Range: 12 to 24 VDC (+20%, –15%)
• Nominal Voltage: 12/24 VDC
• Max Current per Channel: 0.5 Amps
• Max Output Current per Group: 2 Amps for 10 ms
• Inrush Current: 4.78 Amps (10 ms)
• Output Voltage Drop: Max 1 V
• Off-State Leakage: Max 1 mA
• Response Time: 2 ms (ON and OFF)
• Power Draw: 110 mA at 5 VDC
• Isolation: 1500 Volts (field to logic)
• Operating Temp: 0 to 60°C
• Storage Temp: -40 to 85°C
• Humidity: 5% to 95% (non-condensing)

Installation Guide

• Mounts in any slot of Series 90-30 5-slot or 10-slot baseplates
• Connect outputs to loads through external fuses (fuses not included)
• Connect load between output terminal and system negative
• Ensure 5 VDC supply from PLC backplane

Use Cases in Industry

• Control of contactors and motors in automation panels
• Triggering alarm devices like horns or buzzers
• Lighting indicators in process plants
• Solenoid activation in valve systems

Package Contents

• 1 x IC693MDL740 Output Module
• Basic install guide
• No certificates included

Shipping and Warranty

• 12-month warranty from date of delivery
• Ships via FedEx, UPS, or DHL
• Secure packaging for long-distance transport
