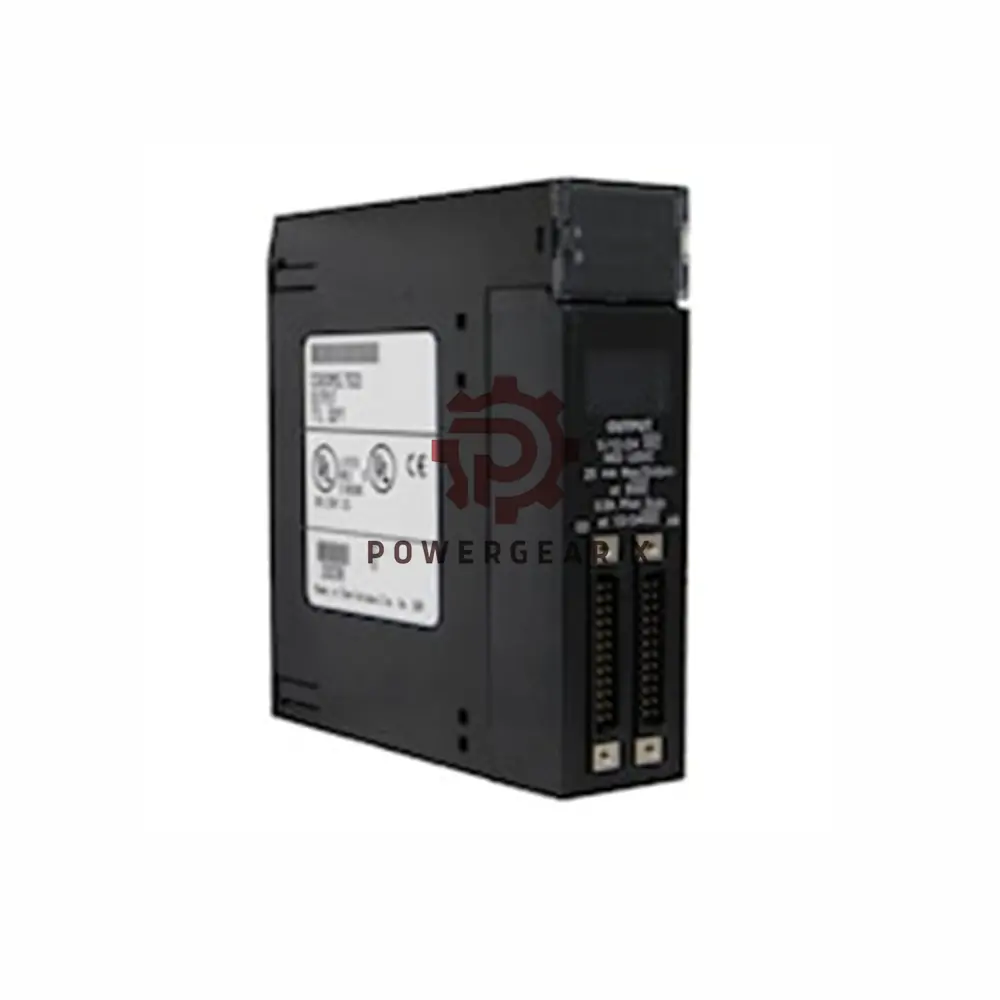

GE Fanuc IC693MDL390 Series 90-30 AC Output Module

GE Fanuc IC693MDL390 Isolated Output Module | Series 90-30

Overview

The IC693MDL390 is a discontinued output module from the GE Fanuc Series 90-30 PLC range, now under Emerson Automation. It includes five isolated AC output channels suitable for controlling high-voltage devices in industrial environments.

Key Technical Specifications

• Output Channels: 5 individually isolated
• Output Voltage Range: 85 to 264 VAC (50/60 Hz)
• Nominal Voltages: 120 VAC / 240 VAC
• Output Current Per Point: 2 A
• Max Output Current per Module: 5 A at 45°C, 2 A at 60°C
• Max Inrush Current: 25 A for 1 cycle
• Minimum Load: 100 mA
• Output Voltage Drop: 1.5 V max
• Leakage Current: 3 mA at 120 VAC, 6 mA at 240 VAC
• Response Time ON: 1 ms
• Response Time OFF: ½ cycle
• Backplane Current Draw: 110 mA (fully loaded)
• Isolation: 1500 V (field to logic), 500 V (channel to channel)

Real-World Applications

• Controlling AC solenoids and valves in automated factories
• Reliable switching for high-voltage industrial relays
• Useful in water treatment plants for managing pumps
• Heavy-duty HVAC systems in industrial buildings

Compatibility Notice

• Compatible only with GE Fanuc Series 90-30 PLCs
• Not usable with PACSystems RX3i controllers

Warranty and Shipping

• 12-month warranty from date of purchase
• Ships via FedEx, UPS, or DHL
• Standard packaging without documentation or certificate
