GE Fanuc IC693CBL310 | I/O Bus Expansion Cables Series 90-30

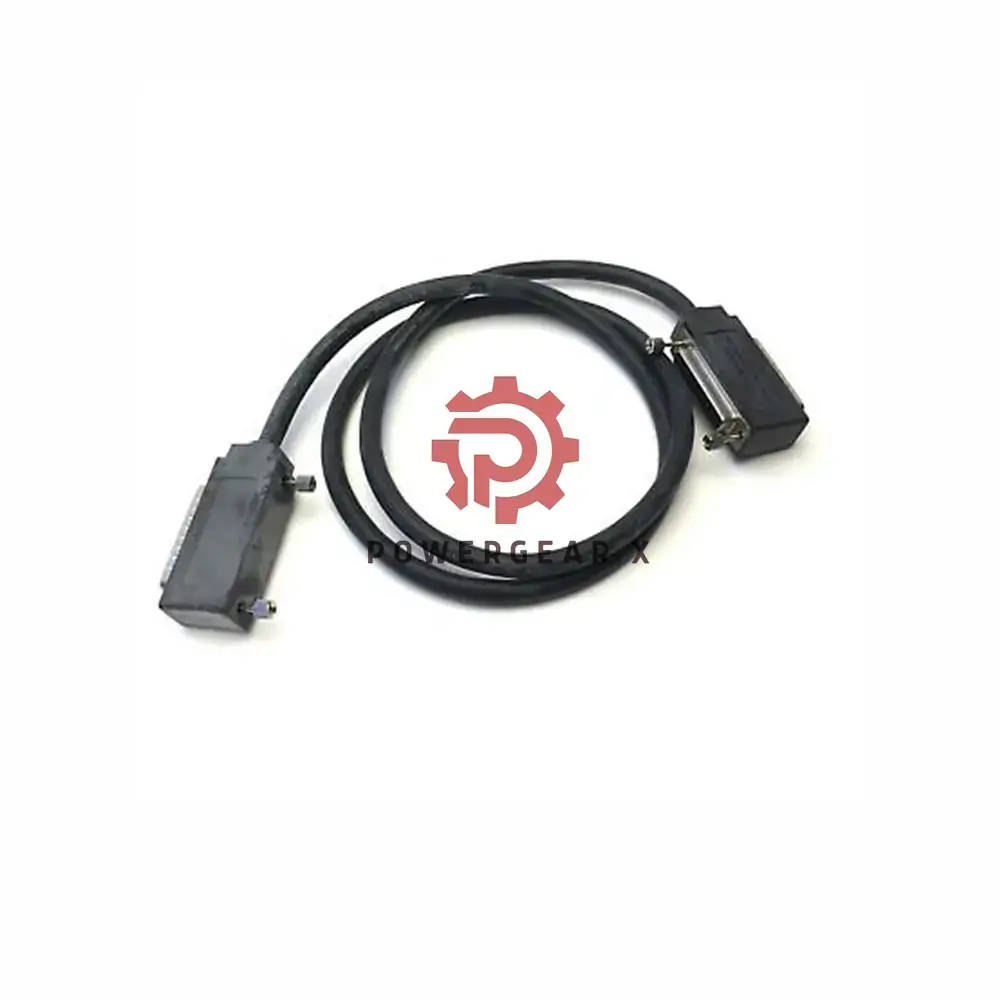

GE Fanuc IC693CBL310 I/O Interface Cable Kit

Complete wiring solution for Series 90-30 32-point modules. Kit includes two shielded cables with color-coded wiring for fast, error-free installations.

KEY FEATURES

• 2× shielded cables (10ft each)
• Fujitsu 24-pin connector
• Pre-tinned color-coded wires (A1-B12)
• Discontinued product – limited stock

TECHNICAL DATA

• Brand: GE Fanuc
• Model: IC693CBL310 (Full Suffix)
• Cable Length: 3.05m (10ft) per cable
• Wire Gauge: 28 AWG copper
• Shielding: EMI/RFI protection
• Connector: Fujitsu FCN-365S024-AU
• Weight: 2.0 lbs (0.9kg)
• Max Voltage: 300V AC/DC
• Temp Range: -20°C to 75°C

REAL-WORLD APPLICATIONS

• Automated conveyor control with IC693MDL655 modules
• Packaging machine sensor networks using MDL753
• Factory safety interlock systems with IC610MDL310

COMPATIBLE MODULES

IC693MDL654, 655, 752, 753 • IC610MDL102, 152, 105, 310 • MDL752, MDL753

Not compatible with Axis Positioning Modules (APMs)

INSTALLATION GUIDE

1. Match color-coded wires to terminal blocks
2. Connect 24-pin end to module
3. Secure Fujitsu connector
4. Use included wiring guide

PACKAGE CONTENTS

• 2× IC693CBL310 interface cables
• 1× Fujitsu 24-pin connector
• Wiring guide sheet
• 12-month warranty

SHIPPING

FedEx • UPS • DHL • Global tracked delivery

FAQ

Q: Why two cables?
A: Most 32-point modules require dual connections.

Q: Can I use single cable?
A: Yes for smaller modules like IC610MDL105.

Q: Water-resistant?
A: For dry locations only – not waterproof.
