GE Fanuc I/O Bus Expansion Cables | Series 90-30 IC693CBL325

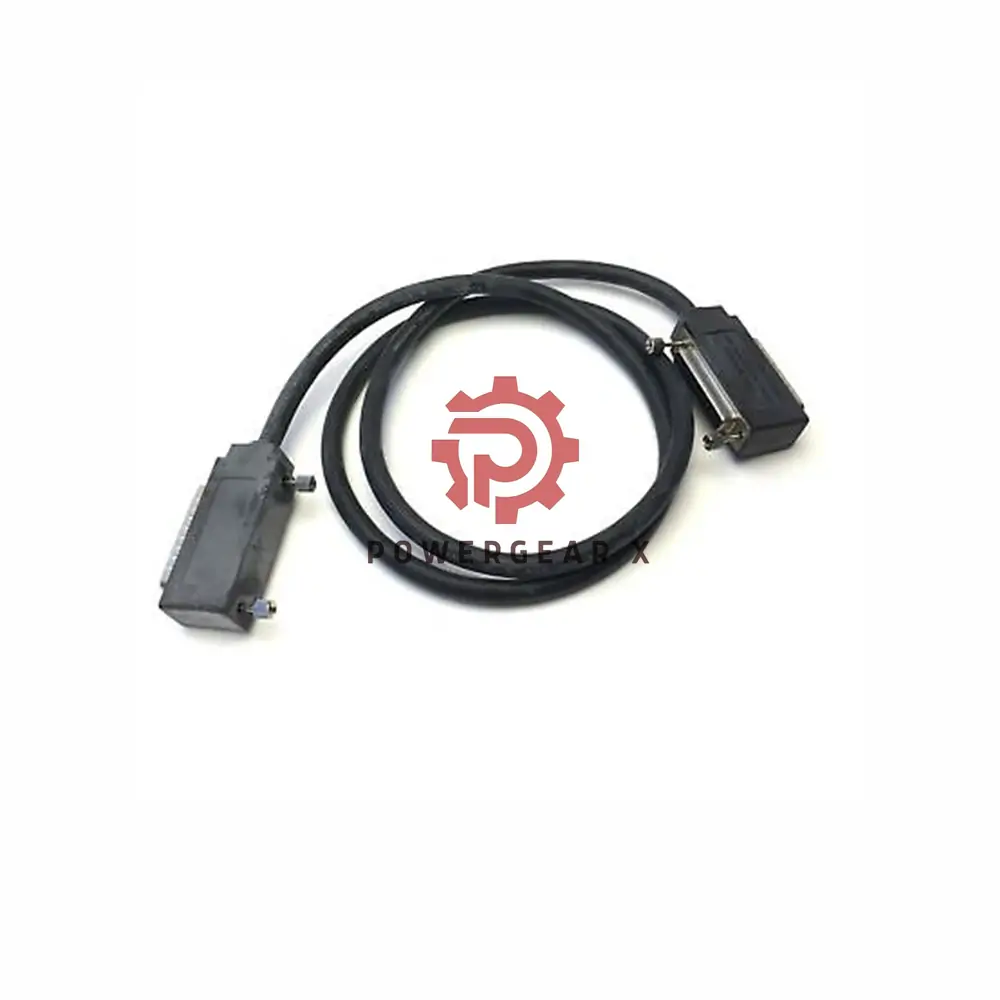

GE Fanuc IC693CBL325 Terminal Board Interface Cable

Cable Purpose

Connect DSM modules to servo terminals in Series 90-30 PLCs. 10ft shielded cable ensures reliable signal transfer for precision motion control.

Technical Specifications

• Brand: GE Fanuc Automation
• Model: IC693CBL325 (Full suffix)
• Length: 10 feet (3 meters)
• Connectors: Dual 36-pin (male/female)
• Wire Gauge: 28 AWG shielded
• Voltage Rating: 50V AC/DC max
• Current Capacity: 1.5A per pin
• Temp Range: -25°C to 85°C
• Signal Integrity: >90dB noise rejection

Installation Guide

1. Plug one end into DSM module (Axis 1/2 port)
2. Connect opposite end to IC693ACC335 terminal board
3. Secure with locking screws
4. Ground shield at terminal board

Compatible Systems

For IC693DSM302/DSM314 modules and IC693ACC335 terminal boards. Alternative: IC693CBL324 (1m).

Package Contents

• IC693CBL325 Cable (10ft)
• 36-pin connector caps (pair)
• Installation guide

Warranty & Shipping

12-month performance warranty. Ships worldwide via FedEx/UPS/DHL. Tracking included.

Common Questions

Q: Maximum supported axes?
A: Two axes per cable (DSM314 supports 4 axes)

Q: Replacement for shorter runs?
A: Use IC693CBL324 (3.3ft) cable

Q: Can I extend this cable?
A: No – use IC693CBL326 (50ft) for longer distances
