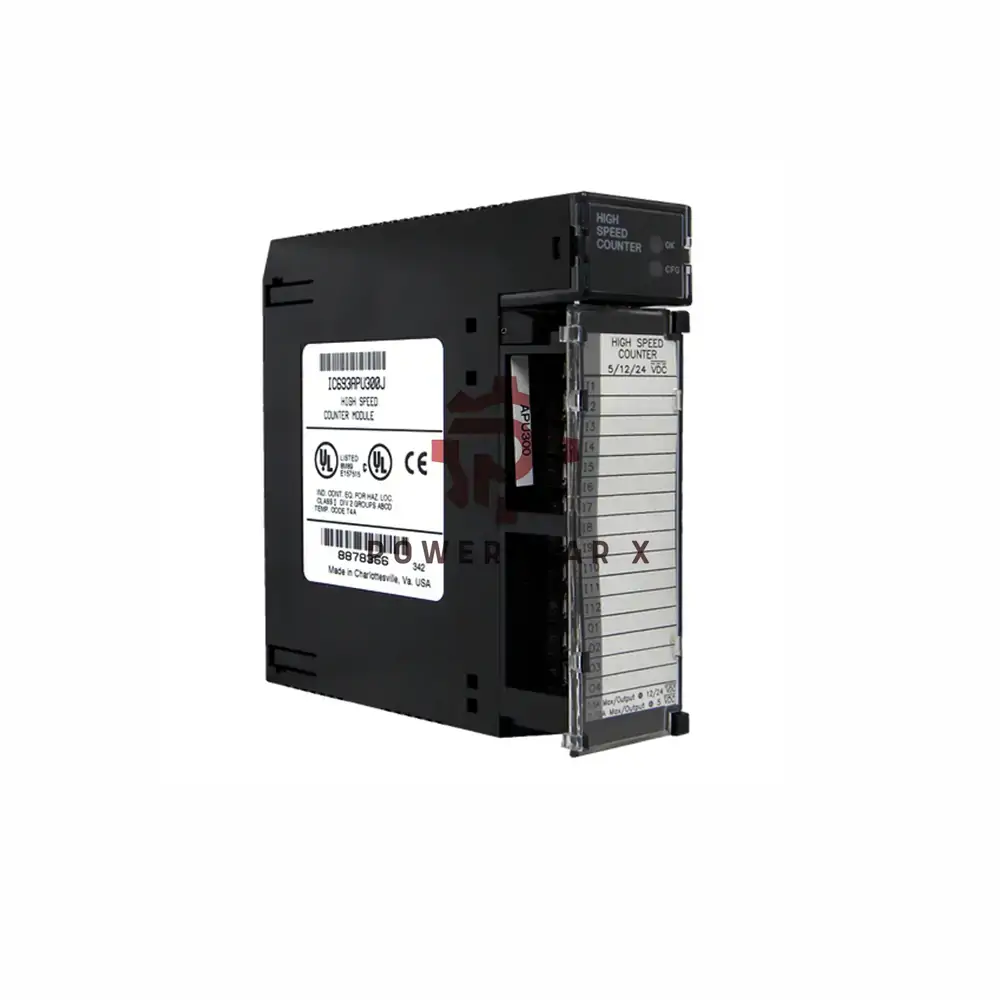

GE Fanuc High-Speed Counter Module IC693APU300

IC693APU300 High-Speed Counter Module

Discontinued GE Fanuc (now Emerson) module for Series 90-30 PLC systems. Handles rapid pulse counting up to 200 kHz for industrial automation. Ideal for motion control, flow metering, and high-speed processes.

Key Features

• 12 positive logic inputs (5VDC or 10-30VDC)
• 4 configurable outputs (10-30VDC@500mA or 4.75-6VDC@20mA)
• Up/down/bi-directional counting modes
• Dual LED status indicators (BOARD OK/CONFIG OK)
• Removable terminal board for easy wiring

Technical Specifications

• Brand: GE Fanuc (Emerson)
• Model: IC693APU300 (Series 90-30)
• Input Voltage: 5VDC or 10-30VDC
• Count Rate: 200 kHz max, 20 kHz min
• Output Protection: 3A fuses + short-circuit protection
• Isolation: 250V AC
• Power: 5VDC backplane (250mA)

Installation Notes

• Fits any Series 90-30 PLC baseplate slot
• Requires full PLC shutdown for installation/removal
• Not tool-accessible enclosure compliant

Compatibility

• GE Series 90-30 PLC systems
• Logicmaster 90-30/20, VersaPro software

Package Includes

• IC693APU300 module
• 12-month warranty
• Shipping: FedEx, UPS, DHL options

FAQs

• Q: Still in production?
  A: Discontinued but available as NOS
• Q: Compatible with 24V sensors?
  A: Yes, supports 10-30VDC inputs
• Q: External power needed?
  A: Outputs require user-supplied 5-30VDC
