Product details

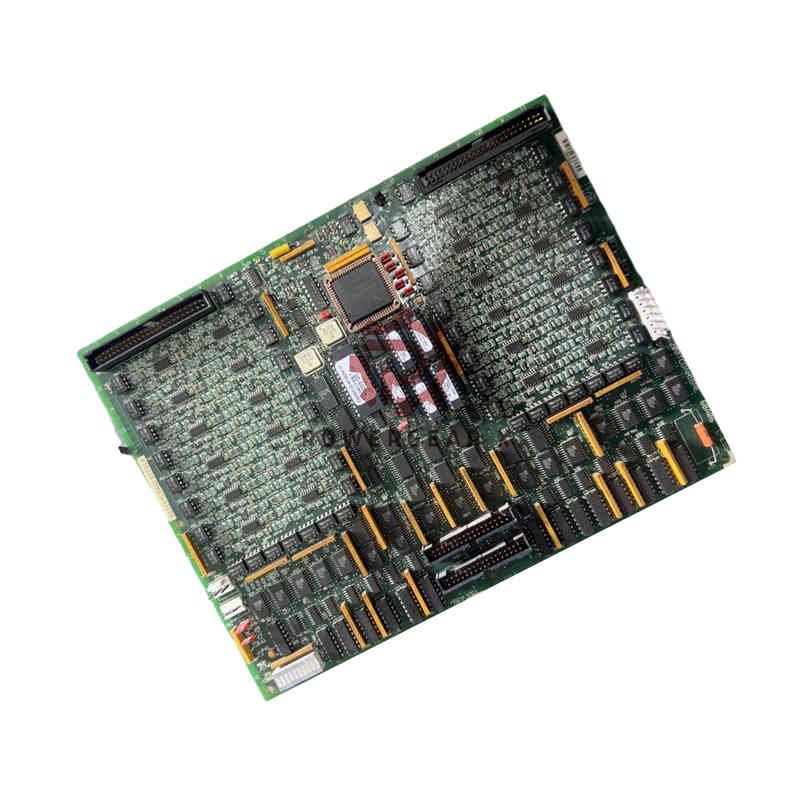

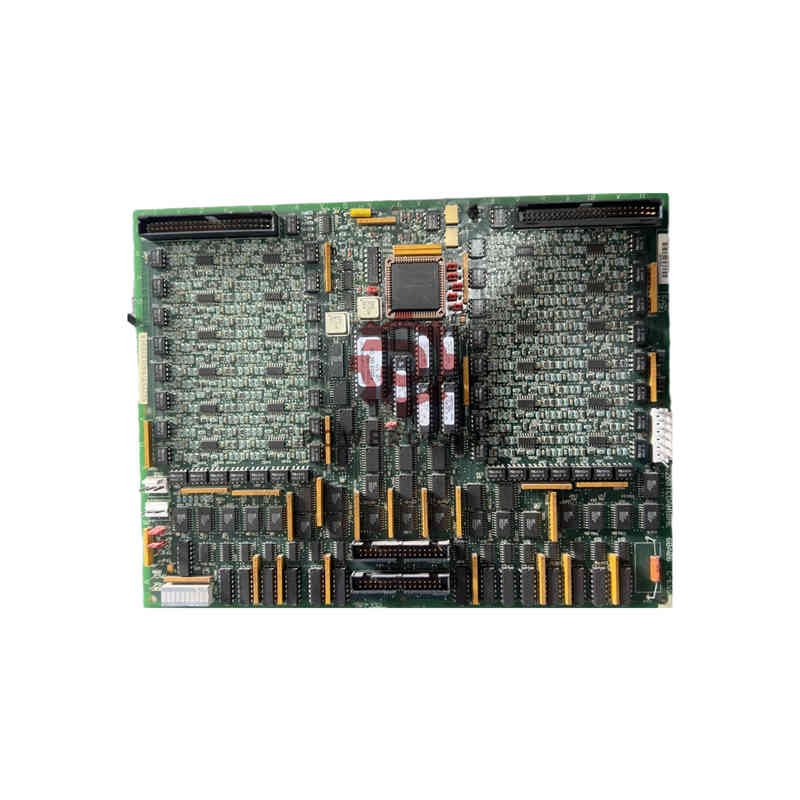

DS215TCDAG1BZZ01A Digital I/O Board
The DS215TCDAG1BZZ01A by General Electric is a digital I/O board for Mark V control systems. It processes contact input and output signals with built-in firmware. This board supports turbine control operations with reliable performance.
Core Technical Specifications
- Manufacturer: General Electric
- Model: DS215TCDAG1BZZ01A
- Series: Mark V Speedtronic
- Product Type: Digital I/O Board with Firmware
- Function: Signal Processing and I/O Control
- Firmware Version: ZZ01A Optional Package
- Revision Level: B Rating
- Manual Reference: GEH-6195
- Country of Origin: United States
- Mounting Locations: Q11, Q51, Q21 Digital I/O Cores
- Signal Processing: Digital Contact Input/Output
- Communication: IONET Connectivity
Connector Functions
- JP Connector: Power distribution from TCPS board
- JQ Connector: Contact input signals from DTBA board
- JR Connector: Contact input signals from DTBB board
- JO1/JO2 Connectors: Contact output to TCRA boards
- JX1/JX2 Connectors: IONET signal transmission
- All connectors: Designed for secure industrial use
Configuration Options
- Eight hardware jumpers for various settings
- J2/J3 for IONET termination resistance
- J4/J5/J6 for board IONET ID configuration
- J7 controls stall timer functionality
- Software configuration via HMI I/O Editor
- Contact input inversion through software
- SDCC control circuits for drive operations
System Integration
- Compatible with Mark V Speedtronic systems
- Works with DTBA and DTBB terminal boards
- Integrates with TCQC and CTBA boards
- Supports R1, R2, R5 core configurations
- IONET network connectivity
- Q11, Q51, Q21 digital I/O core placement
Quality & Warranty
- 12-month comprehensive warranty
- Original GE manufacturing quality
- Rigorous testing before shipment
- B-rated revision ensures reliability
- Optional firmware package included
- Technical documentation available
Shipping Information
- Fast worldwide shipping via FedEx, UPS, DHL
- In stock for immediate delivery
- Secure packaging for protection
- Tracking provided for all orders
- International shipping available
Technical FAQs
- What is the main function of this board?
The DS215TCDAG1BZZ01A processes digital contact signals between terminal boards and control systems.
- Where is this board typically installed?
It mounts in digital I/O cores Q11, Q51, and Q21 within Mark V control systems.
- What does the ZZ01A firmware provide?
The ZZ01A is an optional firmware package that enhances board functionality.
- How many connectors does the board have?
It features multiple connectors including JP, JQ, JR, JO1, JO2, JX1, and JX2.
- What systems is this board compatible with?
It’s designed specifically for General Electric Mark V Speedtronic control systems.
Ordering & Support
- Product ready for immediate shipment
- Complete technical support available
- Competitive pricing options
- Bulk order discounts offered
