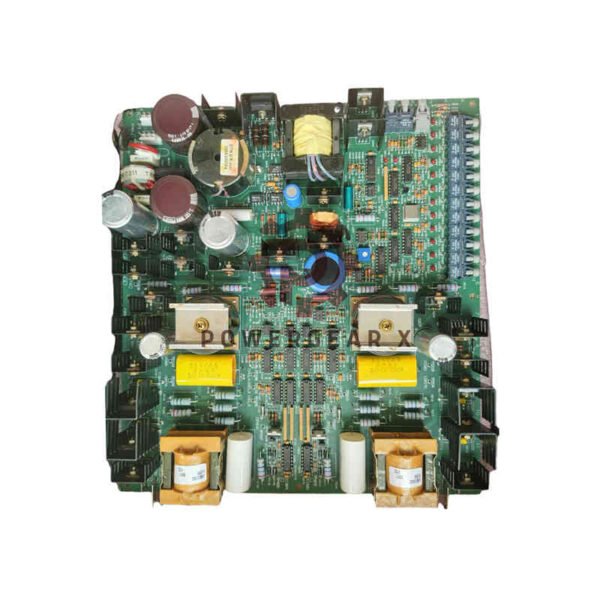

GE Mark V DS200FGPAG1A Gate Pulse Amplifier Board
The DS200FGPAG1A delivers precise gate pulse amplification for LS2100 and Mark V control systems. This advanced board features fiber-optic communication and robust SCR monitoring capabilities. It ensures reliable operation in demanding industrial environments.
Technical Specifications
- Manufacturer: General Electric Energy
- Model Number: DS200FGPAG1A
- Common Revisions: DS200FGPAG1AMD, DS200FGPAG1AKD, DS200FGPAG1AHD, DS200FGPAG1AFC
- Product Series: LS2100 / Mark V
- Board Type: Gate Pulse Amplifier Board
- Input Voltage: 120 VRMS
- Maximum Power: 350 VA
- Converter Voltage: 2080VAC or 3300VAC
- Test Points: 30 total (9 Gate A, 9 Gate B, 12 Cell Status)
- Fiber-Optic Ports: 15 total (1 transmitter, 14 receivers)
- Gate Driver Circuits: 2 independent channels
- Network Support: Simplex and Duplex fiber-optic configurations
- Compatibility: Not backward compatible
- Manual Reference: GEI-100223
- Warranty: 12 Months Full Protection
- Shipping: FedEx, UPS, DHL Express Worldwide
Primary Functions
- SCR status monitoring and diagnostics
- Gate pulse amplification and control
- Switching power supply operation
- AC to DC control voltage conversion
- Three-phase bridge power delivery
Fiber-Optic Advantages
- Immunity to electrical interference
- Long-distance signal transmission
- Compatible with power cable routing
- Support for repeater extension (up to 2 repeaters)
- Configurable signal power adjustment
Installation Guidelines
- Handle with anti-static precautions
- Maintain proper fiber-optic bend radius
- Verify voltage requirements before installation
- Follow manufacturer’s static protection procedures
- Store in protective container until installation
Technical Questions Answered
- What voltage inputs does this board support?
- The DS200FGPAG1A operates with 120 VRMS input and supports 2080VAC or 3300VAC converter systems.
- How many fiber-optic ports are available?
- There are 15 fiber-optic ports: 1 transmitter port and 14 receiver ports for flexible networking.
- What is the maximum power handling capacity?
- The board can handle approximately 350 VA maximum power under normal operating conditions.
- Can this board work with older systems?
- No, the DS200FGPAG1A is not backward compatible with previous system versions.
- What protection does the board require during handling?
- Use anti-static precautions and keep the board in its protective container until installation.
