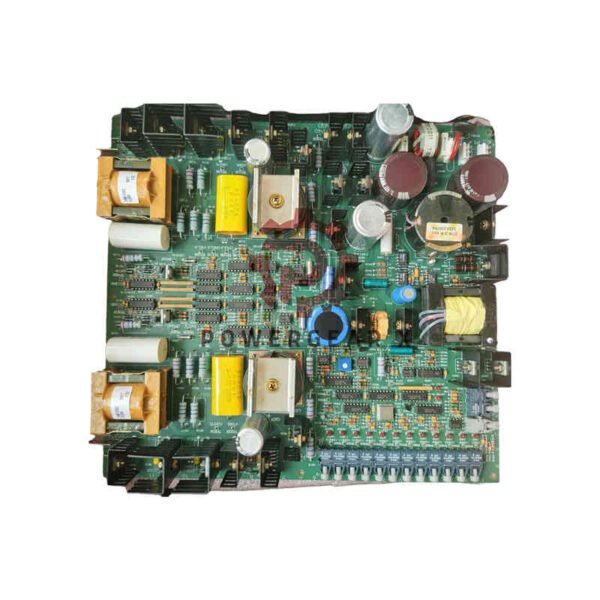

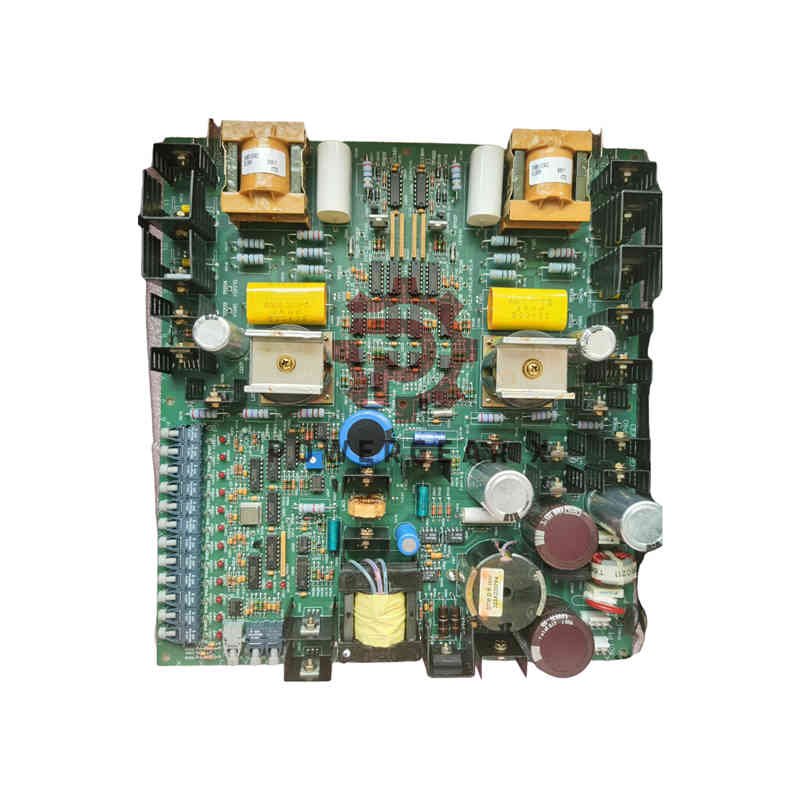

GE DS200FGPAG1A Gate Pulse Amplifier Board for LS2100 Systems

Advanced Gate Pulse Amplifier for Industrial Control

The DS200FGPAG1A by General Electric delivers precision control for LS2100 and Mark V systems. This gate pulse amplifier board ensures reliable SCR operation with advanced fiber optic technology. It provides three essential functions for load commutated inverters with exceptional accuracy.

Core Specifications

• Brand: General Electric (GE Energy)
• Model: DS200FGPAG1A (Multiple Revisions Available)
• Series: LS2100 / Mark V
• Product Type: Gate Pulse Amplifier Board
• Input Voltage: 120 VRMs
• Maximum Voltage: 350 VA
• Converter Voltage: 2080 or 3300 VAC
• Test Points: 30 Total Monitoring Points
• Fiber Optic Ports: 15 (1 Transmitter, 14 Receivers)
• Warranty: 12 Months Full Coverage
• Shipping: FedEx, UPS, DHL Express

Installation Guidelines

• Handle board carefully to avoid static electricity damage
• Keep in protective packaging until installation moment
• Ensure proper bend radius for fiber optic cables
• Verify all test points during commissioning
• Use recommended repeaters for extended cable runs
• Follow GEI-100223 manual for specific instructions

Packaging Information

• One DS200FGPAG1A Gate Pulse Amplifier Board
• Static-protective packaging materials
• Basic installation guidance document
• Optional technical manuals available
• Express worldwide shipping included

Frequently Asked Questions

• What are the primary functions of the DS200FGPAG1A board?

• It performs SCR status monitoring, gate driving, and power supply conversion for LCI systems.

• How many fiber optic ports does this board feature?

• The board includes 15 fiber optic ports with one transmitter and fourteen receivers.

• What voltage inputs does the board support?

• It operates at 120 VRMs input with maximum capacity of 350 VA.

• Can this board be used in existing Mark V systems?

• Yes, it is designed for LS2100 and Mark V series compatibility.

• What protection does the board require during handling?

• It needs protection from static electricity and should remain in packaging until installation.
